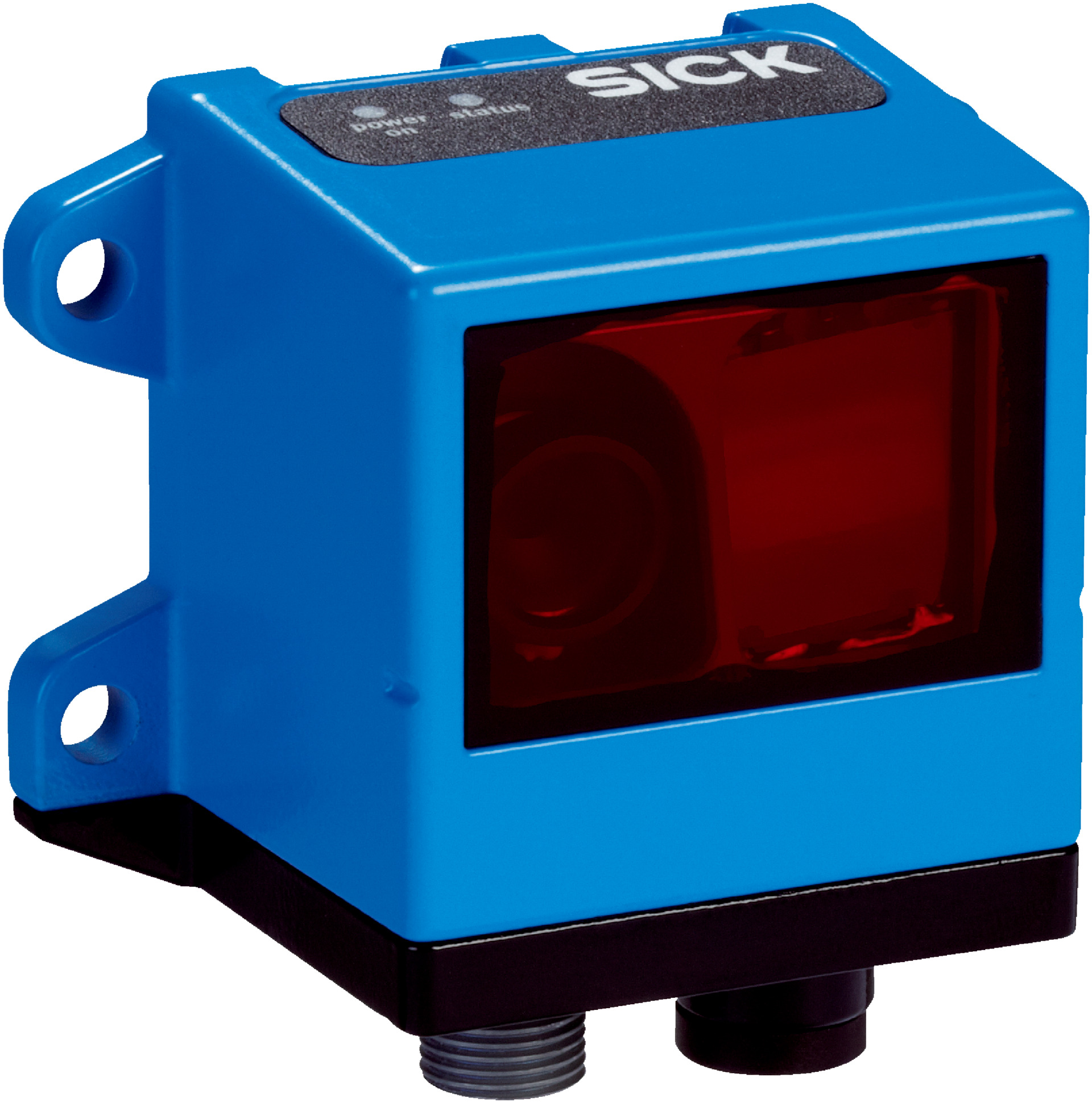

SICK OLM100 Laser Distance Sensor | 0 to 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The SICK OLM100 Laser Distance Sensor offers an impressive measuring range from 0 to 10,000 m with high resolution options of 0.1 mm and 1 mm. Designed for industrial automation, this sensor is perfect for precise distance measurement in quality control, robotics, and material handling systems. With an IP65 rated enclosure, it ensures durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK OLM100 Laser Distance Sensor | 0 to 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1047413
Alternatively Known As: SICK OLM100 Laser Distance Sensor, SICK LED Measurement Sensor, Industrial Distance Sensor OLM100-1006
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm and 1 mm
- Repeatability: 1 mm
- Output time: 1 ms
- Light source: Red LED
- Max movement speed: 4 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- Electromagnetic compatibility: EN 61000-6-2 / EN 61000-6-4
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: ≤ 5,000 lx
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 60mm x 150mm x 120mm
- Weight: 1.5 kg
Key Features
- Measuring range from 0 m to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 1 mm
- Fast output time of 1 ms
- Red LED light source
- Maximum movement speed of 4 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width support of 30 mm
- CANopen interface for easy integration
- IP65 rated enclosure for dust and water resistance
- Wide operating temperature range from -30 °C to +60 °C
- Vibration and shock resistant according to DIN/EN standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control in manufacturing processes
- Robotics and material handling systems
- Barcode reading and identification tasks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty of 12 months against defects in materials and workmanship.
Available Now
The SICK OLM100-1006 LED Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
