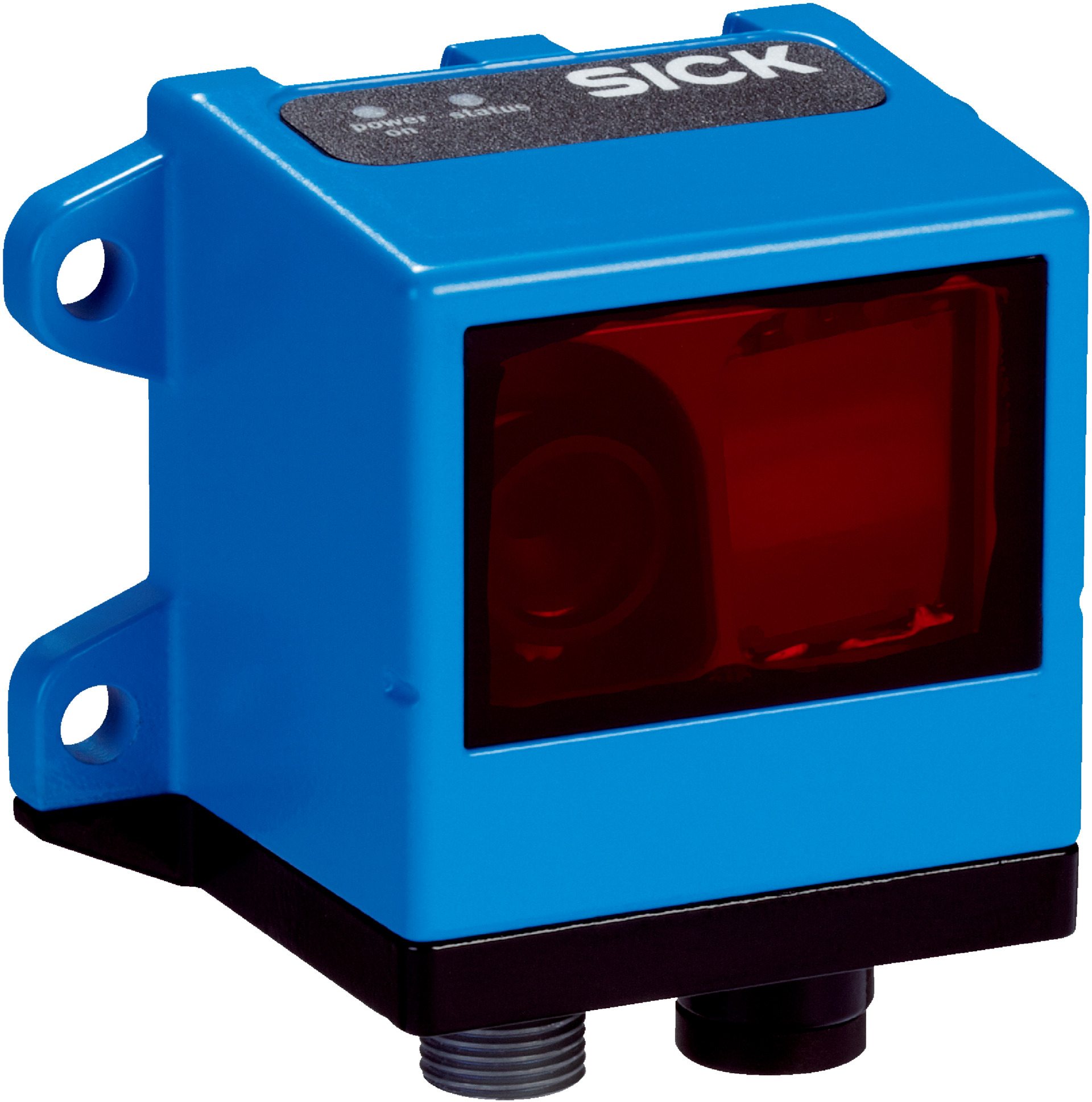

SICK OLM100 Laser Measurement Sensor | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The SICK OLM100 Laser Measurement Sensor offers an impressive measuring range of up to 10,000 m with high resolution options of 0.1 mm and 1 mm. Designed for industrial automation and precision measurement, this sensor features a fast output time of 5 ms and is IP65 rated for dust and water protection, making it ideal for various applications including quality control and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK OLM100 Laser Measurement Sensor | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1054170
Alternatively Known As: SICK OLM100 Laser Measurement Sensor, SICK OLM100 Distance Sensor, SICK LED Measurement Device
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm and 1 mm
- Repeatability: 0.15 mm
- Output time: 5 ms
- Light source: Red LED
- Max movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Serial interface: RS-422
- Supply voltage: DC 10 V to 30 V
- Ripple: ≤ 5 V pp
- Power consumption: < 3 W
- Initialization time: < 3 s
- Enclosure rating: IP65
- Protection class: III
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- EMC: EN 61000-6-2 / EN 61000-6-4
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 60mm x 150mm x 120mm
- Weight: 1.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution of 0.1 mm and 1 mm
- Repeatability of 0.15 mm
- Fast output time of 5 ms
- Red LED light source
- Max movement speed of 7 m/s
- Reading distance of 100 mm ± 20 mm
- Barcode width detection of 30 mm
- IP65 rated enclosure for dust and water protection
- Electromagnetic compatibility compliant with EN 61000-6-2 and EN 61000-6-4
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation and control
- Distance and position measurement
- Quality control and inspection
- Material handling and logistics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 3 W reduces energy usage
- Durable IP65 enclosure extends product life and reduces waste
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty of 12 months against defects.
Available Now
The SICK OLM100-1203 LED Measurement Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
