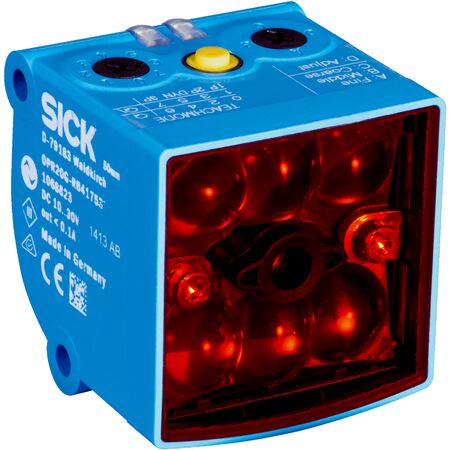

SICK OPR20G Proximity Sensor | Delta-S-Technology | IP67 Rated | 50mm Sensing Distance | by SICK
The SICK OPR20G Proximity Sensor utilizes Delta-S-Technology for reliable object detection, with a sensing distance of up to 50 mm and an IP67 enclosure rating. Ideal for industrial automation and manufacturing process control, this sensor features a fast response time of 1 ms and dual push-pull switching outputs, ensuring efficient operation in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Delta-S-Technology®
- Sensing distance: ≤ 50 mm with ±5 mm tolerance
- Minimum detectable object: 12 x 14 mm
- Light source: LED, Red, 640 nm wavelength
- Light spot size: 10 mm x 12 mm
- Object speed max.: 2 m/s
- Sensitivity: Fine, middle, coarse
- Adjustment methods: Potentiometer, IO-Link, teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: < 150 mA
- Switching frequency: 500 Hz
- Response time: 1 ms
- Number of switching outputs: 2 (Q1, Q2)
- Switching output type: Push-pull PNP/NPN
- Output current max: < 100 mA
- Connection type: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +75°C
- Shock load: Compliant with EN 60068-2-27
- Dimensions (H x L x W): 44mm x 43mm x 43mm
- Weight: 0.13 kg
Key Features
- Delta-S-Technology® sensor principle for reliable detection
- Rectangular housing design with IP67 enclosure rating
- Sensing distance up to 50 mm with ±5 mm tolerance
- LED red light source with 640 nm wavelength
- Adjustable sensitivity with potentiometer, IO-Link, or teach-in button
- Fast response time of 1 ms and switching frequency of 500 Hz
- Dual push-pull switching outputs (PNP/NPN)
- Robust plastic ABS housing
- IO-Link communication interface for advanced data exchange
- Wide ambient operating temperature range from -10°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Quality assurance systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OPR20G-RB317537A90 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
