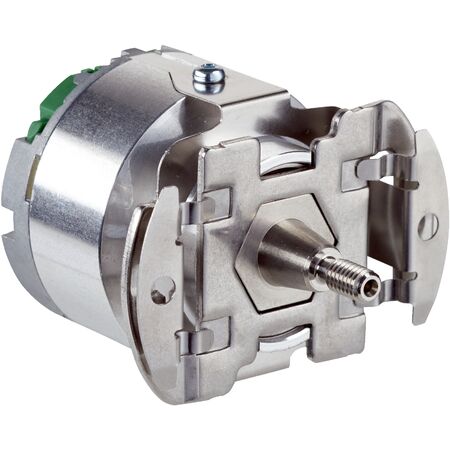

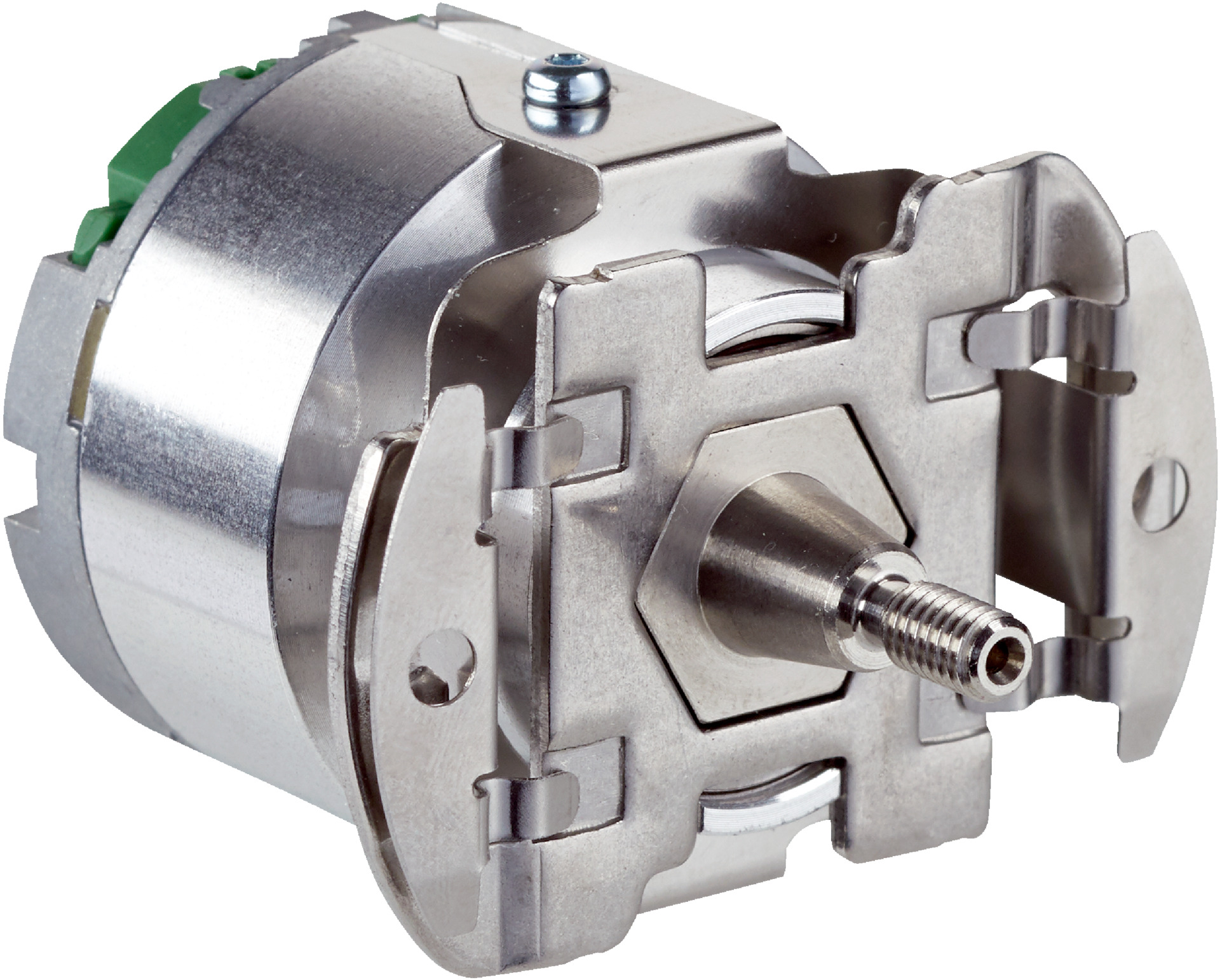

SICK Optical Encoder EKS36 | SIL2 Safety Level | 18 Bit Resolution | HIPERFACE DSL Interface | by SICK
The SICK Optical Encoder EKS36 is designed for high precision in industrial automation, featuring an 18-bit resolution and SIL2 safety integrity level. With a robust IP40 enclosure and a wide operating temperature range of -20 °C to +115 °C, this encoder is perfect for safety-critical applications in robotics and manufacturing equipment, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Position resolution: 18 bit per revolution
- System accuracy: ±120 seconds
- Signal noise: ±5 seconds
- Measurement principle: Optical
- Communication interface: HIPERFACE DSL®
- Supply voltage: 7 V to 12 V, recommended 8 V
- Current consumption: ≤150 mA
- Operating temperature range: -20 °C to +115 °C
- Enclosure rating: IP40
- Operating speed: ≤12,000 min⁻¹
- Moment of inertia of rotor: 4.5 gcm²
- Operating torque: 0.2 Ncm
- Start-up torque: 0.3 Ncm
- Life of ball bearings: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Black anodised housing with anodisation according to DIN EN ISO 7599
- Safety integrity level SIL2 (IEC 61508), SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- Optical measurement principle with 18 bit resolution per revolution
- System accuracy ±120 seconds, signal noise ±5 seconds
- Communication via HIPERFACE DSL® interface
- Operating temperature range from -20 °C to +115 °C
- IP40 enclosure rating with mating plugs inserted and cover closed
- Operating speed up to 12,000 min⁻¹
- Low operating torque of 0.2 Ncm and start-up torque of 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical safety standards and encoder integration to ensure compliance with safety integrity levels.
Applications
- Industrial automation and control systems
- Safety-related motion control requiring SIL2 and PL d compliance
- High precision position measurement in machinery
- Robotics and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable anodised housing extends product life reducing waste
- Low power consumption with supply voltage between 7 V and 12 V
- High reliability reduces need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK EKS36-2KF0A0S07 optical encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
