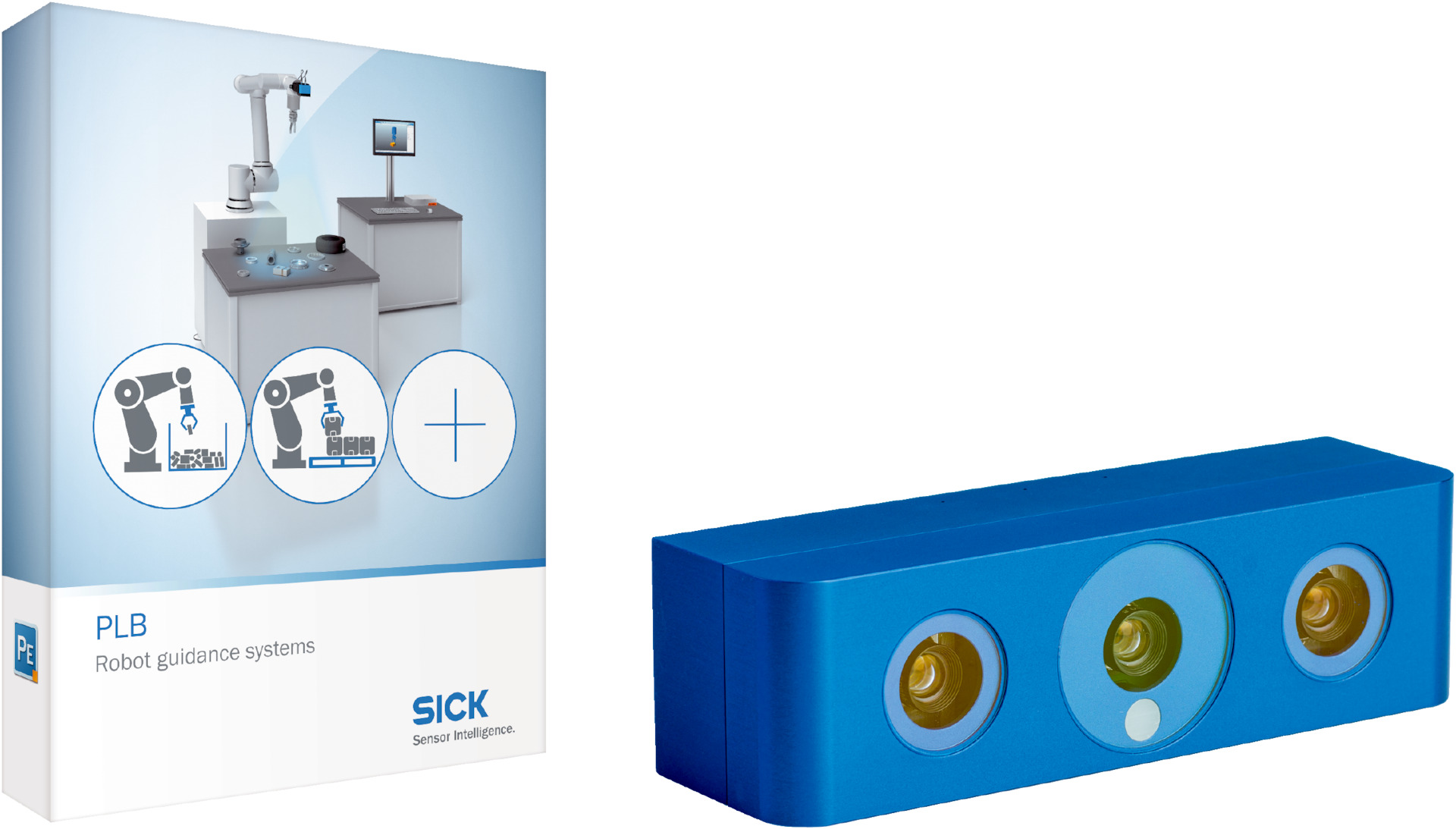

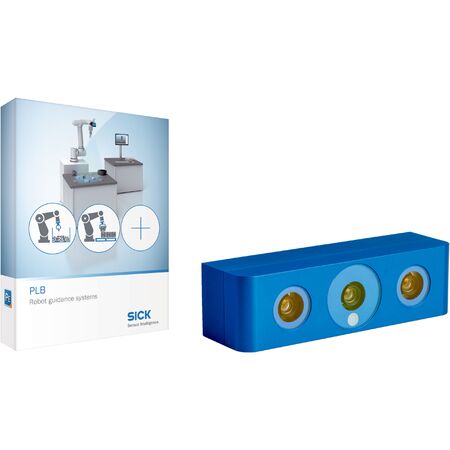

SICK PLB-5150602 3D Snapshot Camera | Small Field of View | IP65/IP67 Rated | Blue LED Light Source | by SICK
The SICK PLB-5150602 3D Snapshot Camera features a small field of view and advanced 3D snapshot technology, making it ideal for robot guidance and position determination tasks. With a blue LED light source at 465 nm and an IP65/IP67 rated enclosure, this camera ensures durability and high performance in industrial environments. Its factory calibration and high-speed Ethernet data transmission enhance operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Field of view: Small
- Image resolution: 0.164 mm to 0.24 mm depending on distance
- Example volume of view: 300 mm x 200 mm x 500 mm
- Light source: LED, blue, 465 nm
- LED class: Risk group 0 (Exempt, IEC62471: 2006)
- Connection type: M9 male connector, 7-pin
- Supply voltage: 12 V to 24 V or PoE Class 3
- Current consumption: 2 A
- Enclosure rating: IP65 / IP67
- Part localization time: 3 s to 10 s typical
- Part size: Approximately greater than 50 mm x 50 mm x 50 mm
- Data transmission rate: 1 Gbit/s (camera), 10/100 Mbit/s (robot)
- Protocol: TCP/IP (camera)
- Electrical connection: RJ45
- Operating ambient temperature: 0 °C to +40 °C, non-condensing
- Shock load: 80 g/1.9 ms, 25 g/6 ms
- Vibration load: 30-500 Hz / 10 g
- Dimensions (H x L x W): 52mm x 192mm x 50mm
- Weight: 0.65 kg
Key Features
- Small field of view
- 3D snapshot camera technology
- Blue LED light source at 465 nm
- Risk group 0 LED class (Exempt, IEC62471: 2006)
- Factory calibrated
- IP65 / IP67 rated enclosure for protection
- High-speed Ethernet data transmission (1 Gbit/s camera, 10/100 Mbit/s robot)
- Supports TCP/IP protocol
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial camera systems and electrical safety standards.
Applications
- Robot guidance
- Position determination tasks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP65/IP67 enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PLB-5150602 3D Snapshot Camera is available for immediate purchase, ideal for industrial robot guidance and position determination applications.
