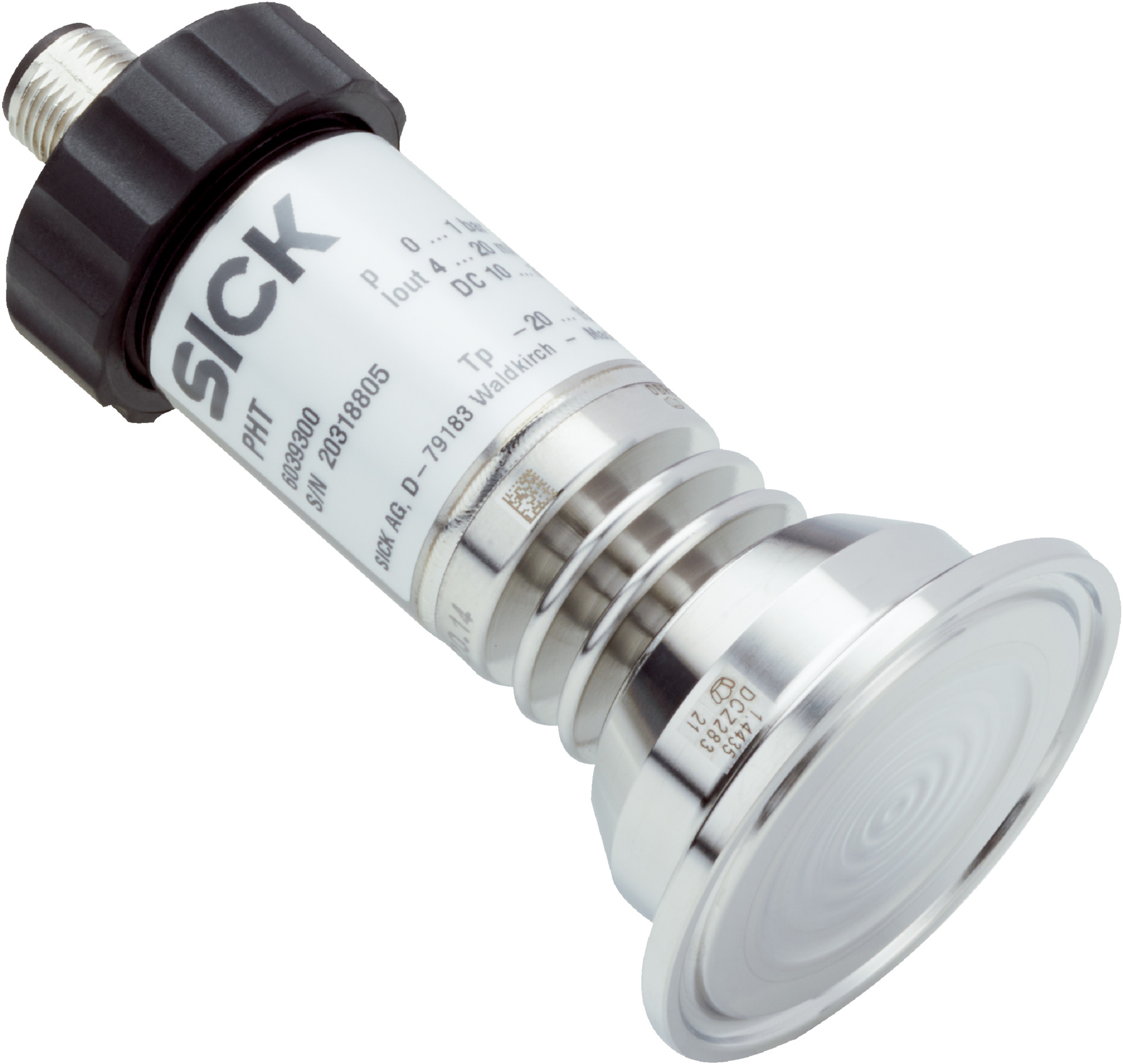

SICK Pressure Transmitter 0-1 Bar | IP67 Rated | 4-20mA Output | Stainless Steel Housing | by SICK
The SICK Pressure Transmitter measures gauge pressure from 0 to 1 bar, making it ideal for both liquid and gaseous media. With a robust IP67 rated stainless steel housing and FDA approved internal fluid, this sensor is perfect for industrial process control and food industry applications, ensuring high accuracy and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar gauge pressure
- Process temperature range: -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Process connection: Clamp (DIN 32676) DN 50
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 1.4571
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5% of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating temperature: -20 °C to +80 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 150mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 1 bar
- Suitable for liquid and gaseous media
- Process connection: Clamp (DIN 32676) DN 50
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Stainless steel 1.4571 housing with field housing connection
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ± 0.5% of span
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% drift per year
- Wide operating temperature range from -20 °C to +80 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved synthetic oil supports safe use in food industry applications
- Low power consumption with 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PHT-RB1X0SD50S0AFT0Z pressure sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
