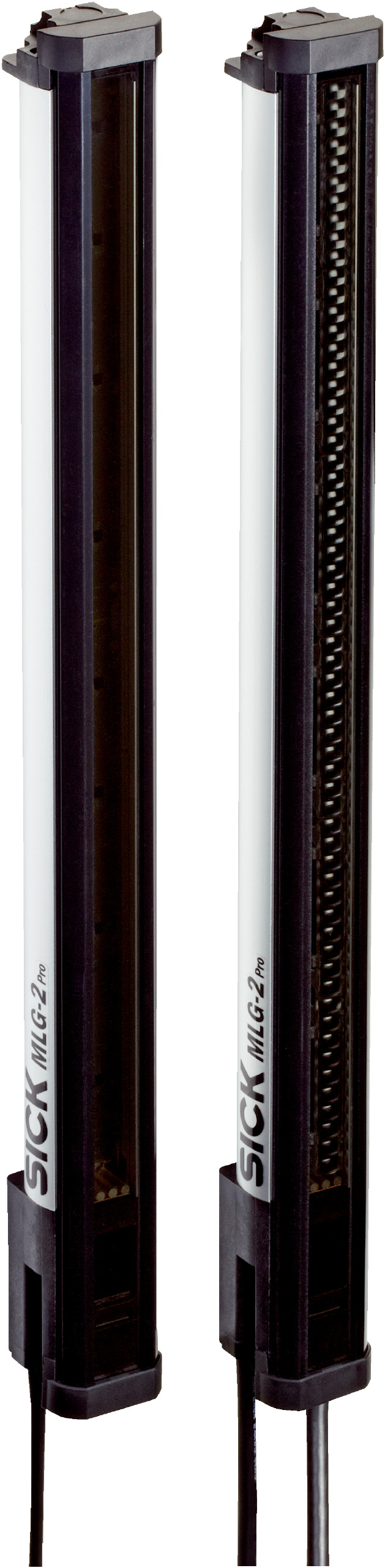

SICK Pro Extended Functionality Sensor | 59 Beams | 2.5 mm Minimum Detection | IP65 & IP67 Rated | by SICK
The SICK Pro Extended Functionality Sensor is designed for precise object detection and height classification, featuring 59 beams and a minimum detectable object size of just 2.5 mm. With robust IP65 and IP67 ratings, this sensor is perfect for industrial automation applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 2.5 mm
- Number of beams: 59
- Detection height: 145 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.9 mA
- Power consumption receiver: 132.6 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: M12 connectors (5-pin male, 8-pin male, 4-pin female D-coded)
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Response time: 3.5 ms
- Maximum range: 2.8 m
- Operating temperature: -30°C to +55°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC standard: EN 60947-5-2
- IO-Link V1.1 with 230.4 kbit/s data rate and 20 m max cable length
- Dimensions (H x L x W): 150mm x 50mm x 150mm
- Weight: 0.55 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 59 beams
- Minimum detectable object size as small as 2.5 mm
- Beam separation of 2.5 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- LED display for status indication
- Circuit protection including reverse polarity and short-circuit protection
- IO-Link V1.1 interface with 230.4 kbit/s data rate and 20 m max cable length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design reduces electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG02A-0145R13204 sensor is available for immediate purchase, ideal for industrial automation and object measurement applications.
