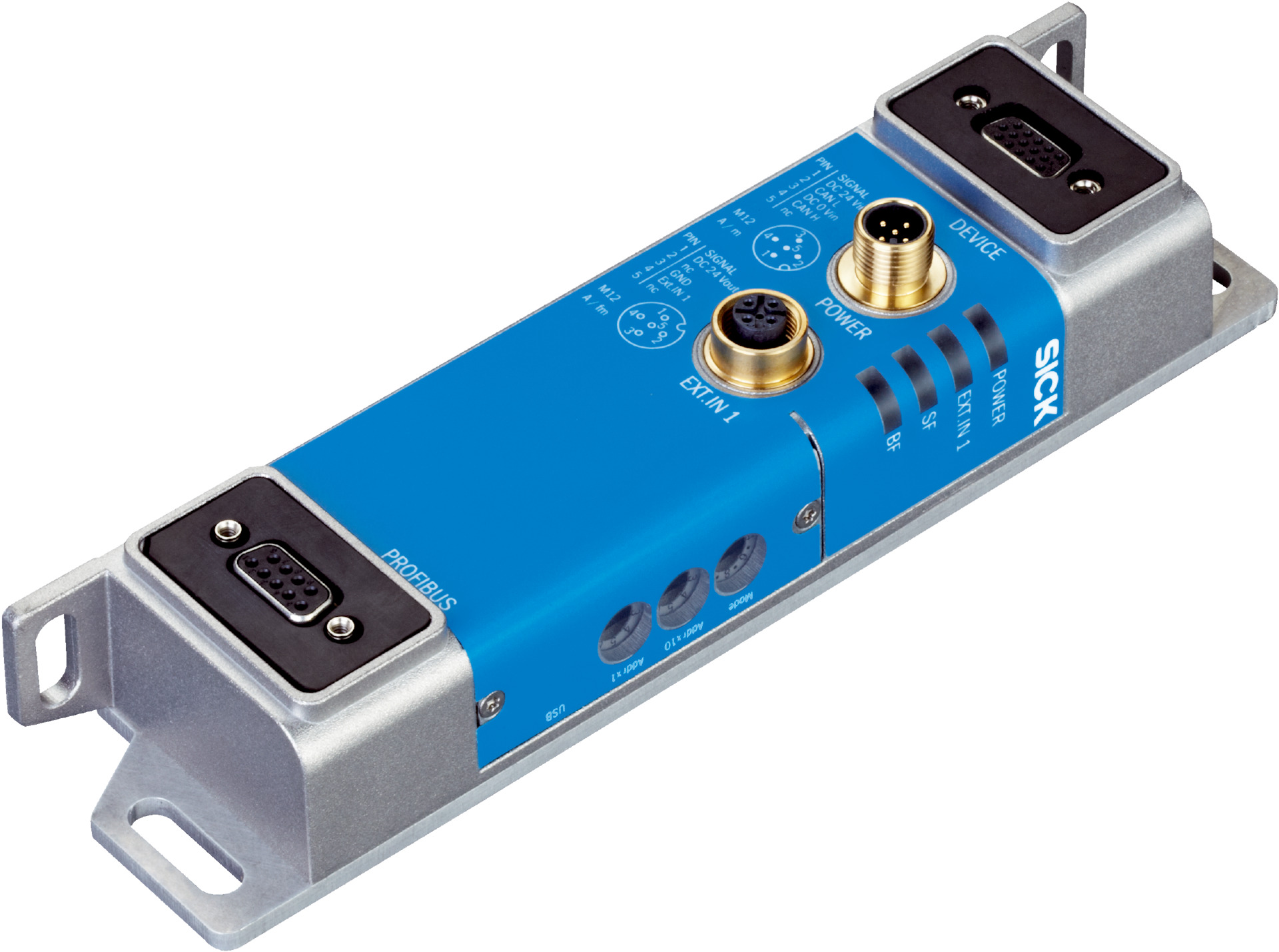

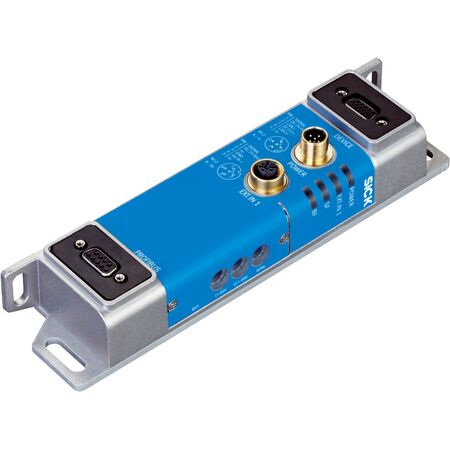

SICK RFID Cloning Module CDF600-2103 | Integrated Cloning Support | RS-232 Connection | Low Power Consumption | by SICK
The SICK RFID Cloning Module CDF600-2103 is designed for seamless integration in industrial automation, supporting Lector series RFID read/write devices. With an integrated cloning module, RS-232 scanner connection, and low power consumption under 5W, it’s perfect for data communication and sensor interfacing in manufacturing environments. Built with a durable aluminum housing and IP20 enclosure rating, this module ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: < 5 W (no sensor or digital input connected)
- Housing: Aluminum (unpainted)
- Enclosure rating: IP20
- Protection class: III
- Scanner connection: RS-232
- Interfaces: Serial RS-232, CAN DPV0, PROFIBUS DP
- Data transmission rates: Serial up to 57.6 kBaud, CAN 9.6 kbit/s to 12 Mbit/s, PROFIBUS DP up to 12 Mbit/s
- Digital inputs: 1, Digital outputs: 0
- Optical indicators: 4 LEDs
- Configuration software: SOPAS ET
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -35 °C to +70 °C
- Relative humidity: < 90%, non-condensing
- EMC compliance: EN 61000-6-3/A1:2011-03, EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 40.7mm x 207mm x 49.5mm
- Weight: 0.375 kg
Key Features
- Integrated cloning module support (CMC)
- Supports Lector series CLV61x - CLV65x CLV69x RFID read/write devices
- RS-232 scanner connection
- Multiple interface support including Serial RS-232, CAN DPV0, and PROFIBUS DP
- Low power consumption under 5W when no sensor or digital input connected
- Aluminum unpainted housing with IP20 enclosure rating
- 4 LED optical indicators for status display
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication systems to ensure proper integration and safety compliance.
Applications
- Industrial automation for RFID read/write operations
- Integration with Lector series CLV61x - CLV65x CLV69x scanners
- Mobile handheld scanner support
- Data communication and sensor interfacing in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial environments
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CDF600-2103 RFID Cloning Module is available for immediate purchase, ideal for industrial automation and RFID system integration.
