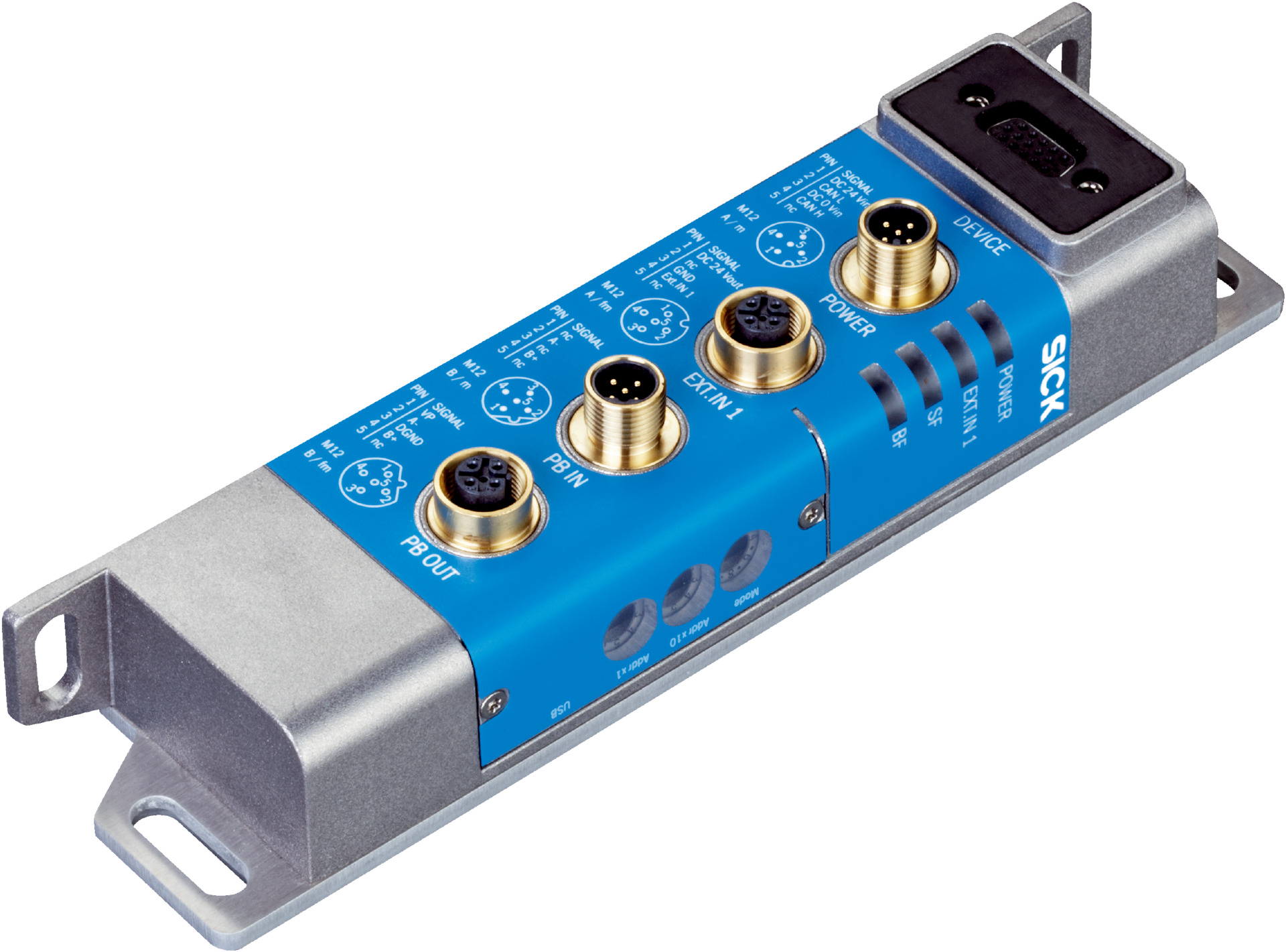

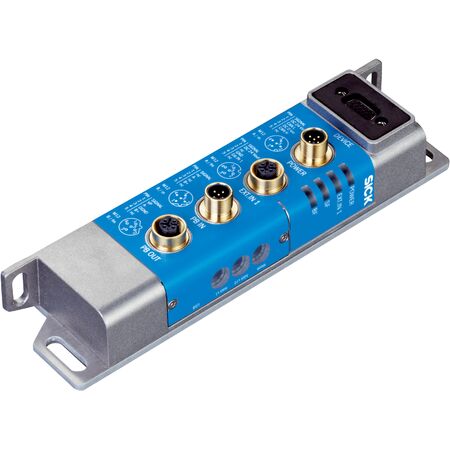

SICK RFID Read/Write Device Module CDF600-2100 | IP65 Enclosure | Integrated Cloning Support | by SICK
The SICK RFID Read/Write Device Module CDF600-2100 is designed for seamless integration in industrial automation, featuring an IP65-rated aluminum housing and integrated cloning module support. With low power consumption under 5 W and multiple interface options including RS-232 and PROFIBUS DP, this module is perfect for RFID applications requiring reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: < 5 W (no sensor or digital input connected)
- Housing: Aluminum (unpainted)
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: RS-232
- Data transmission rates: Serial up to 57.6 kBaud, CAN 9.6 kbit/s to 12 Mbit/s, PROFIBUS DP up to 12 Mbit/s
- Digital inputs: 1
- Digital outputs: 0
- Optical indicators: 4 LEDs
- Operating temperature range: -35 °C to +50 °C
- Storage temperature range: -35 °C to +70 °C
- Relative humidity: < 90%, non-condensing
- EMC compliance: EN 61000-6-3/A1:2011-03, EN 61000-6-2:2005-08
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 40.7mm x 207mm x 49.5mm
- Weight: 0.385 kg
Key Features
- Integrated cloning module support (CMC)
- Supports RS-232 scanner connection
- Aluminum unpainted housing with IP65 enclosure rating
- Low power consumption under 5 W when no sensor or digital input connected
- Multiple interface support including Serial RS-232, CAN DPV0, and PROFIBUS DP
- 1 digital input and 4 LED optical indicators
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial RFID systems and electrical safety standards.
Applications
- Integration with Lector series CLV61x - CLV65x CLV69x RFID read/write devices
- Mobile handheld scanner support
- Industrial automation requiring RFID cloning module support
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65 rated housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CDF600-2100 RFID Read/Write Device Module is available for immediate purchase, ideal for industrial automation and RFID integration applications.
