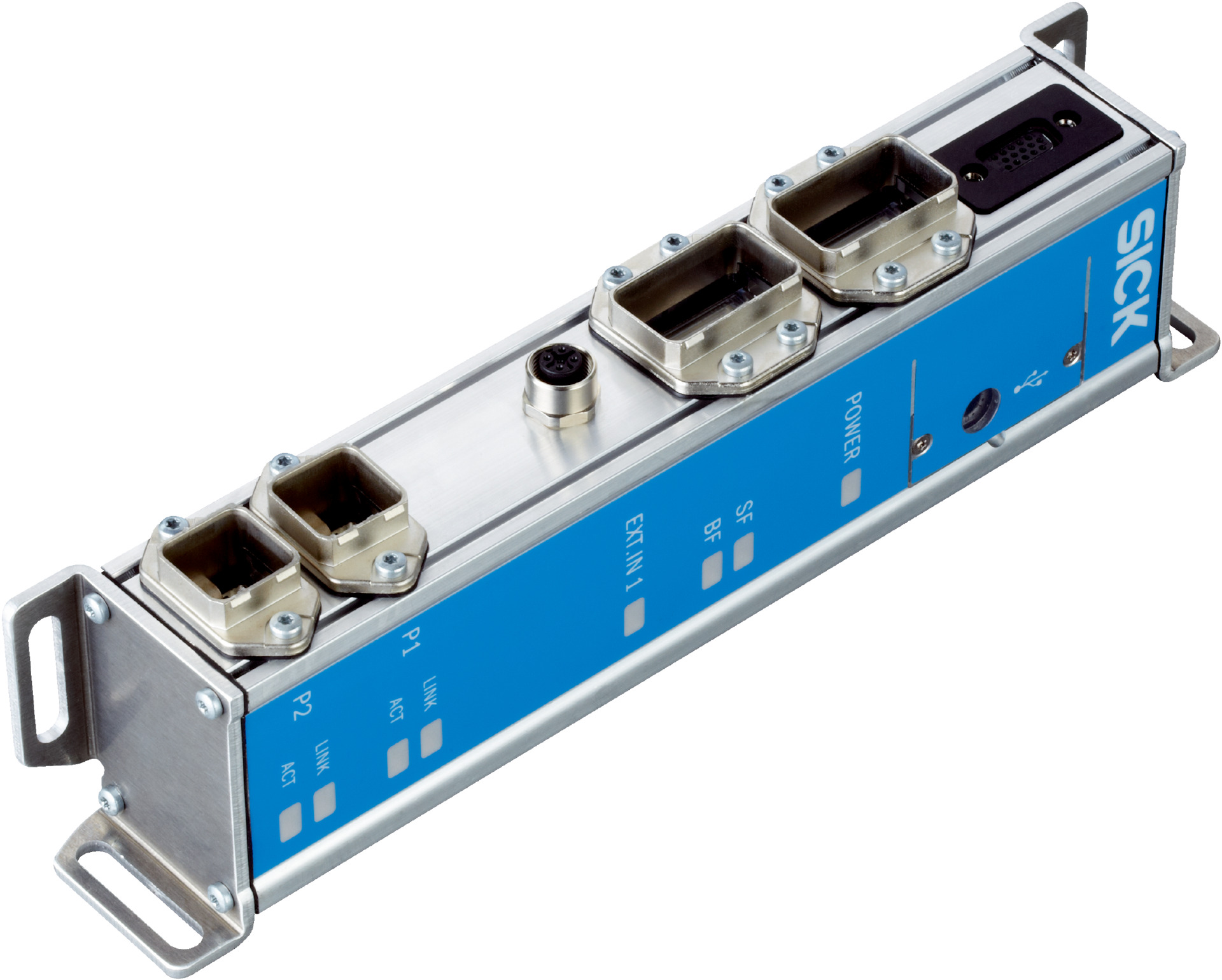

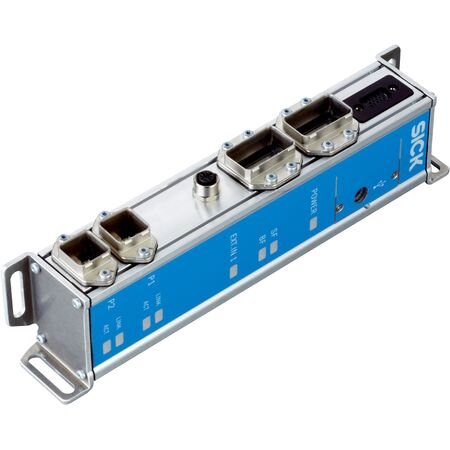

SICK RFID Reader CDF600-2201 | IP65 Enclosure | Low Power Consumption | 8 LED Indicators | by SICK
The SICK RFID Reader CDF600-2201 is designed for industrial automation, featuring an IP65 enclosure and low power consumption under 5W. With a wide operating temperature range from -35°C to +50°C and equipped with 8 LED indicators, this device is perfect for RFID reading and writing in factories and warehouses, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Less than 5 W when no sensor or digital input connected
- Housing material: Aluminum (unpainted)
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: RS-232
- Data transmission rate: 57.6 kBaud
- Digital inputs: 1
- Digital outputs: 0
- Optical indicators: 8 LEDs
- Communication interfaces: PROFINET dual port, RS-232
- Configuration software: SOPAS ET
- Operating temperature range: -35°C to +50°C
- Storage temperature range: -35°C to +70°C
- Relative humidity: Less than 90%, non-condensing
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Electromagnetic compatibility: EN61000-6-4:2018-02 / EN 61000-6-2:2005-08
- Dimensions (H x L x W): 47.4mm x 270.1mm x 74.7mm
- Weight: 0.69 kg
Key Features
- Integrated cloning module support (CMC)
- Supports PROFINET dual port and RS-232 interfaces
- Low power consumption under 5W when idle
- Aluminum unpainted housing with IP65 enclosure rating
- Protection class III for electrical safety
- Equipped with 8 LED optical indicators
- Compatible with SOPAS ET configuration software
- Wide ambient operating temperature range from -35°C to +50°C
- Vibration and shock resistant according to EN 60068 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication systems to ensure compliance with safety and operational standards.
Applications
- Industrial automation for RFID reading and writing
- Integration with Lector series CLV61x - CLV65x CLV69x
- Mobile handheld scanner support
- Factory and warehouse automation requiring PROFINET and RS-232 communication
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial environments
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CDF600-2201 RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and RFID scanning applications.
