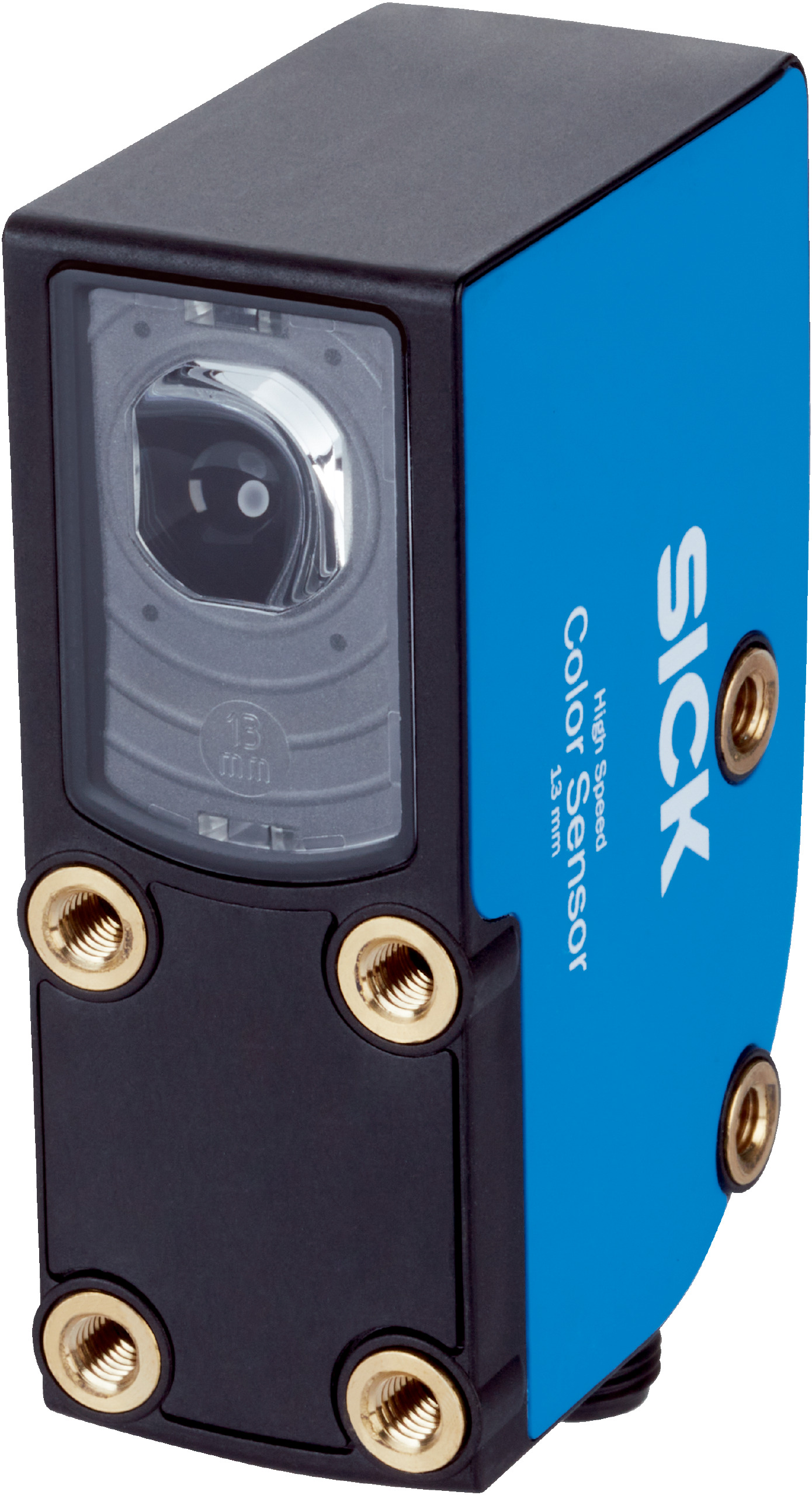

SICK RGB Color Sensor | 13 mm Sensing Distance | IP67 Rated | 13.8 kHz Switching Frequency | by SICK
The SICK RGB Color Sensor is designed for precision in industrial automation, featuring a 13 mm sensing distance and an IP67 rating for dust and water resistance. With a rapid 13.8 kHz switching frequency and continuous sensitivity adjustment, it's perfect for quality control and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Light spot size: 2 mm x 4 mm
- Light spot direction: Vertical
- Safety-related parameters MTTFD: 263.7 years
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with light emission from the long side
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
- Plug M12, 5-pin connection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Warranty terms as provided by SICK, typically 1-3 years depending on region and application.
Available Now

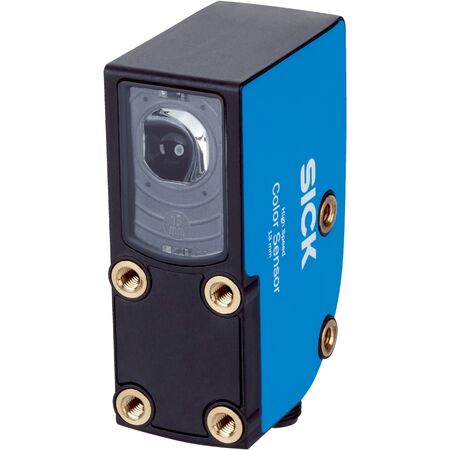

The SICK CSX-WBF114125AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
