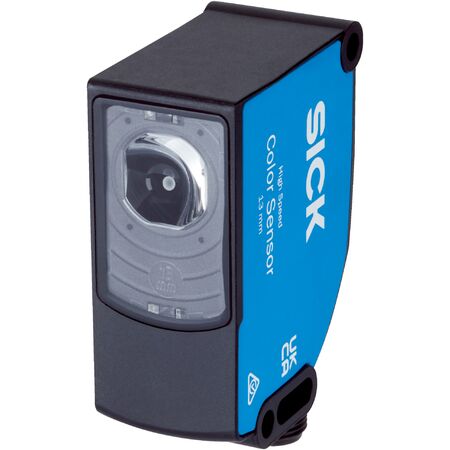

SICK RGB Color Sensor | 13 mm Sensing Distance | IP67 Rated | 4 Output Modes | by SICK
The SICK RGB Color Sensor is designed for precise color detection with a sensing distance of 13 mm and an IP67 rated enclosure for dust and water protection. Ideal for industrial automation and quality control, this sensor features a versatile RGB LED light source and multiple output modes, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 13 mm ± 5 mm
- Light source: LED RGB (460 nm, 530 nm, 625 nm)
- Light emission: Long side of housing with 2 mm x 4 mm light spot size
- Output modes: 4 colors in standard mode, 15 colors in coded mode
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Connection: Male M12, 8-pin connector
- Output current max: 100 mA
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths 460 nm, 530 nm, 625 nm
- 4 hardware switching outputs and 24 virtual switching outputs via RS-485
- Continuous sensitivity adjustment from 0 to 999
- Single and multi-value teach-in modes
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +60°C
- Push-pull PNP/NPN switching output with max 100 mA output current
- Reverse polarity and short-circuit protected outputs
- Male M12 8-pin connector for easy integration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for RS-485 communication and safety compliance.
Applications
- Industrial automation for color detection and sorting
- Quality control in manufacturing processes
- Object recognition and identification in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBF114118RZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
