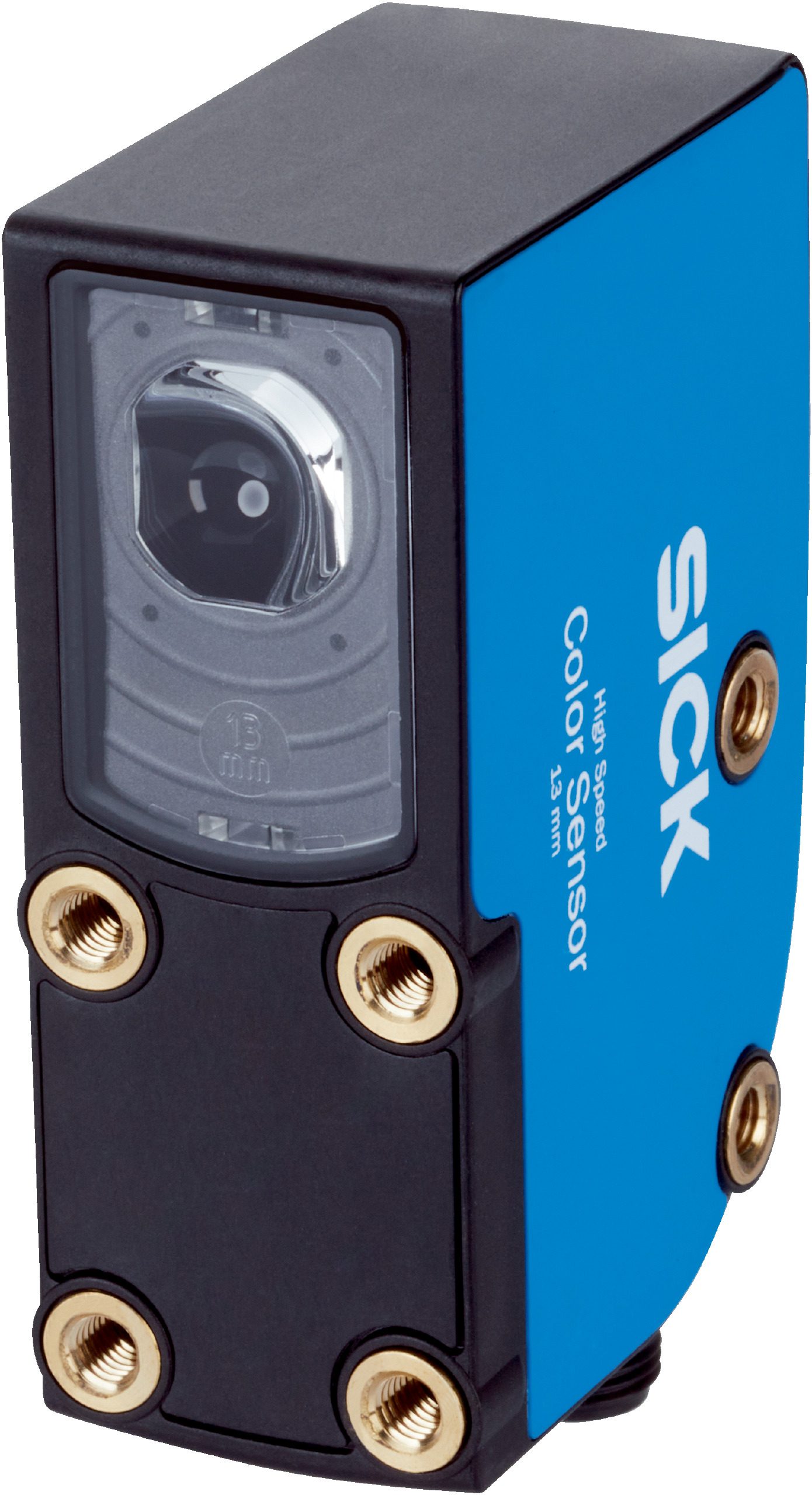

SICK RGB Color Sensor | 13 mm Sensing Distance | IP67 Rated | LED RGB Light Source | by SICK
The SICK RGB Color Sensor is designed for precise color detection and object sensing in industrial automation. With a sensing distance of 13 mm ± 5 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for quality control, material sorting, and robotics, this sensor features a robust LED RGB light source and supports both single and multi-value teach-in modes for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 13 mm ± 5 mm
- Light source: LED RGB (460 nm, 530 nm, 625 nm)
- Light emission: Long side of housing
- Light spot size: 2 mm x 4 mm
- Output modes: 4 colors standard, 15 colors coded
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Connection: Male M12, 8-pin connector
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- MTTFD: 263.7 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- X-housing design with LED RGB light source
- Supports single and multi-value teach-in modes
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- IO-Link V1.1.2 communication protocol
- Push-pull PNP/NPN switching outputs
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or automation technician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Robotics and machine vision systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

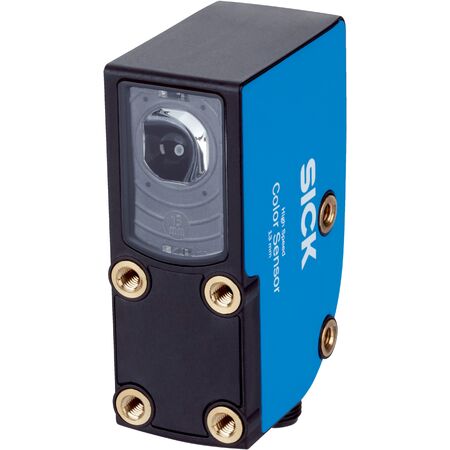

The SICK CSX-WBF114128AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
