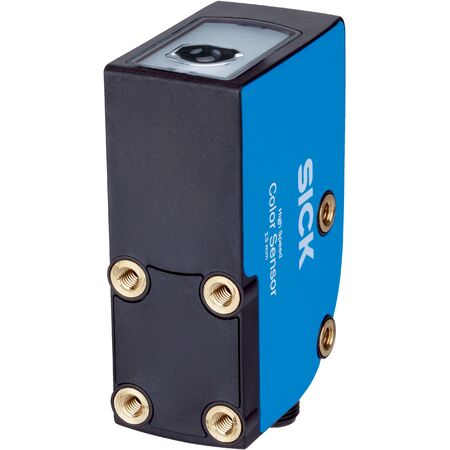

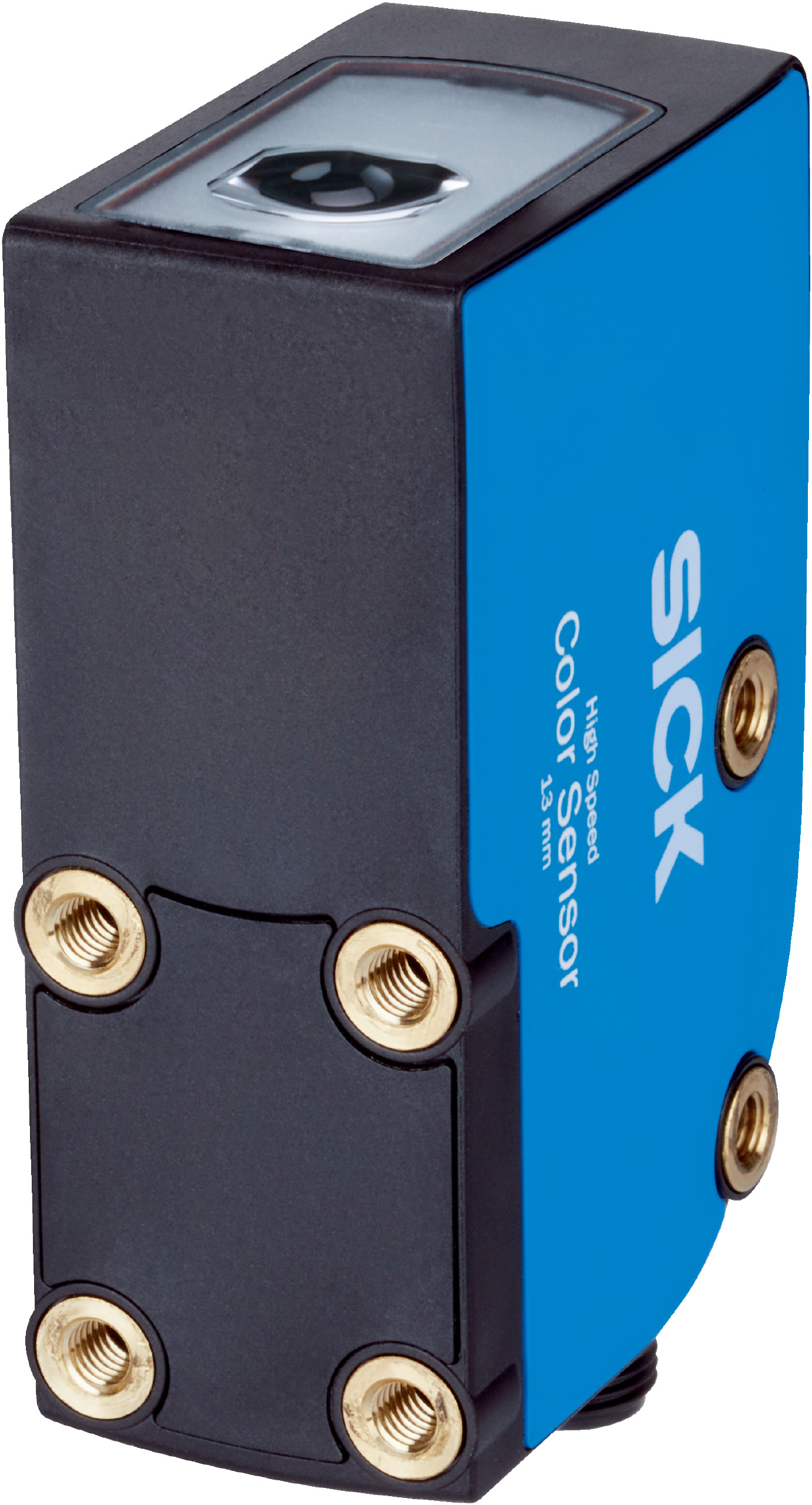

SICK RGB Color Sensor | 13 mm Sensing Distance | IP67 Rated | NPN Output | by SICK
The SICK RGB Color Sensor is designed for precise color detection and object sensing in industrial automation. With a sensing distance of 13 mm ± 5 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for quality control and robotics applications, this sensor features a high switching frequency of 13.8 kHz and fast response time of 36 µs, making it a perfect choice for efficient manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 13 mm ± 5 mm
- Light source: LED RGB (460 nm, 530 nm, 625 nm)
- Light spot size: 2 mm x 4 mm
- Output mode: 4 colors standard, 15 colors coded
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Switching output: NPN, max output current 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Connection: Male M12, 8-pin connector
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- X-housing design with LED RGB light source
- 4 hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- High switching frequency of 13.8 kHz and fast response time of 36 µs
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WNF1142282ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
