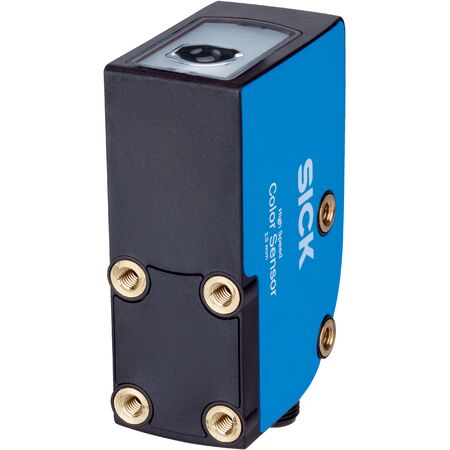

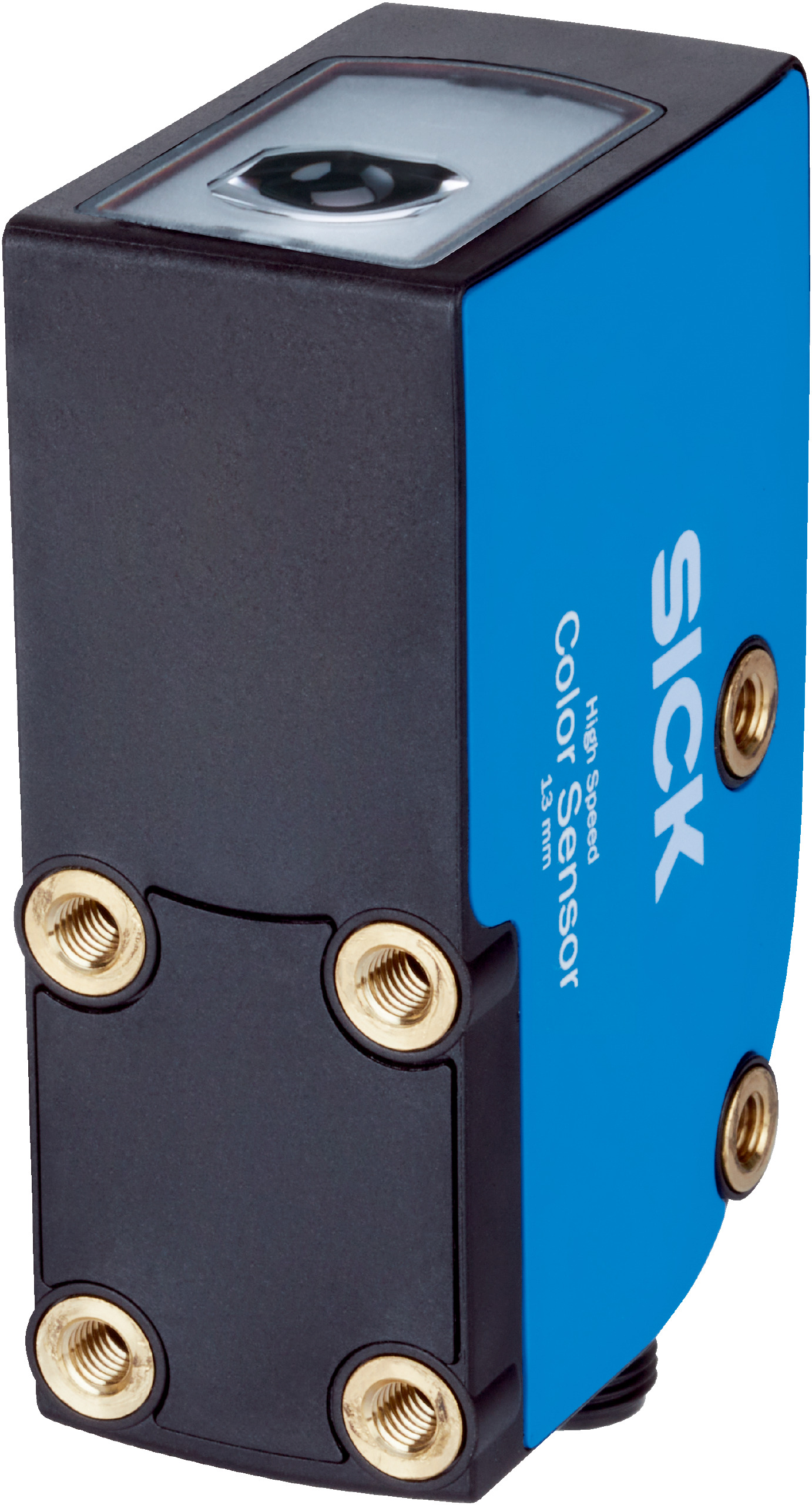

SICK RGB Color Sensor | 13 mm Sensing Distance | IP67 Rated | PNP Switching Outputs | by SICK
The SICK RGB Color Sensor is designed for precise color detection with a sensing distance of 13 mm and an efficient RGB LED light source. Ideal for industrial automation and quality control, this sensor features an IP67 rated enclosure for dust and water resistance, ensuring reliable performance in challenging environments. With multiple teach-in modes and robust protection against reverse polarity and short-circuits, it's perfect for robotics and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 13 mm
- Light source: LED, RGB with wavelengths 460 nm, 530 nm, 625 nm
- Light spot size: 2 mm x 4 mm
- Output mode: 2 colors in standard mode, 3 colors in coded mode
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Switching output: PNP, max output current 100 mA
- Connection type: Plug, M12, 5-pin
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Weight: 94 g
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with precise RGB LED light source
- X-housing design for compact and robust installation
- Two hardware switching outputs with PNP switching
- Continuous sensitivity adjustment from 0 to 999
- Multiple teach-in modes including single and multi-value
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +60°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSX-WPF1142252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
