SICK RGB Color Sensor | 4 Color Output | IP67 Rated | 13.8 kHz Switching Frequency | by SICK
The SICK RGB Color Sensor is designed for industrial automation, offering 4 color output and a rapid 13.8 kHz switching frequency. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for quality control, material sorting, and robotics applications. Its energy-efficient LED light source and robust design enhance durability and reduce environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Light spot size: 2 mm x 4 mm
- Output mode: 4 colors in standard mode, 15 colors in coded mode
- Teach-in modes: Single value and multi-value
- Connection type: Male M12, 8-pin connector
- Protection: Reverse polarity, short-circuit, and interference pulse suppression
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with short device side light emission
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Robotics and machine vision systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

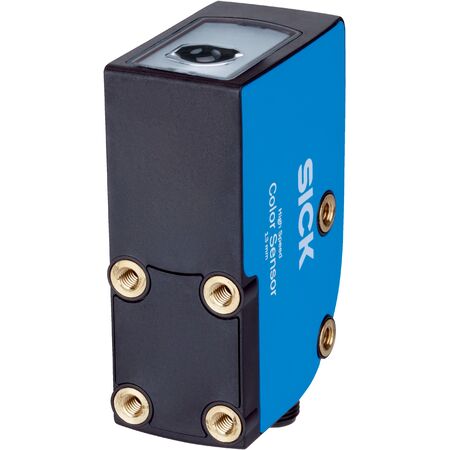

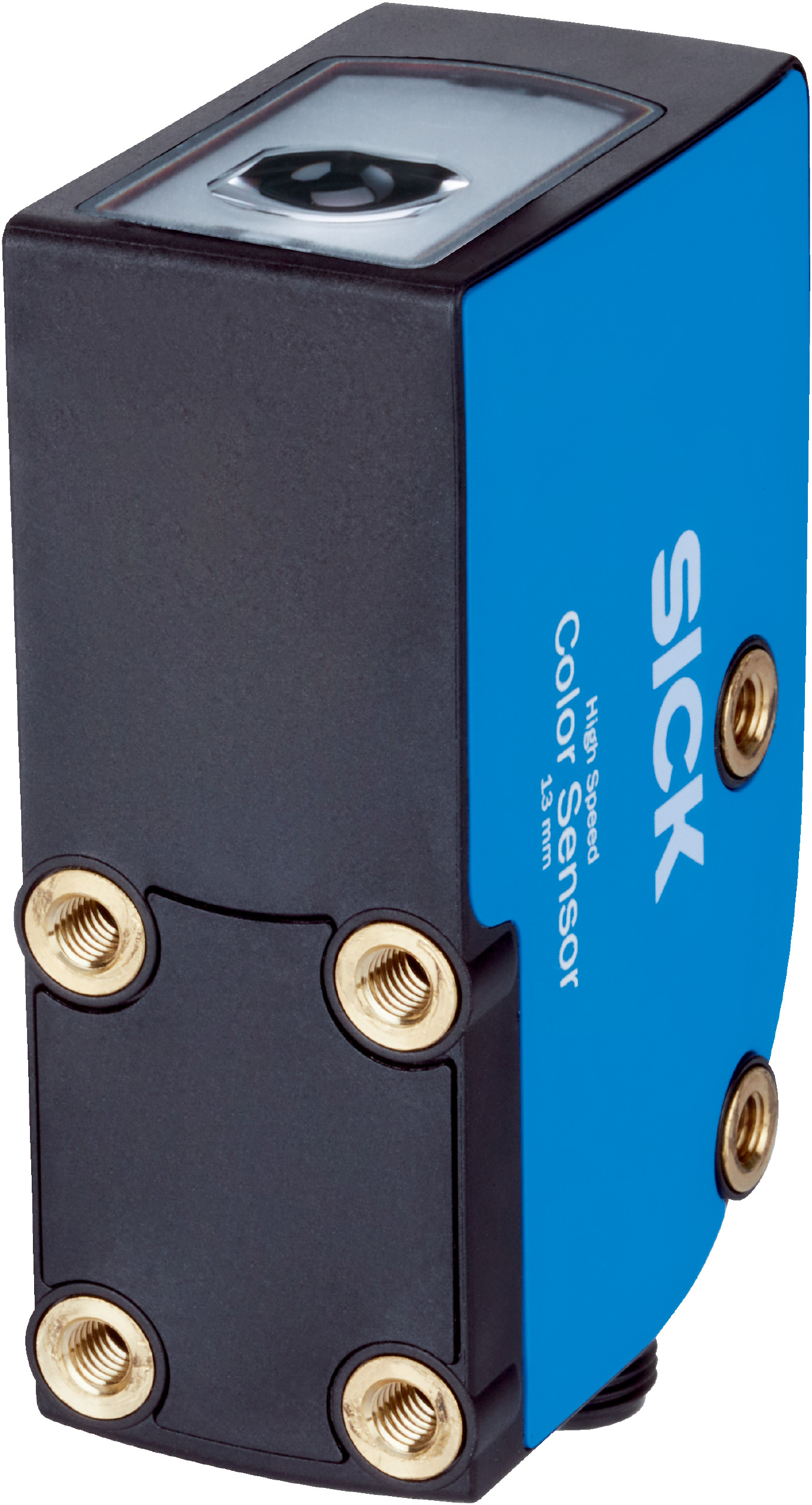

The SICK CSX-WBF114228AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
