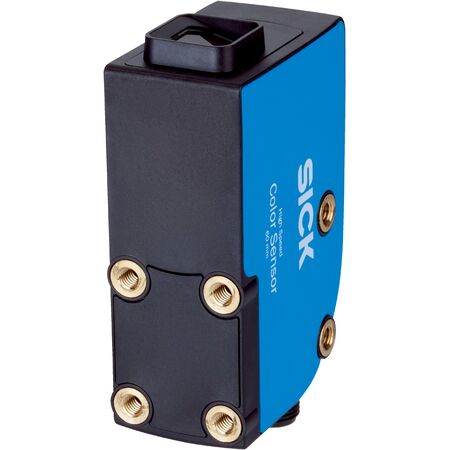

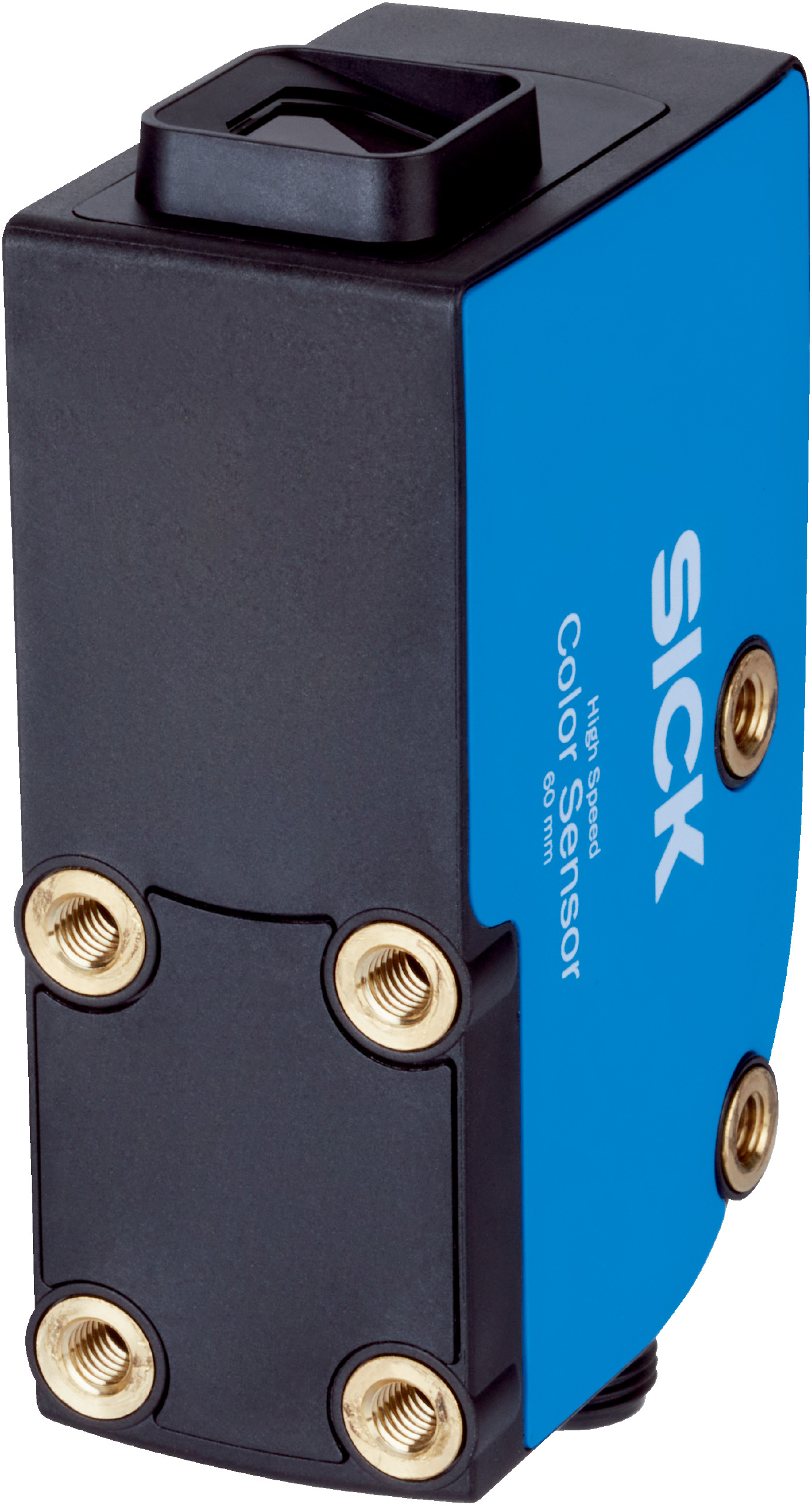

SICK RGB Color Sensor | 60 mm Sensing Distance | IP67 Rated | 4 Color Outputs | by SICK
The SICK RGB Color Sensor is designed for precise color detection and object sensing in industrial automation. With a sensing distance of 60 mm and an IP67 enclosure rating, it ensures reliable performance in harsh environments. Ideal for quality control and robotics applications, this sensor features continuous sensitivity adjustment and multiple output modes for versatile integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 60 mm ± 9 mm
- Light source: LED RGB (460 nm, 530 nm, 625 nm)
- Light emission: Short device side, round 12 mm diameter spot
- Output modes: 4 colors standard, 15 colors coded
- Sensitivity adjustment: Continuous 0 to 999
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Connection: Male M12, 8-pin connector
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- X-housing design with LED RGB light source
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Short device side light emission with a round, large light spot of 12 mm diameter
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for robust industrial use
- Operating temperature range from -20°C to +60°C
- Male connector M12, 8-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WBFA54228AA10Z RGB LED Sensor is available for immediate purchase. Ideal for industrial automation and color detection applications.
