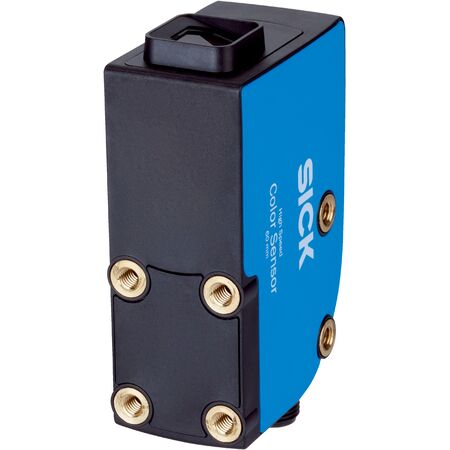

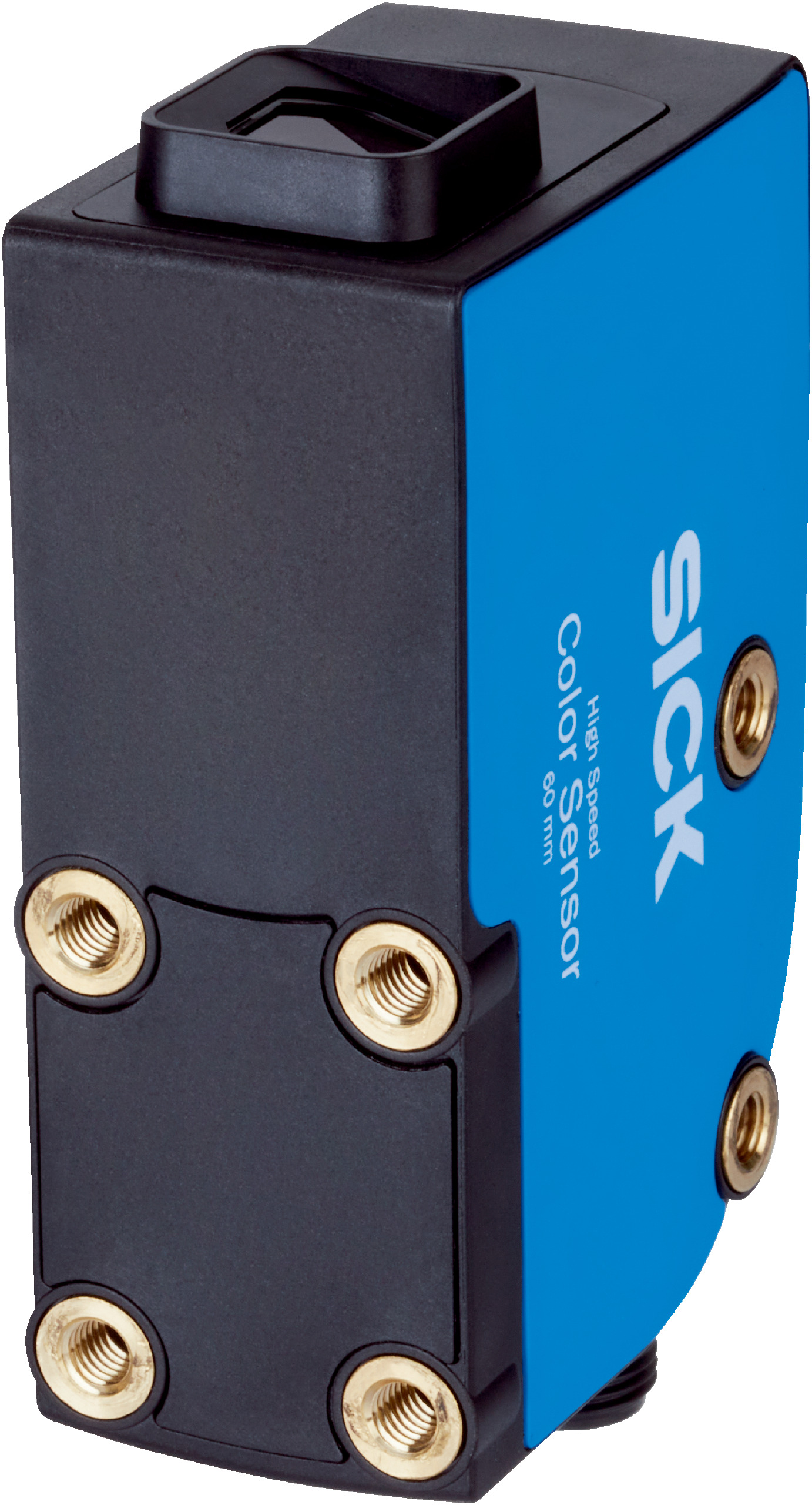

SICK RGB Color Sensor | 60mm Sensing Distance | IP67 Rated | 13.8kHz Switching Frequency | by SICK
The SICK RGB Color Sensor is designed for industrial automation, featuring a 60mm sensing distance and an IP67 rated enclosure for dust and water resistance. With a high switching frequency of 13.8 kHz and fast response time of 36 µs, it’s perfect for quality control in manufacturing and robotics applications, ensuring precise color detection and object sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching output: Push-pull PNP/NPN with max output current 100 mA
- Switching frequency: 13.8 kHz
- Response time: 36 microseconds
- Light spot size: 12 mm diameter
- Light emission: Short device side
- Teach-in modes: Single value and multi-value
- Output modes: 2 colors standard/best fit, 3 colors coded
- Safety rating: LED risk group 1
- MTTFD: 263.7 years
- Connection type: M12 5-pin plug
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths 460 nm, 530 nm, 625 nm
- X-housing design with glass optics
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- High switching frequency of 13.8 kHz and fast response time of 36 µs
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WBFA54225AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
