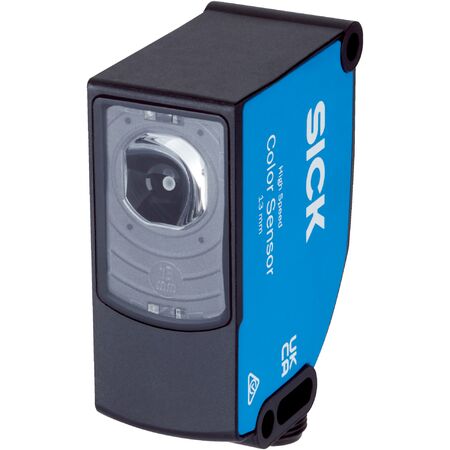

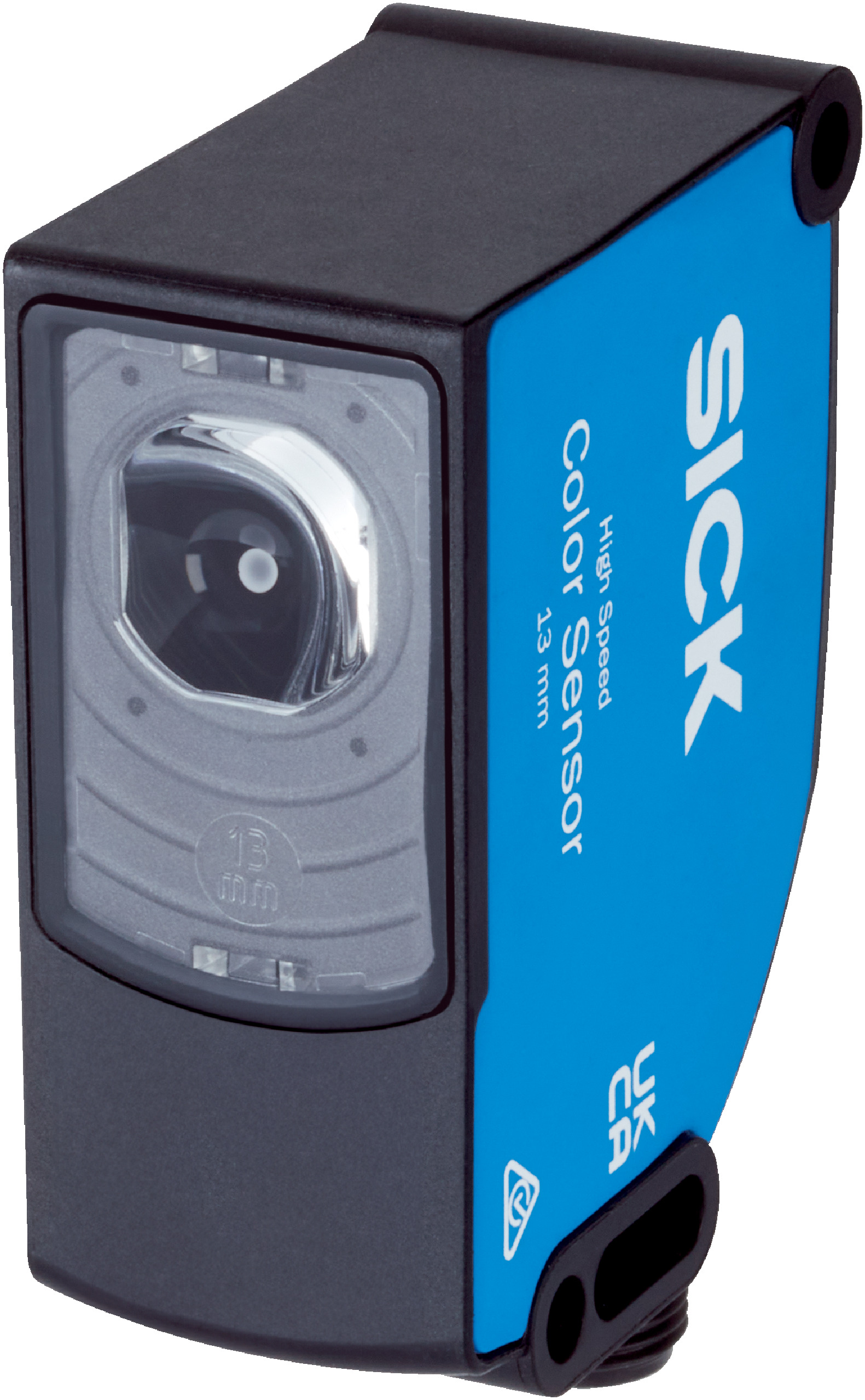

SICK RGB Color Sensor CSS-WBF114115AA10Z | IP67 Rated | 13.8 kHz Switching Frequency | 36 µs Response Time | by SICK
The SICK RGB Color Sensor CSS-WBF114115AA10Z is designed for precise color sensing and object detection in industrial automation. With a sensing distance of 13 mm and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for quality control and robotics applications, this sensor features a robust design with reverse polarity protection and a long lifespan of over 263 years.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output: Push-pull PNP/NPN, max output current 100 mA
- Teach-in modes: Single value and multi-value
- Available job banks: 4
- Light spot size: 2 mm x 4 mm
- Connection type: M12, 5-pin plug
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- MTTFD: 263.7 years
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths 460 nm, 530 nm, 625 nm
- S-housing design with long side light emission
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified electrician or automation technician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CSS-WBF114115AA10Z RGB LED Sensor with IO-Link is available for immediate purchase, ideal for industrial automation and quality control applications.
