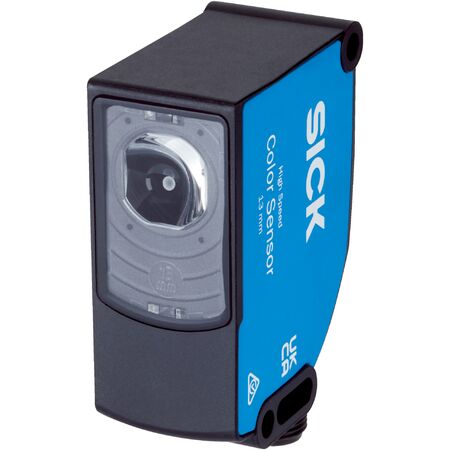

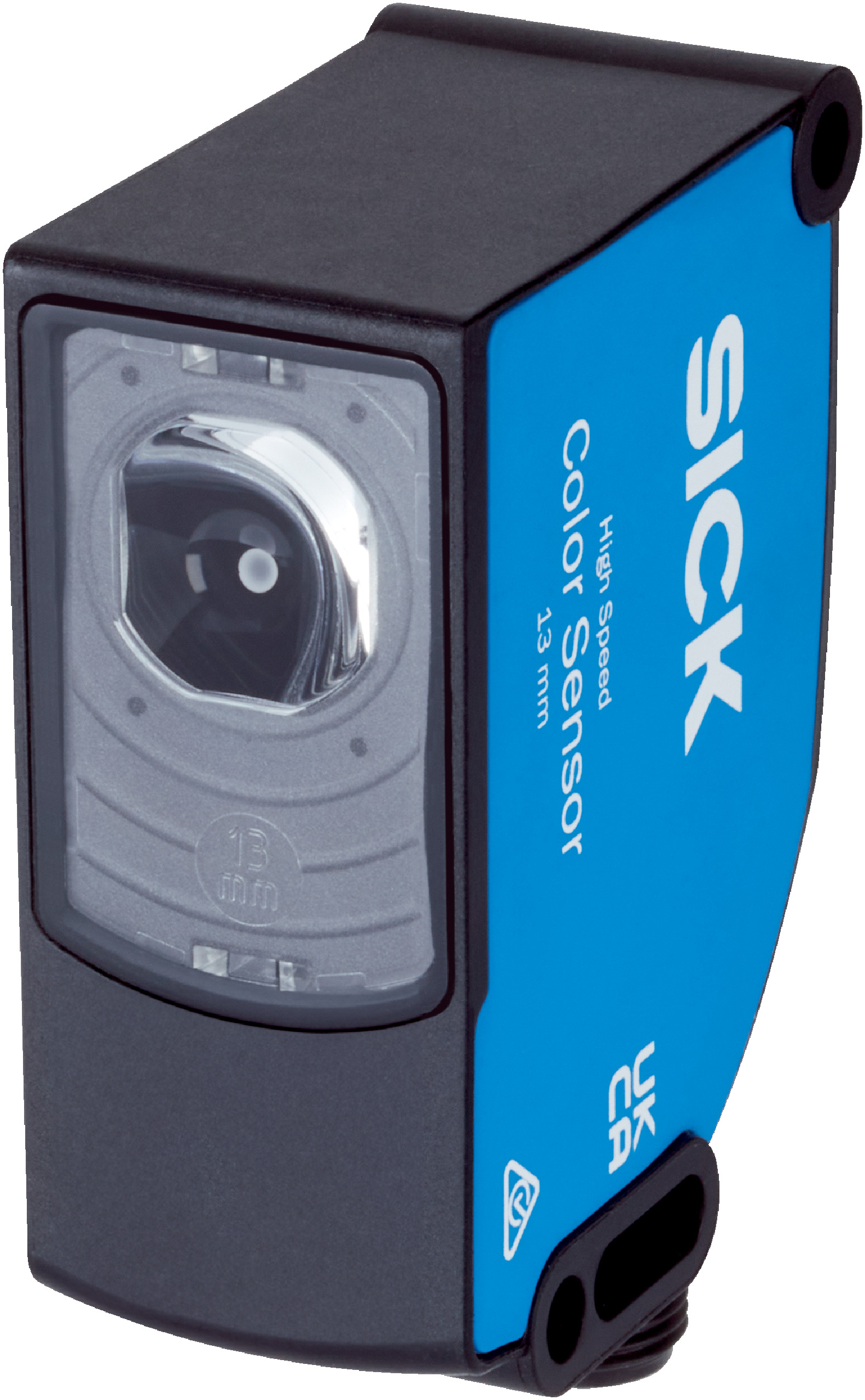

SICK RGB Color Sensor CSS-WBF114118AA10Z | IP67 Rated | 4 Color Outputs | 13.8 kHz Switching Frequency | by SICK
The SICK RGB Color Sensor CSS-WBF114118AA10Z is designed for precise color detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a rapid 13.8 kHz switching frequency and the ability to output 4 colors in standard mode, it's perfect for quality control and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output mode: 4 colors in standard mode, 15 colors in coded mode
- Light spot size: 2 mm x 4 mm
- Light emission direction: vertical on long side of housing
- Protection class: III
- Circuit protection: reverse polarity, short-circuit, interference pulse suppression
- Connection type: Male M12, 8-pin connector
- Safety-related parameters MTTFD: 263.7 years
- Dimensions (H x L x W): 62mm x 47.5mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Single and multi-value teach-in modes
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +60°C
- Push-pull PNP/NPN switching output with max 100 mA output current
- Short-circuit and reverse polarity protected circuitry
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link technology.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBF114118AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
