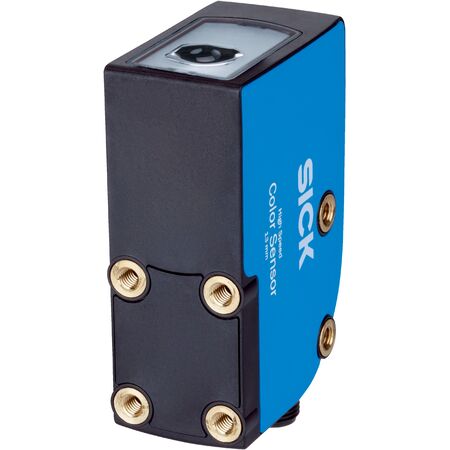

SICK RGB Color Sensor CSX-WBF114225AA10Z | IP67 Rated | 13.8 kHz Switching Frequency | 36 µs Response Time | by SICK
The SICK RGB Color Sensor CSX-WBF114225AA10Z is designed for precise color sensing and object detection in industrial automation. With a sensing distance of 13 mm and an IP67 rating for dust and water resistance, this sensor is perfect for quality control and robotics applications. Its energy-efficient LED light source and robust design ensure reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Light spot size: 2 mm x 4 mm
- Light spot direction: Vertical
- Teach-in modes: Single value and multi-value
- Available job banks: 4
- Safety-related parameters MTTFD: 263.7 years
- Connection type: M12 5-pin plug
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with short device side light emission
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WBF114225AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
