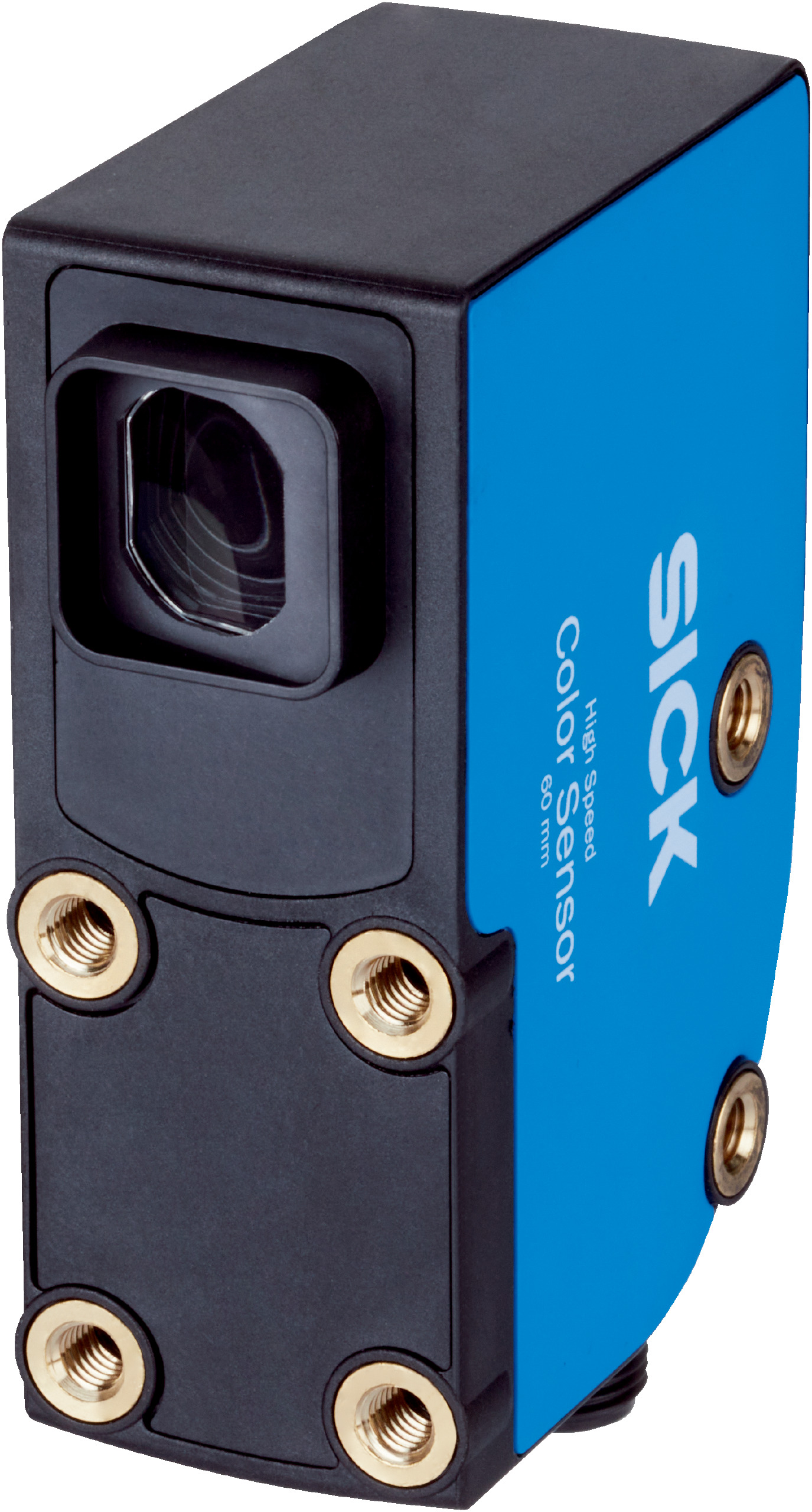

SICK RGB Color Sensor | IO-Link Compatible | IP67 Rated | 4 Color Outputs | by SICK
The SICK RGB Color Sensor is designed for industrial automation, offering precise color detection with a sensing distance of 60 mm and an impressive response time of 36 µs. Ideal for quality control and material sorting, this sensor features an IP67 rating for dust and water resistance, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output mode: 4 colors in standard mode, 15 colors in coded mode
- Light spot size: 12 mm diameter
- Safety rating: LED risk group 1
- MTTFD: 263.7 years
- Circuit protection: reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with glass optics
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
- Male M12 8-pin connector for connection
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
- Supports IO-Link for smart communication reducing wiring and installation waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

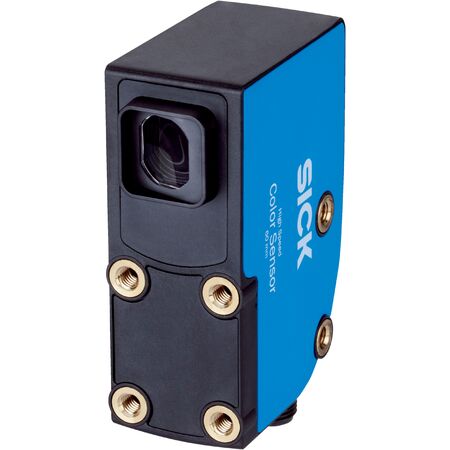

The SICK CSX-WBFA54128AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
