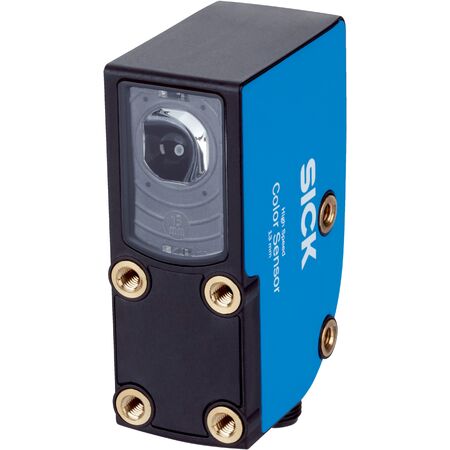

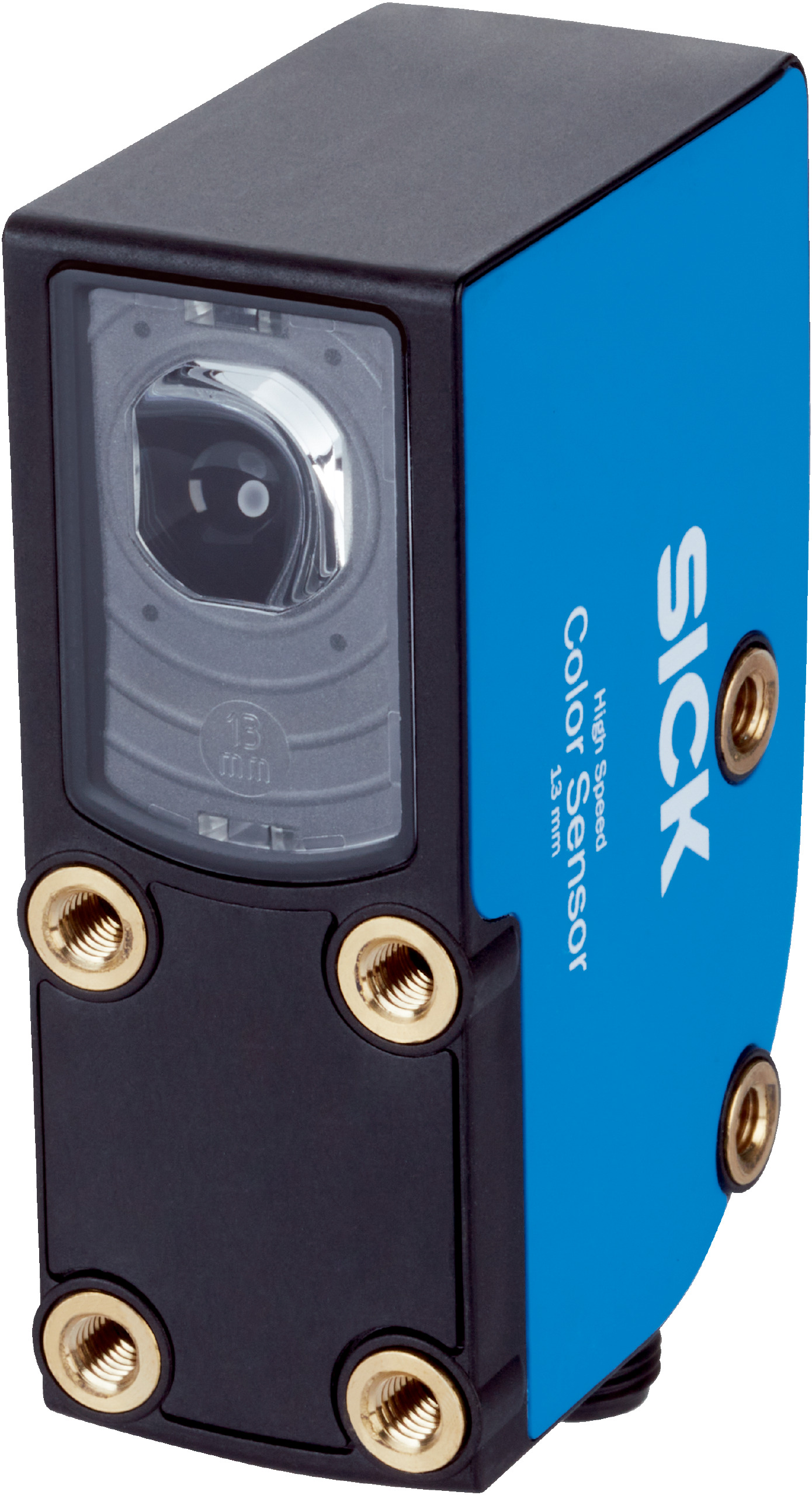

SICK RGB Color Sensor | IP67 Rated | 13.8 kHz Switching Frequency | 36 µs Response Time | by SICK
The SICK RGB Color Sensor is designed for industrial automation, offering precise color detection with a sensing distance of 13 mm and a rapid 36 µs response time. With an IP67 rated housing, it ensures durability in harsh environments, making it ideal for quality control, material sorting, and robotics applications. Its energy-efficient LED light source and advanced features like continuous sensitivity adjustment enhance operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Light spot size: 2 mm x 4 mm
- Light emission direction: vertical
- Housing material: VISTAL®
- Optics material: PMMA
- Connection type: Male M12, 8-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths 460 nm, 530 nm, 625 nm
- 4 hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- IP67 rated housing for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Protection against reverse polarity, short-circuit, and interference pulses
- Non-volatile memory with 3 s retention time for teach-in input
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Material sorting and identification
- Robotics and machine vision systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
- Non-toxic materials compliant with China-RoHS standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WNF1141282ZZZZ RGB LED Sensor is available for immediate purchase. Ideal for industrial automation and color detection applications.
