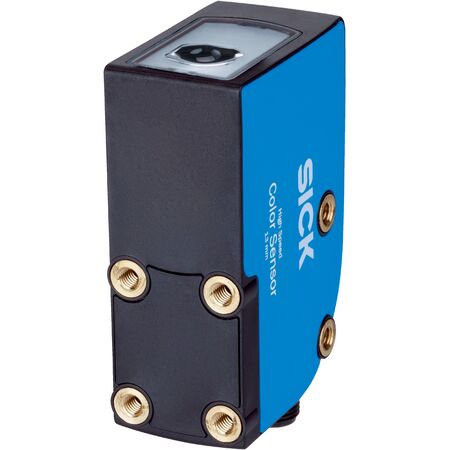

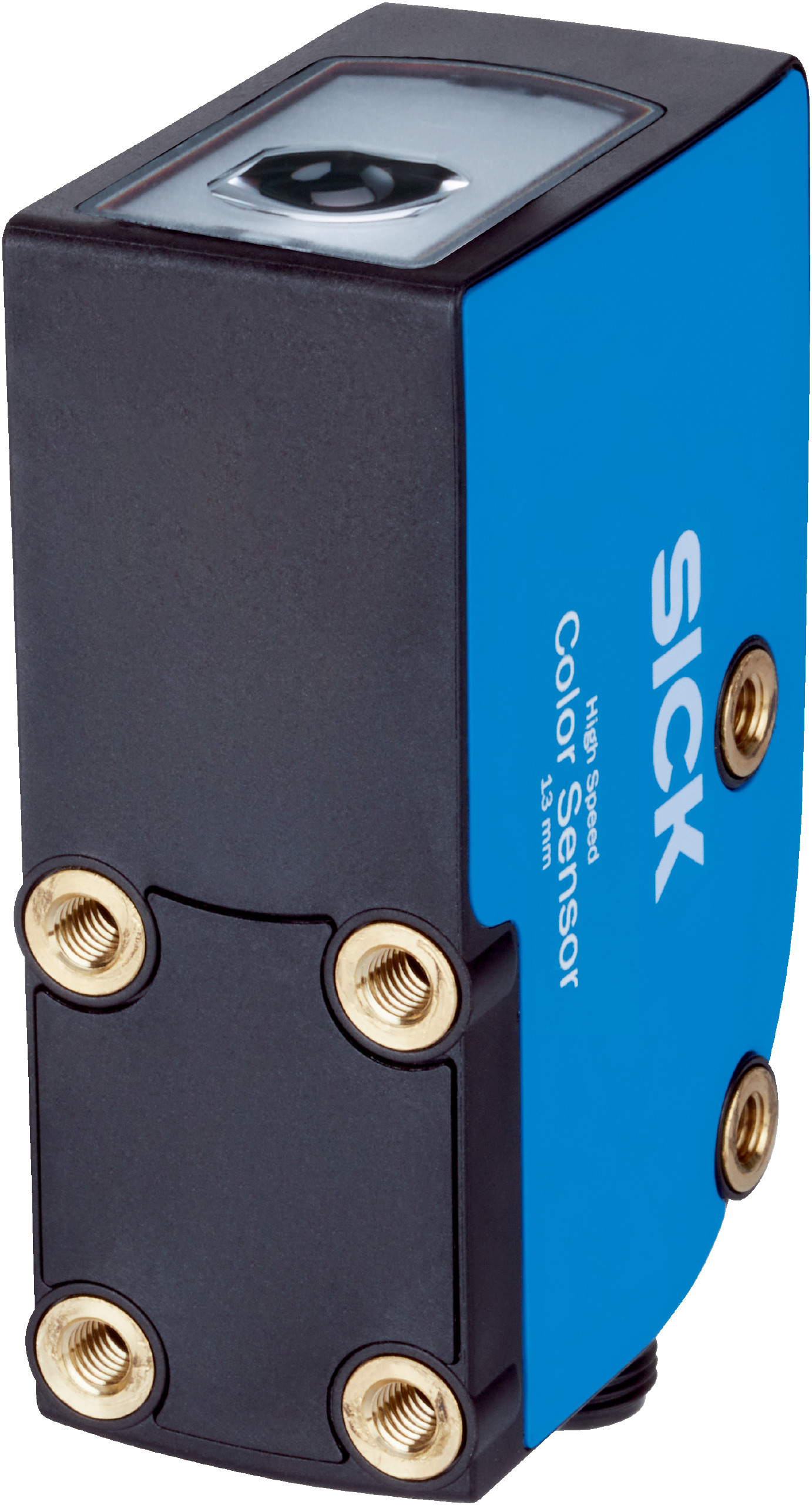

SICK RGB Color Sensor | IP67 Enclosure | 13.8 kHz Switching Frequency | X-Housing Design | by SICK
The SICK RGB Color Sensor is engineered for precision in industrial automation, featuring a robust IP67 enclosure and a rapid 13.8 kHz switching frequency. With a sensing distance of 13 mm and a versatile RGB LED light source, it excels in color detection and quality control applications, making it ideal for manufacturing and robotics. Its durable design ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Digital outputs: 2 hardware switching outputs (NPN)
- Digital inputs: 2 (In1, In2)
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: VISTAL®
- Optics material: PMMA
- Connection type: Plug, M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 78.5mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with IP67 enclosure rating for robust protection
- Two hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Short device side light emission with a 2 mm x 4 mm light spot size
- Protection class III with reverse polarity and short-circuit protection
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CSX-WNF1142252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
