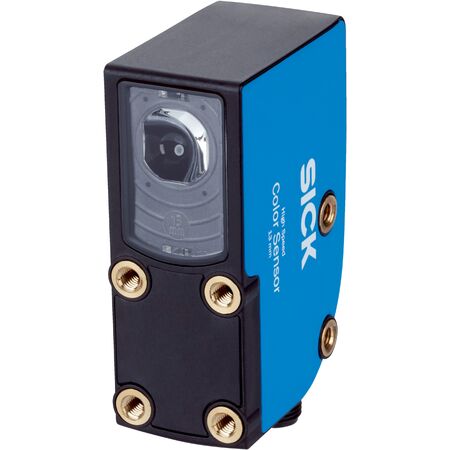

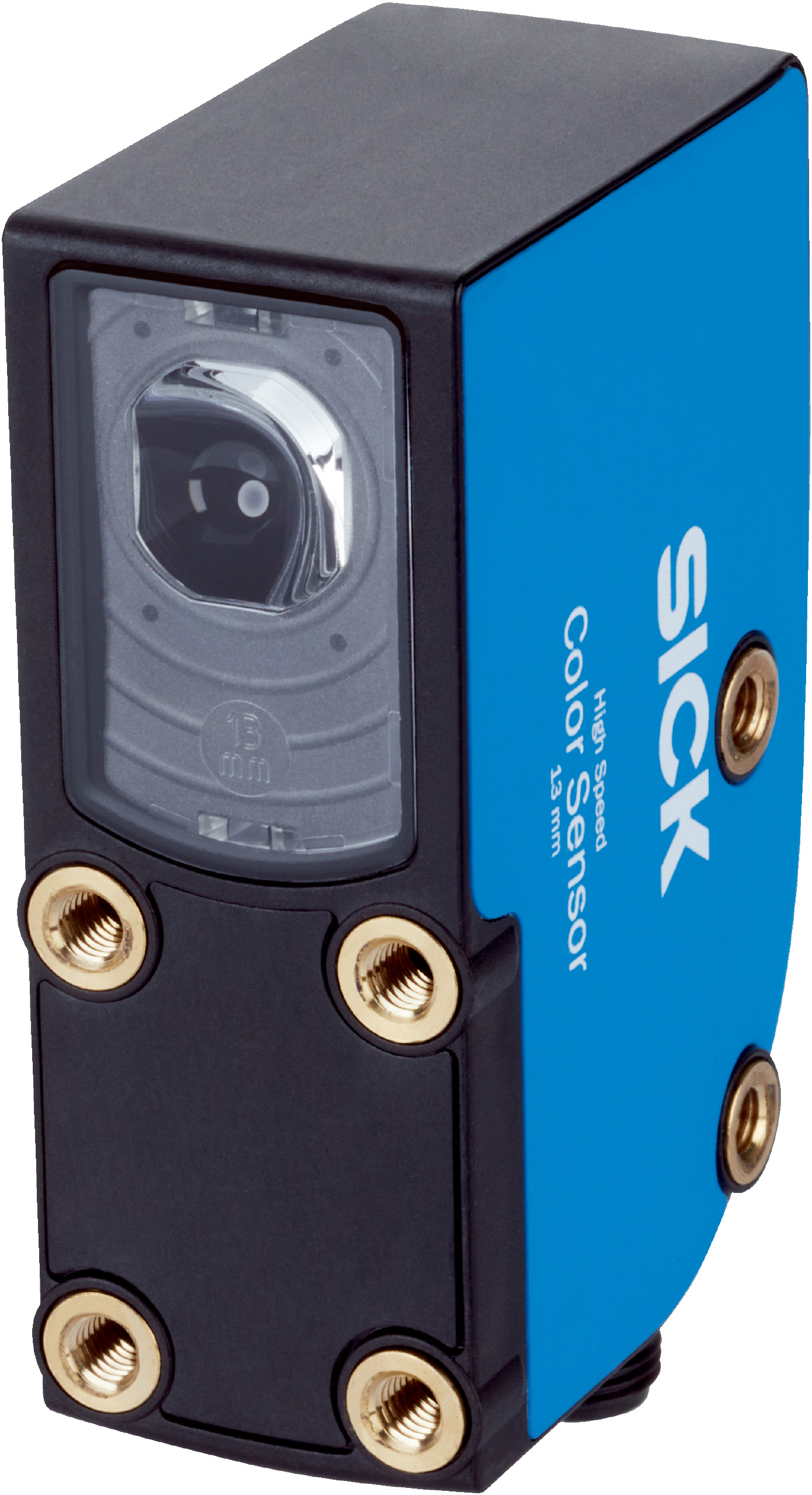

SICK RGB Color Sensor | IP67 Rated | 13 mm Sensing Distance | LED Light Source | by SICK
The SICK RGB Color Sensor is designed for industrial automation, offering a sensing distance of 13 mm with ±5 mm tolerance and an IP67 rated enclosure for dust and water resistance. Ideal for quality control and robotics applications, this sensor features a robust LED RGB light source with wavelengths of 460 nm, 530 nm, and 625 nm, ensuring precise color detection and reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Light source: LED RGB with wavelengths 460 nm, 530 nm, 625 nm
- Light spot size: 2 mm x 4 mm
- Connection type: Plug, M12, 5-pin
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Enclosure rating: IP67
- Safety: LED risk group 1, Photobiological safety IEC EN 62471 certified
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 13 mm with ±5 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with long side light emission
- Two hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes including single value and multi value teach-in
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 120 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CSX-WNF1141252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
