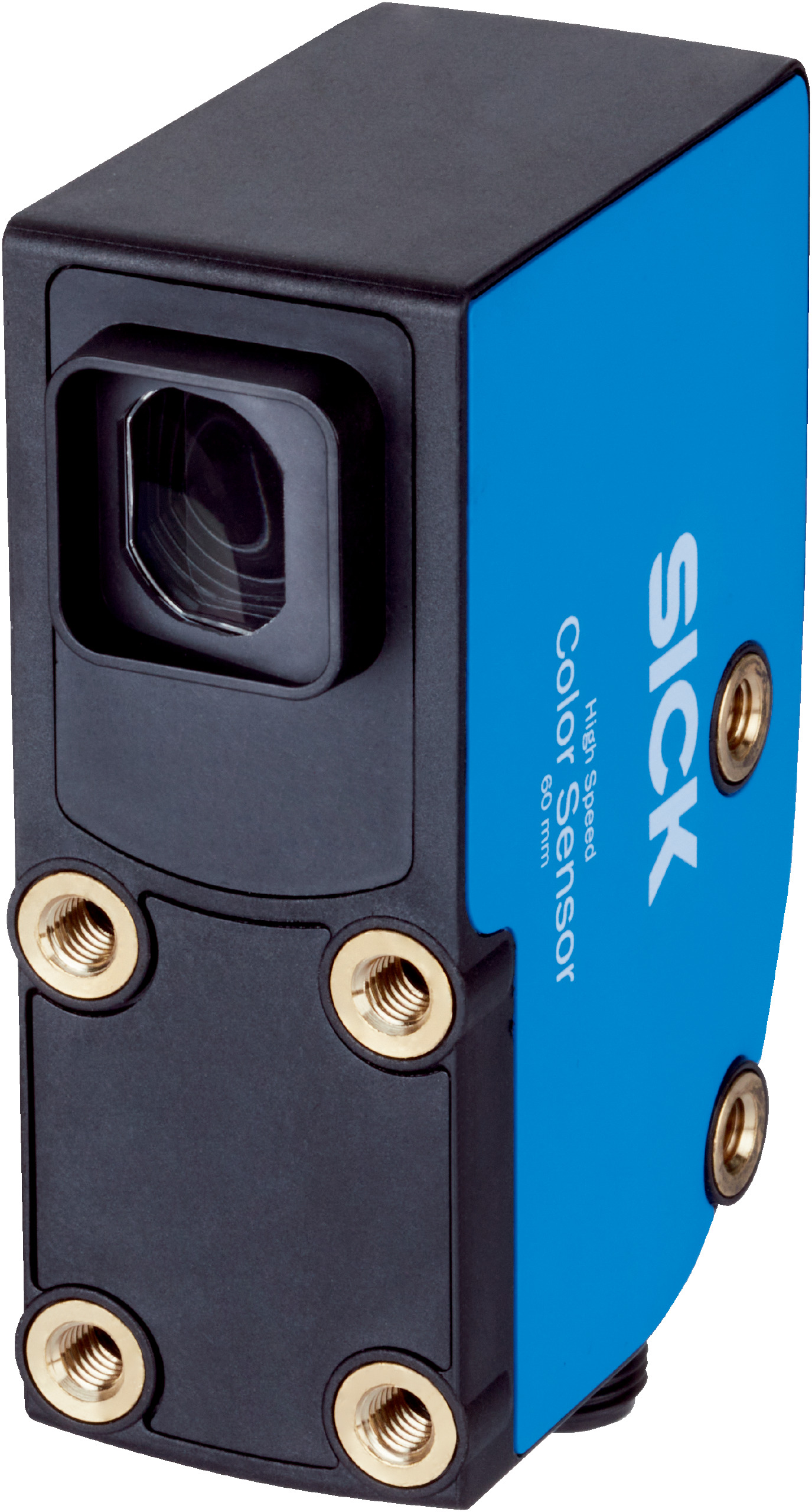

SICK RGB Color Sensor | IP67 Rated | 60mm Sensing Distance | 13.8kHz Switching Frequency | by SICK
The SICK RGB Color Sensor is designed for industrial automation, offering a 60mm sensing distance with ±9mm tolerance and an IP67 rated enclosure for dust and water protection. With a fast 13.8kHz switching frequency and RGB LED light source, it's perfect for quality control and robotics applications, ensuring reliable color detection and object sensing in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Light emission: Long side of housing
- Light spot size: Ø 12 mm
- Output mode: 2 colors in standard/best fit mode, 3 colors in coded mode
- Available job banks: 4
- MTTFD: 263.7 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with glass optics
- Two hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +60°C
- Short-circuit protected outputs and reverse polarity protection
- Plug M12, 5-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 120 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Non-volatile memory reduces electronic waste by retaining settings without power
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

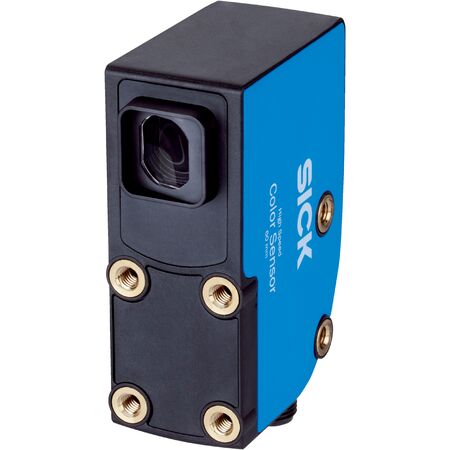

The SICK CSX-WNFA541252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
