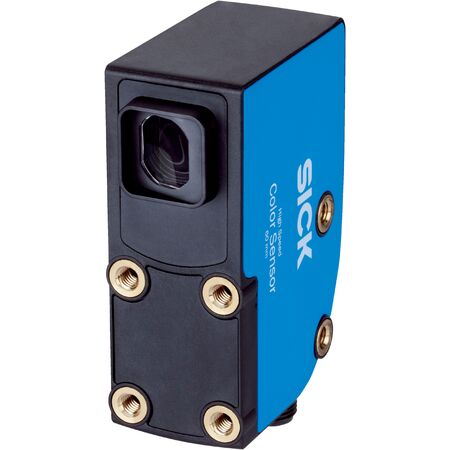

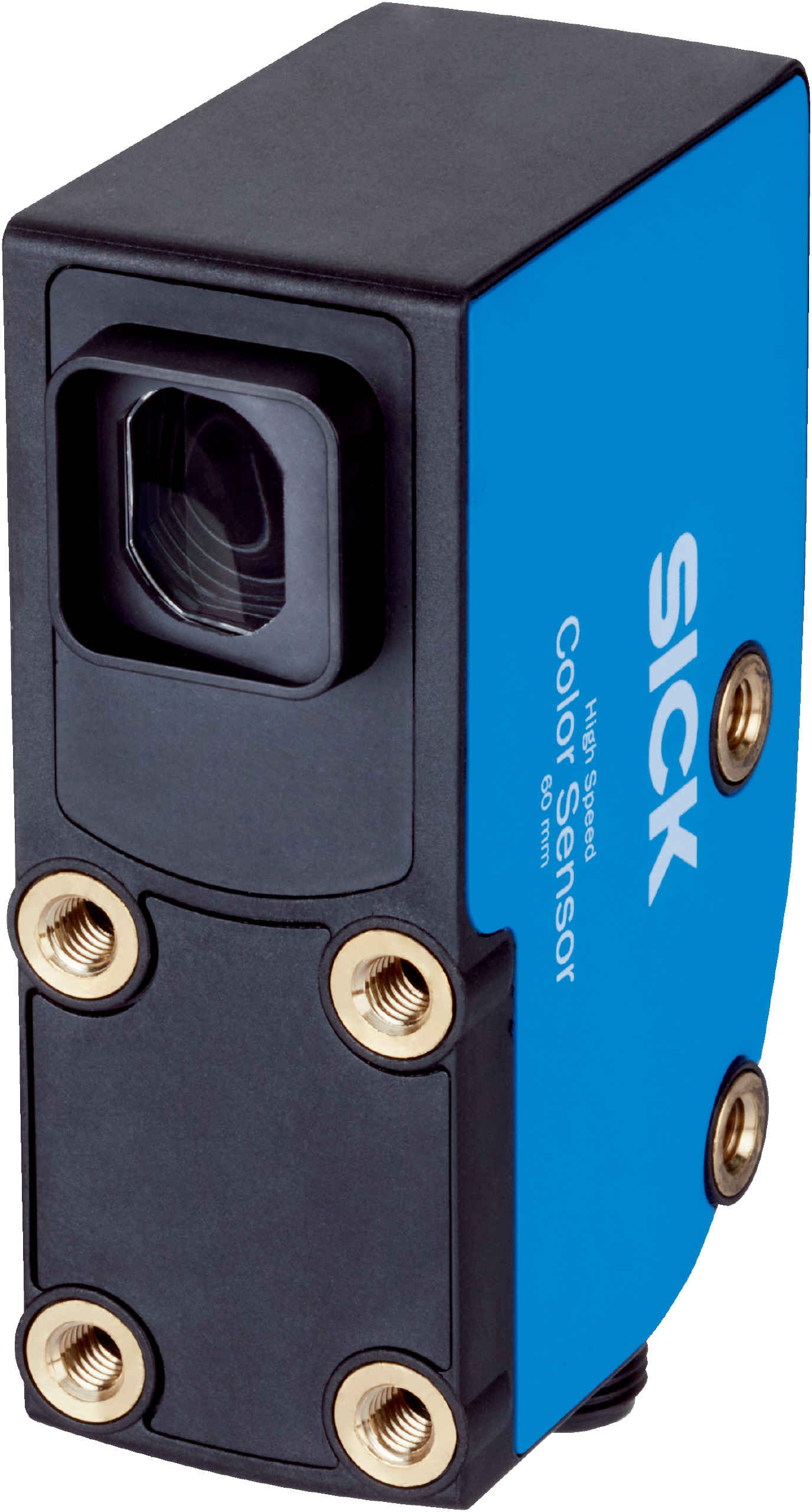

SICK RGB Color Sensor | IP67 Rated | 60mm Sensing Distance | IO-Link Compatible | by SICK
The SICK RGB Color Sensor is designed for industrial automation, featuring a 60mm sensing distance and an IP67 rated enclosure for harsh environments. With a fast response time of 36 µs and support for IO-Link integration, this sensor is perfect for quality control in manufacturing and robotics applications, ensuring precise color detection and object identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Protection class: III
- Connection type: M12, 5-pin plug
- Housing material: VISTAL®
- Optics material: Glass
- Enclosure rating: IP67
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- LED risk group: 1
- MTTFD: 263.7 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths 460 nm, 530 nm, 625 nm
- X-housing design with long side light emission
- Two hardware switching outputs and 24 virtual outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Supports single and multi-value teach-in modes
- Push-pull PNP/NPN switching outputs
- IP67 rated enclosure for harsh environments
- Operating temperature range from -20°C to +60°C
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WBFA54125AA10Z RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color detection applications.
