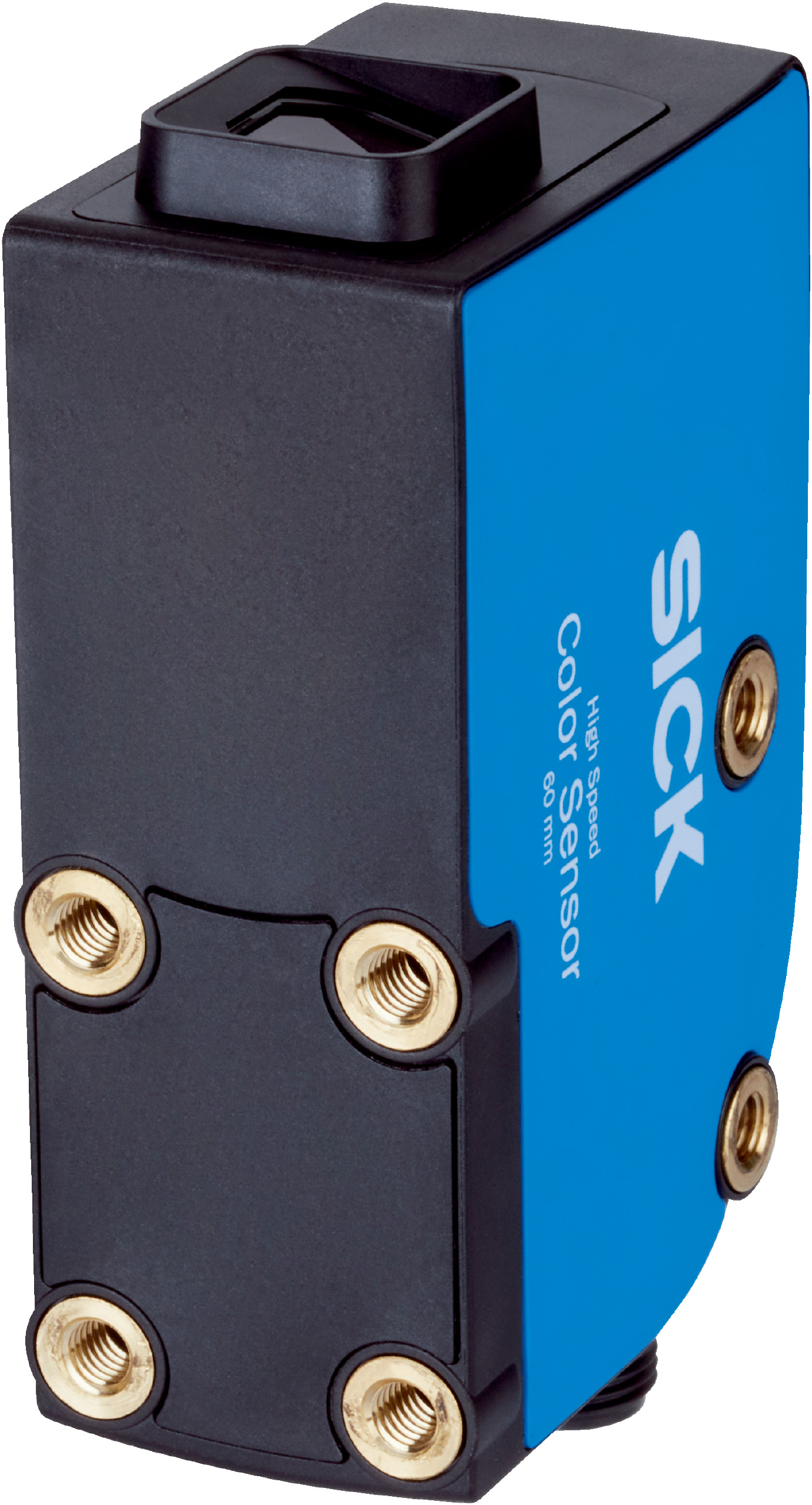

SICK RGB Color Sensor | IP67 Rated | 60mm Sensing Distance | NPN Output | by SICK
The SICK RGB Color Sensor is designed for industrial automation, featuring a 60mm sensing distance and an IP67 enclosure for dust and water resistance. With a fast response time of 36 µs and continuous sensitivity adjustment, it's perfect for quality control and robotics applications, ensuring reliable color detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Ripple: ≤ 5 V pp
- Current consumption: < 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Switching output type: NPN
- Light source: LED RGB with wavelengths 460 nm, 530 nm, 625 nm
- Light spot size: Ø 12 mm
- Output channels: 2 hardware switching outputs
- Teach-in modes: Single value and multi value
- Sensitivity adjustment: Continuous 0 to 999
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection type: Plug, M12, 5-pin
- Weight: 94 g
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g/11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 78.5mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with ±9 mm tolerance
- RGB LED light source with wavelengths of 460 nm, 530 nm, and 625 nm
- X-housing design with glass optics
- Two hardware switching outputs with NPN switching output
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 120 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Non-volatile memory reduces electronic waste by retaining settings without power
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

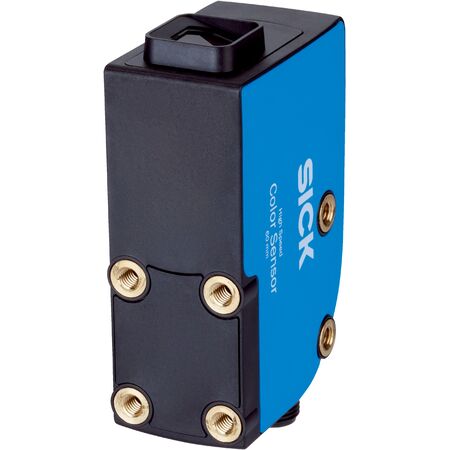

The SICK CSX-WNFA542252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
