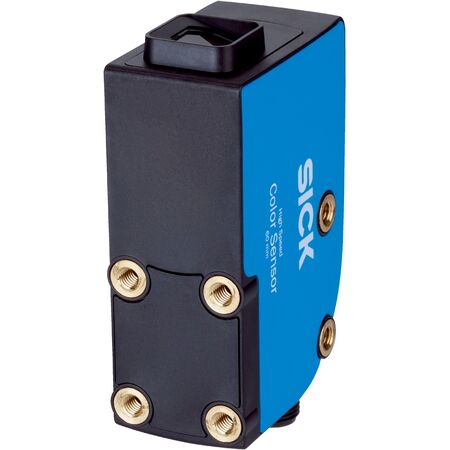

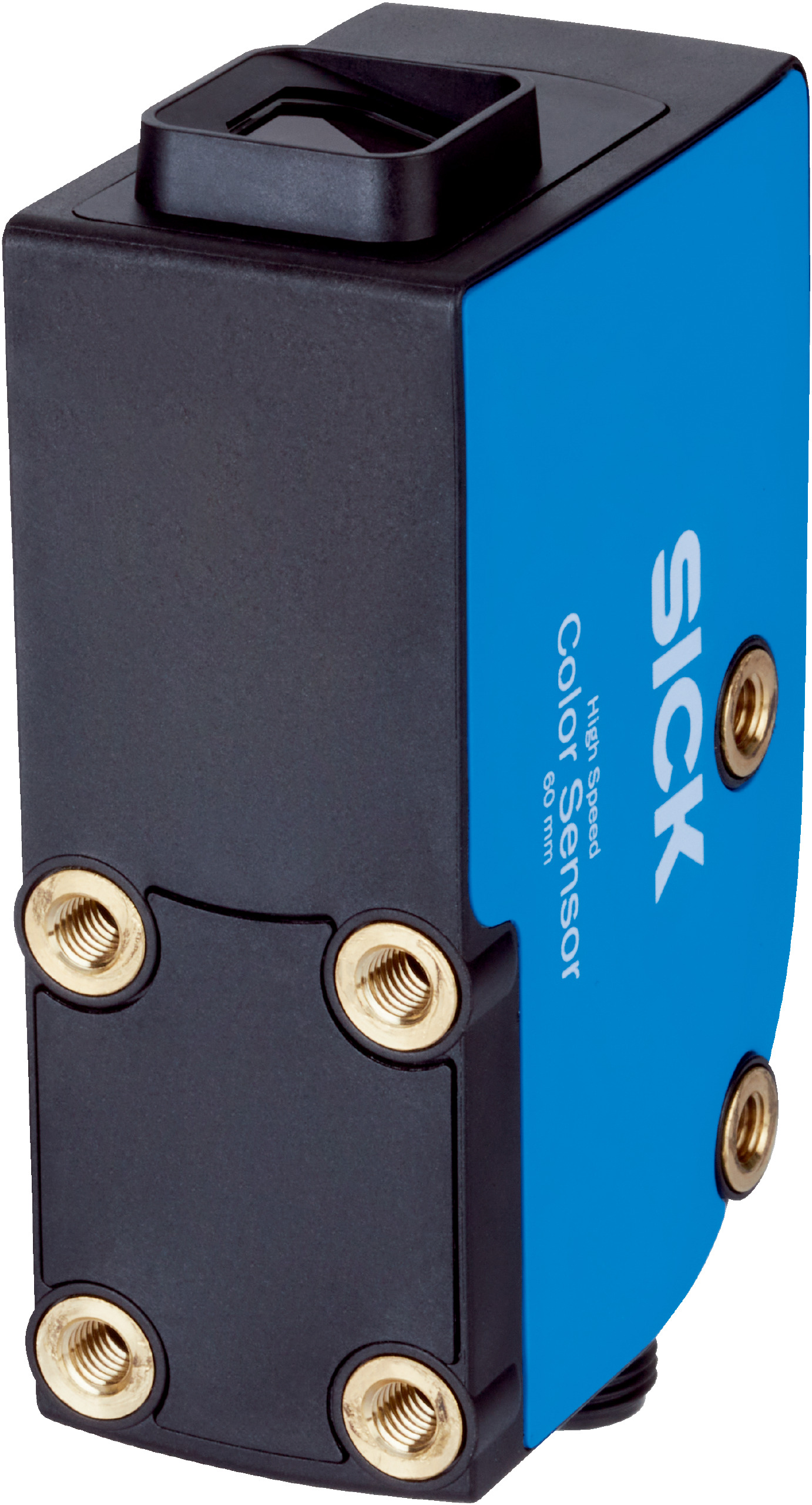

SICK RGB Color Sensor | IP67 Rated | X-Housing Design | 60mm Sensing Distance | by SICK
The SICK RGB Color Sensor is engineered for precision in industrial automation, featuring a robust IP67 rated enclosure and a sensing distance of 60 mm with an RGB LED light source. Ideal for quality control and robotics applications, this sensor offers continuous sensitivity adjustment and multiple teach-in modes, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 120 mA
- Switching frequency: 13.8 kHz
- Response time: 36 µs
- Jitter: 18 µs
- Output current max: 100 mA
- Switching output: PNP with HIGH = VS - 3 V, LOW = 0 V
- Light source: LED RGB with wavelengths 460 nm, 530 nm, 625 nm
- Light spot size: 12 mm diameter
- Protection class: III
- Enclosure rating: IP67
- Connection type: M12 5-pin plug
- Weight: 94 g
- Safety-related parameters MTTFD: 263.7 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Sensing distance of 60 mm with RGB LED light source
- X-housing design with glass optics
- Two hardware switching outputs with PNP switching
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes including single and multi-value teach-in
- IP67 rated enclosure for robust protection
- Operating temperature range from -20°C to +60°C
- Short device side light emission with round, large light spot
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection and color sensing
- Quality control in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSX-WPFA542252ZZZZ RGB LED Sensor is available for immediate purchase, ideal for industrial automation and color sensing applications.
