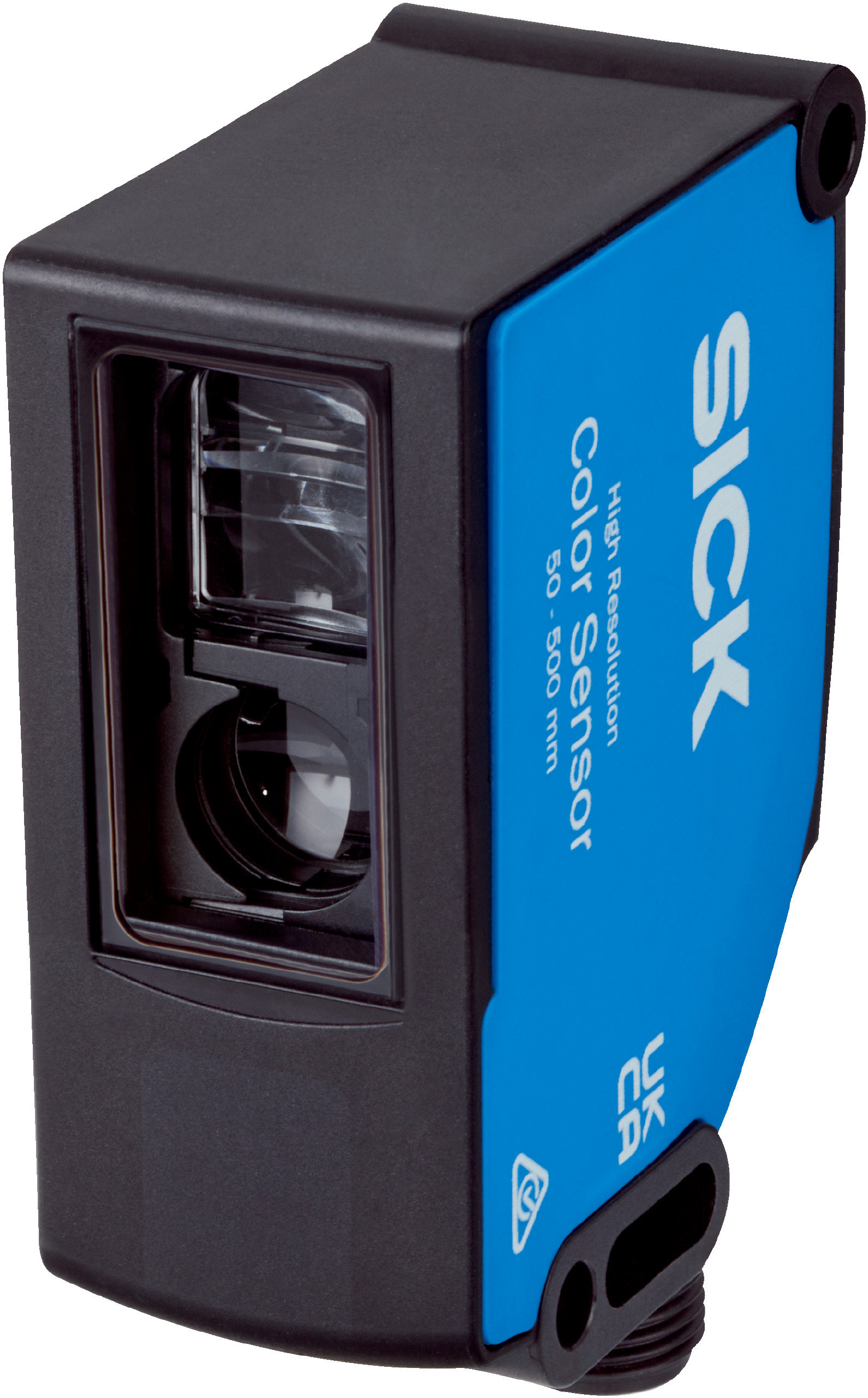

SICK RGB Color Sensor | Sensing Distance 50-500mm | IP67 Rated | LED RGB Light Source | by SICK
The SICK RGB Color Sensor is designed for precise color detection and sorting in industrial automation. With a sensing distance of 50 mm to 500 mm and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for quality control and packaging verification, this sensor features continuous sensitivity adjustment and multiple output modes for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 50 mm to 500 mm
- Light source: LED RGB with wavelengths 450 nm, 550 nm, 610 nm
- Light spot size: Diameter 8 mm to 32 mm
- Output modes: 2 colors in standard/best fit mode, 3 colors in coded mode
- Sensitivity adjustment: Continuous from 0 to 999
- Switching frequency: 4 kHz
- Response time: 120 µs
- Jitter: 60 µs
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: Less than 150 mA
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: VISTAL®
- Optics material: Glass
- Connection type: M12, 5-pin plug
- Safety rating: LED risk group 2
- MTTFD: 179.9 years
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 500 mm
- S-housing design with LED RGB light source
- Long side light emission with round, large light spot
- Single and multi-value teach-in modes
- Color mode options: Color only or Color plus Illumination
- Two hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- IO-Link V1.1.2 communication interface
- Push-pull PNP/NPN switching outputs with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for harsh environments
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor wiring to ensure proper setup and safety compliance.
Applications
- Industrial automation for color detection and sorting
- Quality control in manufacturing processes
- Packaging and labeling verification
- Material identification and inspection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
- Supports precise detection reducing waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

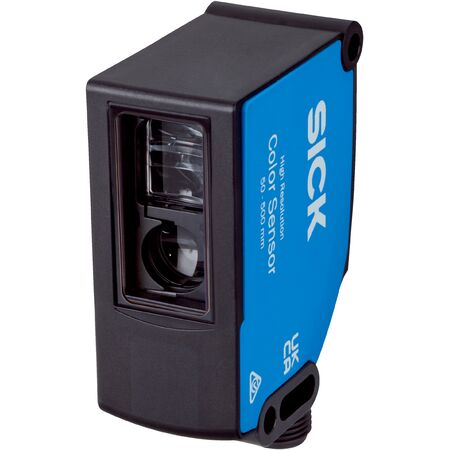

The SICK CSS-WBGAD4115AA10Z RGB LED Color Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
