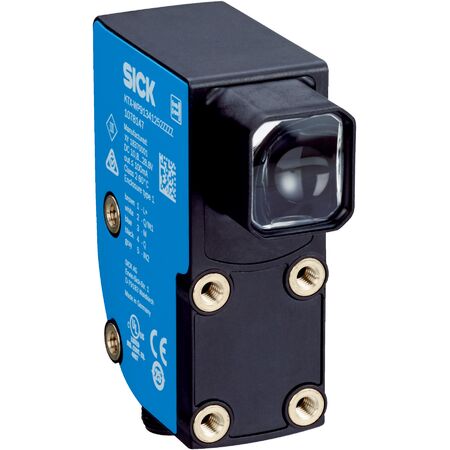

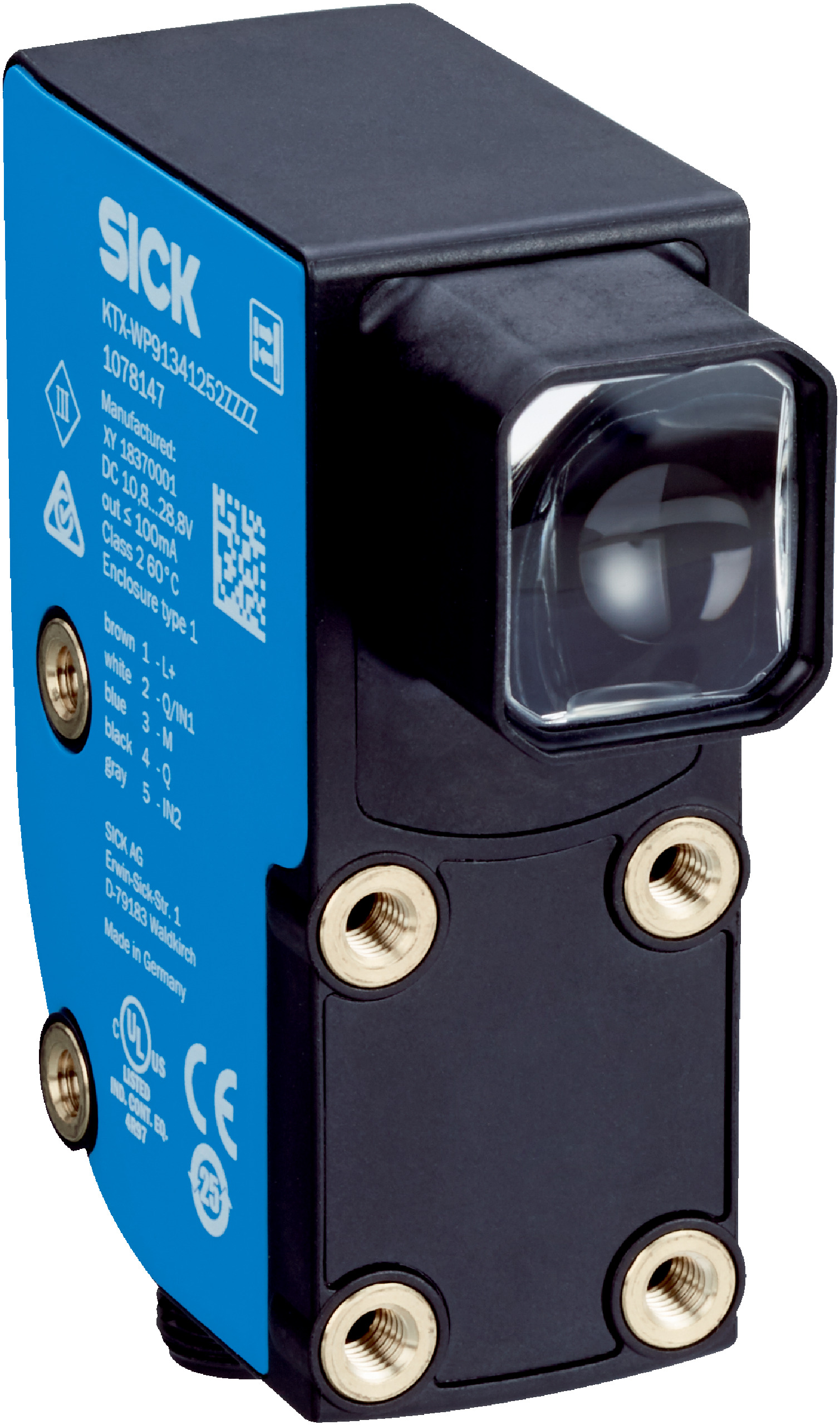

SICK RGB LED Sensor KTX-WB9A94125AZZZZ | IP67 Rated | 150mm Sensing Distance | IO-Link Communication | by SICK
The SICK RGB LED Sensor KTX-WB9A94125AZZZZ offers a sensing distance of up to 150 mm with ±8 mm tolerance, making it ideal for industrial automation and precise object detection. With an IP67 rating for dust and water resistance, this sensor features multiple teach-in modes and a robust LED RGB light source, ensuring reliable performance in various applications, including quality control and machine safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 150 mm with ±8 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: Ø 12 mm, round and large
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Output function: Light/dark switching
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 25 kHz
- Response time: 20 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20°C to +60°C
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®
- Optics material: Glass
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard device type with large housing design
- Sensing distance up to 150 mm with ±8 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with round, large light spot
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Quality control systems requiring precise sensing
- Machine safety and monitoring applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTX-WB9A94125AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
