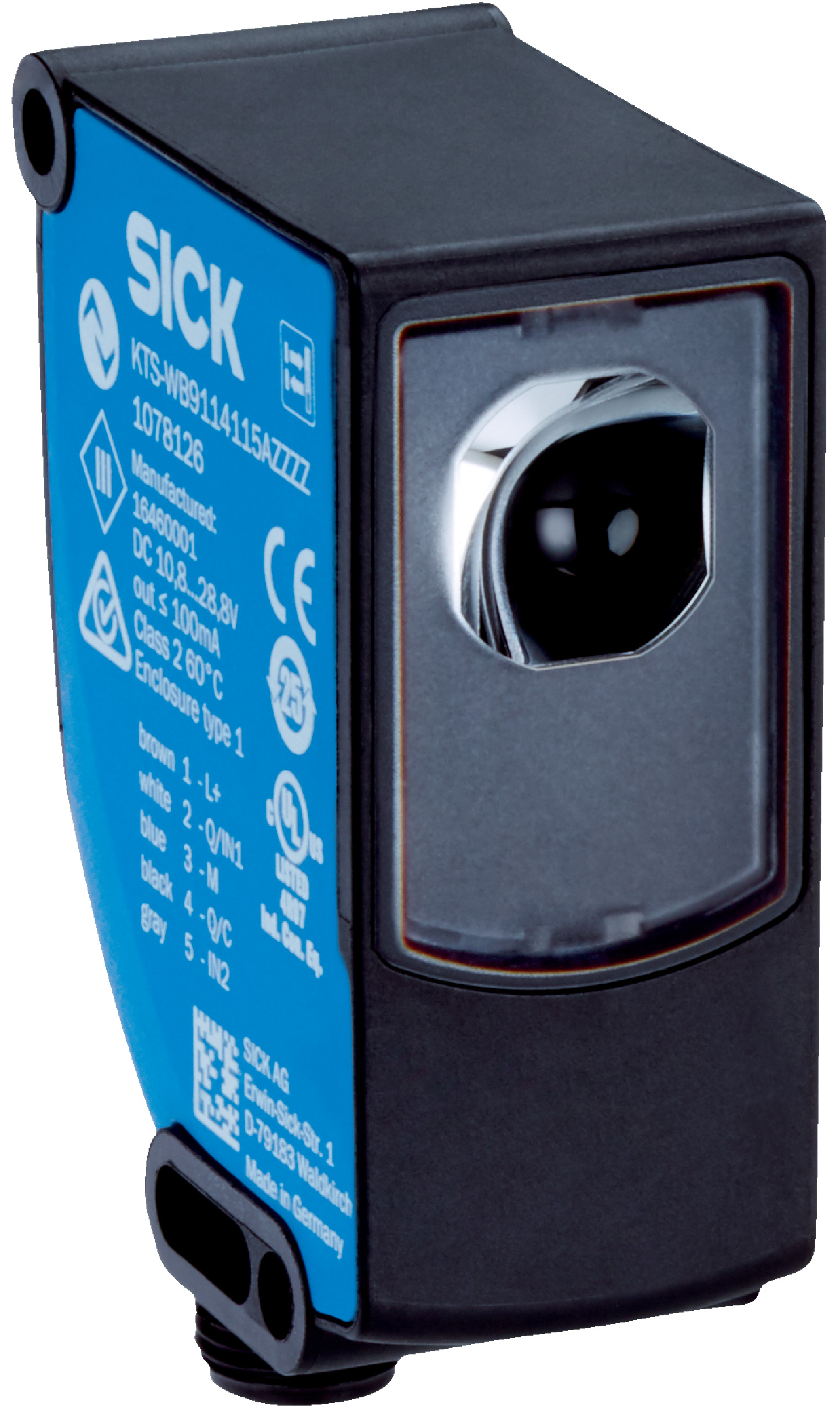

SICK RGB Sensor KTS-WB91241152ZZZZ | IP67 Rated | Light/Dark Switching | 50 kHz Frequency | by SICK
The SICK RGB Sensor KTS-WB91241152ZZZZ is designed for industrial automation, featuring an IP67 rated enclosure for dust and water resistance. With a switching frequency of 50 kHz and light/dark switching output, it ensures precise detection up to 25 mm. Ideal for environments requiring robust sensors, this device offers low power consumption and multiple teach-in modes for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Output function: Light/dark switching
- Output type: Push-pull PNP/NPN, HIGH = Uv - 3 V, LOW ≤ 3 V
- Max output current: 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock resistance: 30 g/11 ms per IEC 60068-2-27
- Enclosure rating: IP67
- Housing material: VISTAL®
- Optics material: COP
- Weight: 68 g
- Connection: Plug, M12, 5-pin
- Teach-in modes: 1-point, 2-point, dynamic, auto
- Light source wavelengths: 470 nm, 525 nm, 625 nm
- Light spot size: 1.2 mm x 5.3 mm
- Light spot direction: Vertical
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with middle housing design
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Sensing distance up to 25 mm with ±6 mm tolerance
- Light/dark switching output function with adjustable delay time
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
- Plug connection type M12, 5-pin
- Teach-in modes including 1-point, 2-point, dynamic, and auto mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and sensing applications
- Standard detection tasks requiring precise sensing distance
- Environments requiring robust IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable housing material VISTAL® and optics material COP for long service life
- IP67 rating ensures protection against dust and water, reducing replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK KTS-WB91241152ZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable and precise detection.
