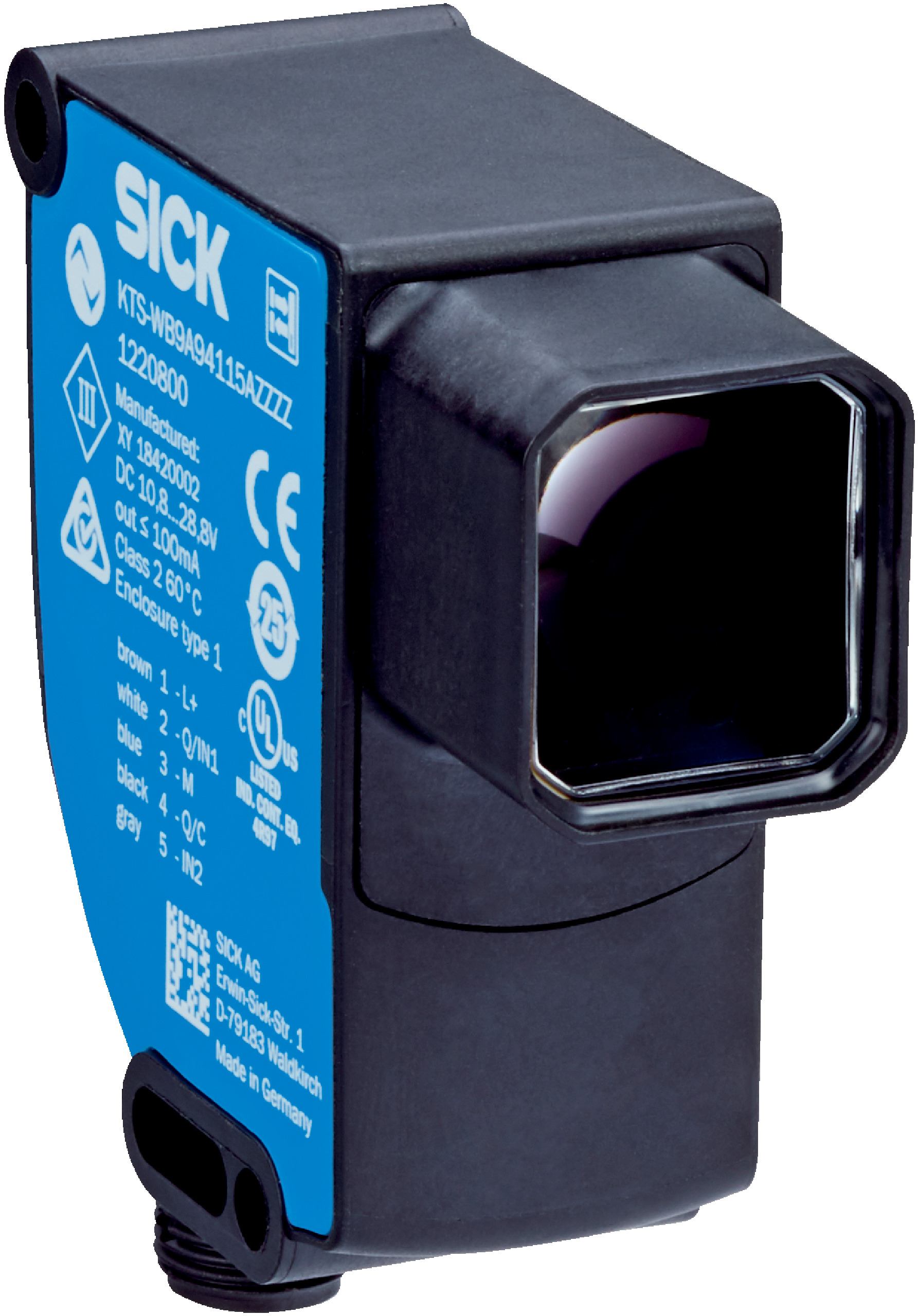

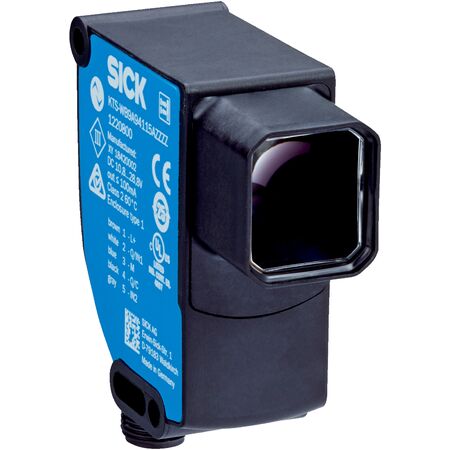

SICK RGB Sensor KTS-WB9134115AZZZZ | IP67 Rated | LED RGB Light Source | 40 mm Sensing Distance | by SICK
The SICK RGB Sensor KTS-WB9134115AZZZZ is designed for industrial automation sensing, featuring a long sensing distance of up to 40 mm and an LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm. With its robust IP67 rated housing and multiple teach-in modes, this sensor is perfect for object detection, quality control systems, and process monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 3.9 mm x 0.9 mm, vertical direction
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Connection type: Plug, M12, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock resistance: 30 g/11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with long sensing distance up to 40 mm
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from the long side of housing with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Adjustable delay time and light/dark switching output function
- IO-Link communication interface with digital inputs and outputs
- Push-pull switching output supporting PNP/NPN
- Protection class III with reverse polarity and short-circuit protection
- Robust housing made of VISTAL® with glass optics
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation sensing
- Object detection in manufacturing
- Quality control systems
- Process monitoring with IO-Link integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
- Compliant with China-RoHS and other environmental safety standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTS-WB9134115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
