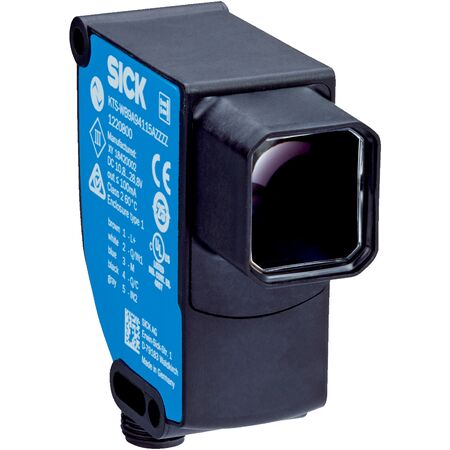

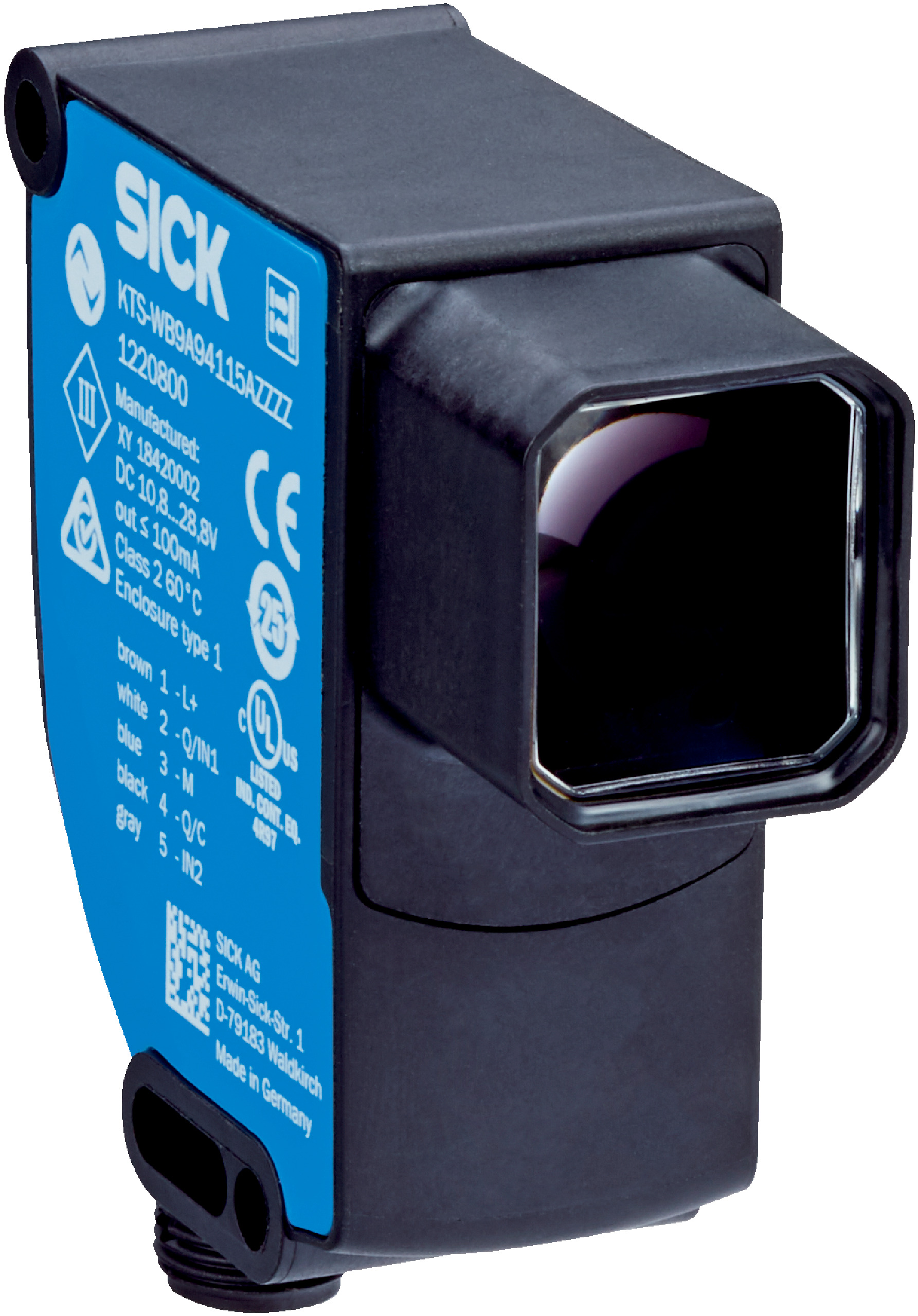

SICK RGB Sensor KTS-WB9A64115 | Long Sensing Distance | IP67 Rated | Fast Response Time | by SICK
The SICK RGB Sensor KTS-WB9A64115 is designed for industrial automation sensing, featuring a long sensing distance of up to 70 mm and a robust IP67 rated housing. With an RGB LED light source and a fast response time of 10 µs, this sensor is perfect for object detection and quality control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 70 mm with ±6 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Switching output: Push-pull PNP/NPN, max 100 mA
- Supply voltage: 10.8 V DC to 28.8 V DC with ≤ 5 V ripple
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Connection type: Plug, M12, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Weight: 68 g
- Housing material: VISTAL®
- Optics material: Glass
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with long sensing distance up to 70 mm
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with large round light spot Ø 10 mm
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Push-pull PNP/NPN switching output with 100 mA max output current
- High switching frequency of 50 kHz and fast response time of 10 µs
- Protection class III with reverse polarity and short-circuit protection
- Robust housing made of VISTAL® with glass optics and IP67 enclosure rating
- Operating temperature range from -20 °C to +60 °C
- Certified with EU, UK, ACMA, Moroccan conformity and cULus certificate
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation sensing
- Object detection in manufacturing
- Quality control systems
- Process monitoring with IO-Link integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V to 28.8 V DC
- Durable IP67 rated housing reduces environmental damage and extends product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTS-WB9A64115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
