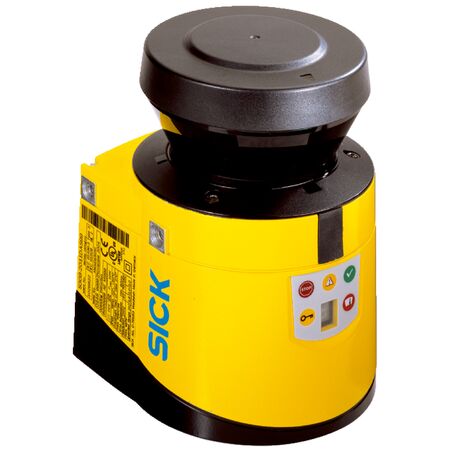

SICK S30B-2011CA Safety Sensor | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The SICK S30B-2011CA safety sensor offers a protective field range of 2 meters and a warning field range of 8 meters, making it ideal for indoor safety monitoring and industrial automation. With a 270° scanning angle and configurable resolution options, this sensor ensures precise detection and compliance with safety standards, perfect for machine safeguarding and access control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK S30B-2011CA Safety Sensor | 2m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
Brand: SICK
SKU: 1026821
Alternatively Known As: SICK S30B Safety Sensor, S300 Advanced Safety Sensor, SICK Indoor Safety Scanner
Technical Specifications
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution configurable between 30 mm and 70 mm
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Outputs: 2 OSSD pairs at 250 mA, 3 diagnostic outputs at 100 mA
- Protection class: II (EN 50178, EN 60950)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Housing material: Aluminum die cast
- Optics cover: Polycarbonate with scratch-resistant coating
- Laser type: Pulsed laser diode, wavelength 905 nm, Laser class 1
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m with triple field sets
- 270° scanning angle with configurable resolution options (30 mm to 70 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple sampling and monitoring case switching capabilities
- Integrated configuration memory and safe SICK device communication via EFI
- Robust aluminum die cast housing with IP65 rating and scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring
- Industrial automation
- Machine safeguarding
- Access control and perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable construction reduces waste and replacement frequency
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK S30B-2011CA safety sensor is available for immediate purchase, ideal for industrial indoor safety and automation applications.
