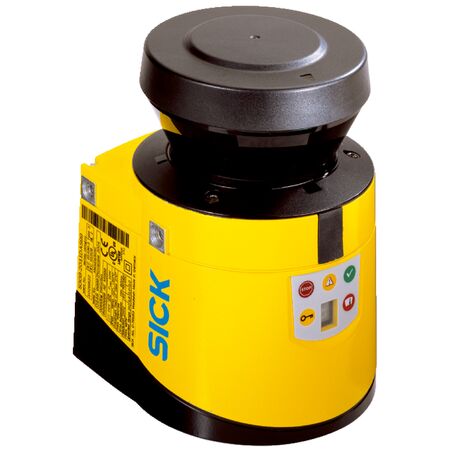

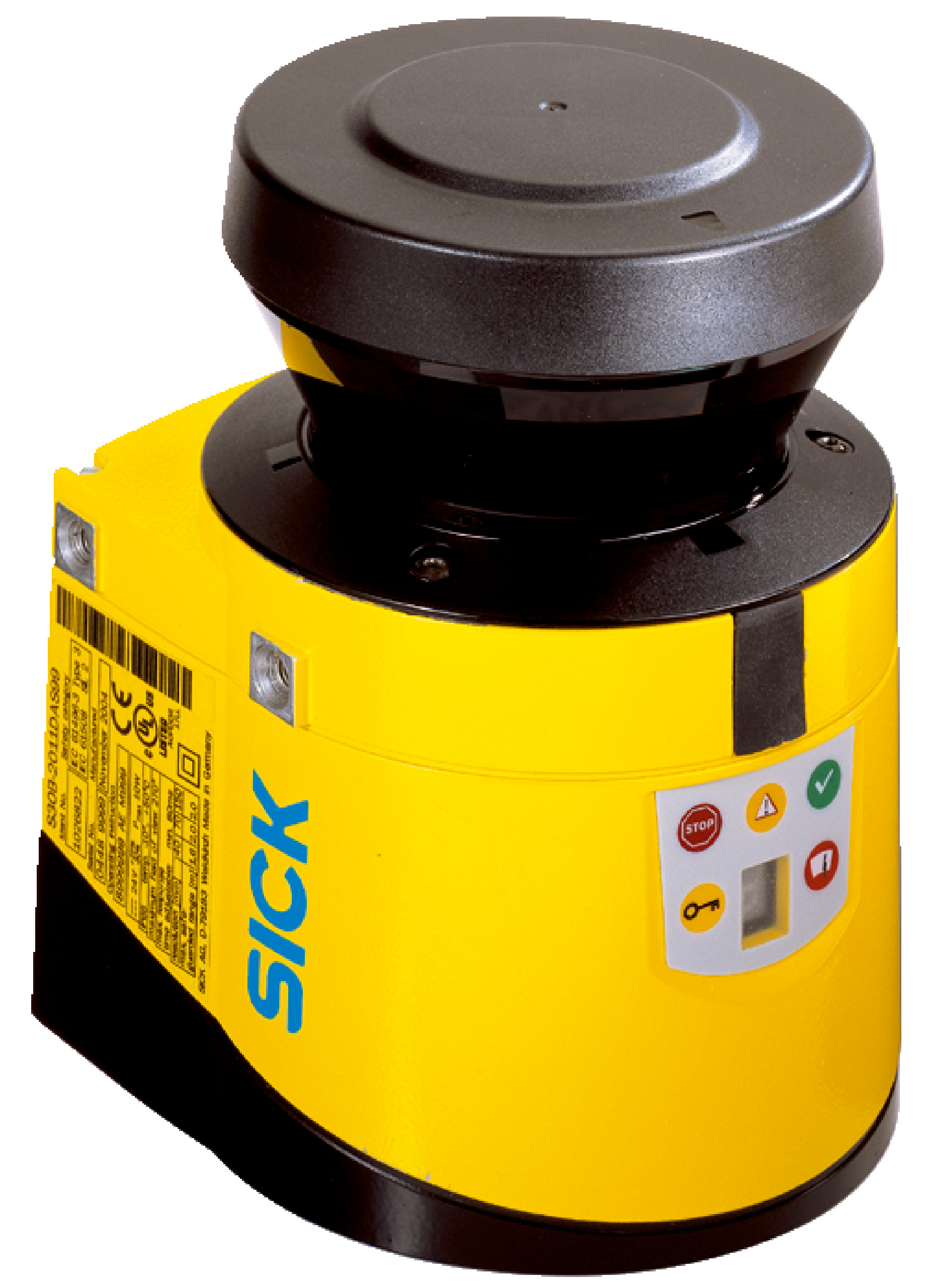

SICK S30B-2011GB Safety Sensor | 2m Protective Range | 30m Distance Measurement | IP65 Rated | by SICK
The SICK S30B-2011GB Safety Sensor offers a protective field range of 2m and a warning field range of 8m, making it ideal for indoor safety monitoring and industrial automation. With a distance measuring range of up to 30m and a robust aluminum housing rated IP65, this sensor ensures reliable performance in various applications, including machine safeguarding and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 2 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Number of field sets: 16
- Number of fields: 48
- Scanning angle: 270°
- Resolution configurable between 30 mm and 70 mm
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Outputs: 2 OSSD pairs (2 x 250 mA), 3 application diagnostic outputs (3 x 100 mA)
- Protection class: II (EN 50178, EN 60950)
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Housing material: Aluminum die cast
- Optics cover: Polycarbonate with scratch-resistant coating
- Laser wavelength: 905 nm
- Laser class: 1
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 2 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m with triple field sets
- 16 field sets and 48 fields for comprehensive monitoring
- 270° scanning angle with configurable resolution options (30 mm to 70 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock, external device monitoring, and dynamic protective field switching
- Robust aluminum die cast housing with IP65 rating and scratch-resistant polycarbonate optics cover
- Pulsed laser diode light source with 905 nm wavelength and laser class 1 safety
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards.
Applications
- Indoor safety monitoring
- Industrial automation
- Machine safeguarding
- Access control and perimeter protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK S30B-2011GB S300 Expert Indoor Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
