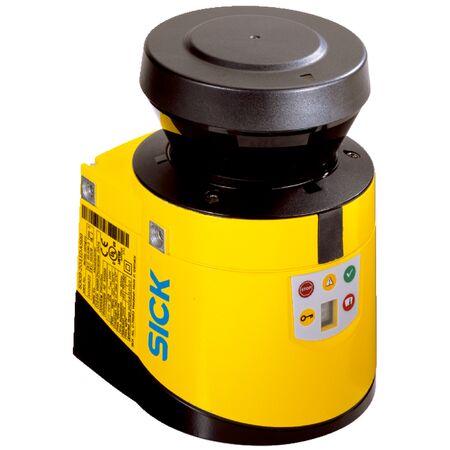

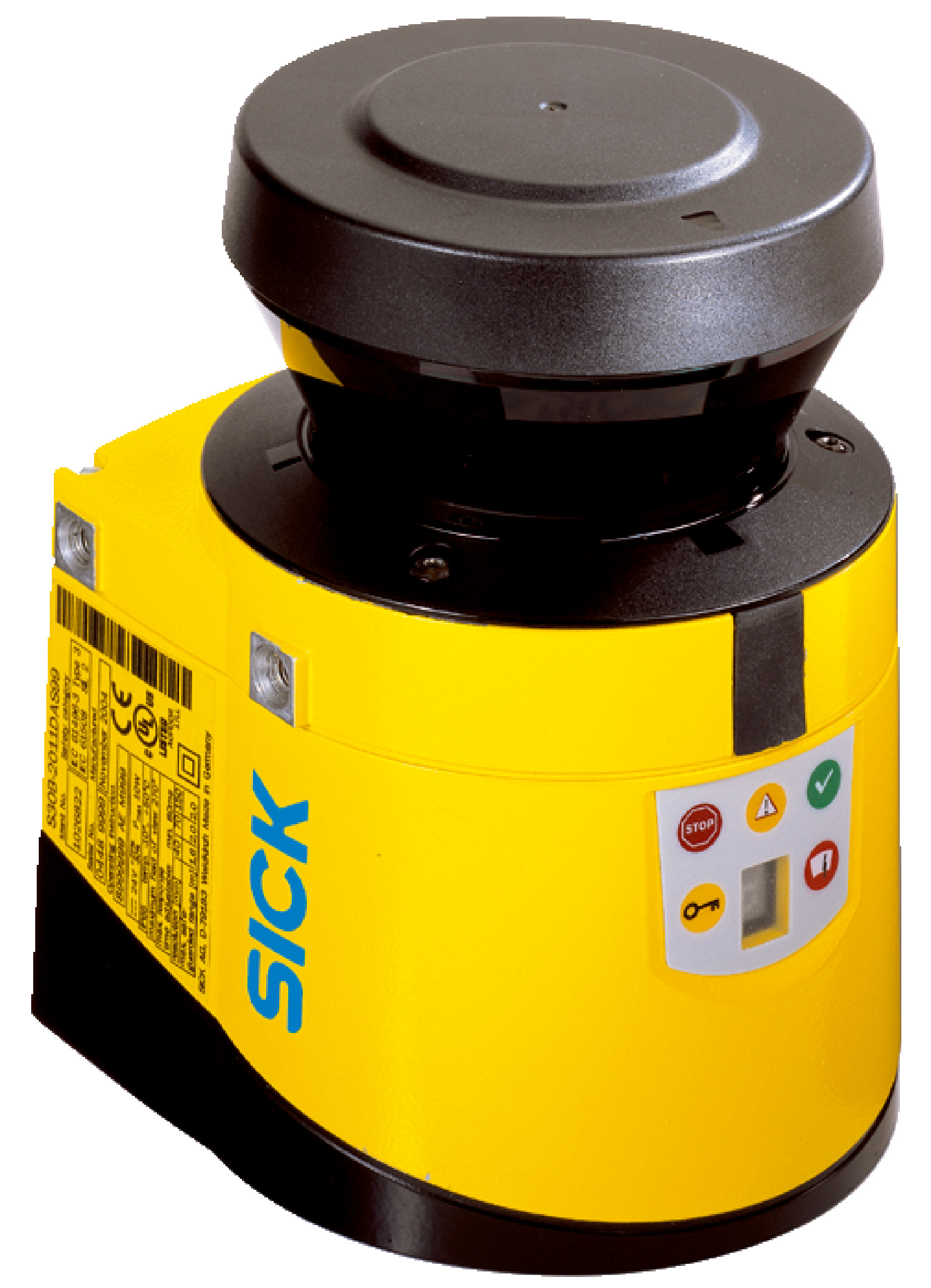

SICK S30B-3011BA Safety Sensor | 3m Protective Range | 30m Distance Measuring | IP65 Rated | by SICK
The SICK S30B-3011BA safety sensor offers a protective field range of 3 meters and a warning field range of 8 meters, making it ideal for indoor safety monitoring in industrial automation. With a distance measuring capability of up to 30 meters and a 270° scanning angle, this sensor ensures reliable machine safety and protection. Built with a robust aluminum housing and IP65 rating, it withstands harsh environments while providing exceptional performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK S30B-3011BA Safety Sensor | 3m Protective Range | 30m Distance Measuring | IP65 Rated | by SICK
Brand: SICK
SKU: 1056427
Alternatively Known As: SICK S30B Safety Sensor, S300 Standard Safety Sensor, Indoor Laser Safety Sensor
Technical Specifications
- Product version: S300 Standard
- Model: Sensor without system plug
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Type of field set: Triple field sets
- Number of field sets: 1
- Number of fields: 3
- Scanning angle: 270°
- Resolution (configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock, external device monitoring, multiple sampling supported
- Configuration via PC with CDS software
- Connection: System plug with or without cable
- Universal I/Os: 5
- Outputs: 2 OSSD pairs (2x250 mA), 3 diagnostic outputs (3x100 mA)
- Supply voltage: 24 V DC (16.8 V to 30 V)
- Power consumption: 0.33 A to 1.7 A
- Housing: Aluminum die cast, yellow RAL 1021
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +50°C
- Shock and vibration resistance compliant with IEC standards
- Laser class: 1 (905 nm pulsed laser diode)
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m with triple field sets
- 270° scanning angle with configurable resolution options (30 mm to 150 mm)
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling capabilities
- RS-422 data output and RS-232 configuration interface
- Robust aluminum die cast housing with IP65 rating
- Pulsed laser diode light source with 905 nm wavelength
- Shock and vibration resistant compliant with IEC standards
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety sensor systems and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor safety monitoring
- Industrial automation
- Machine safety and protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 24 V DC supply
- Durable housing reduces need for frequent replacements
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK S30B-3011BA safety sensor is available for immediate purchase, ideal for indoor industrial safety and automation applications.
