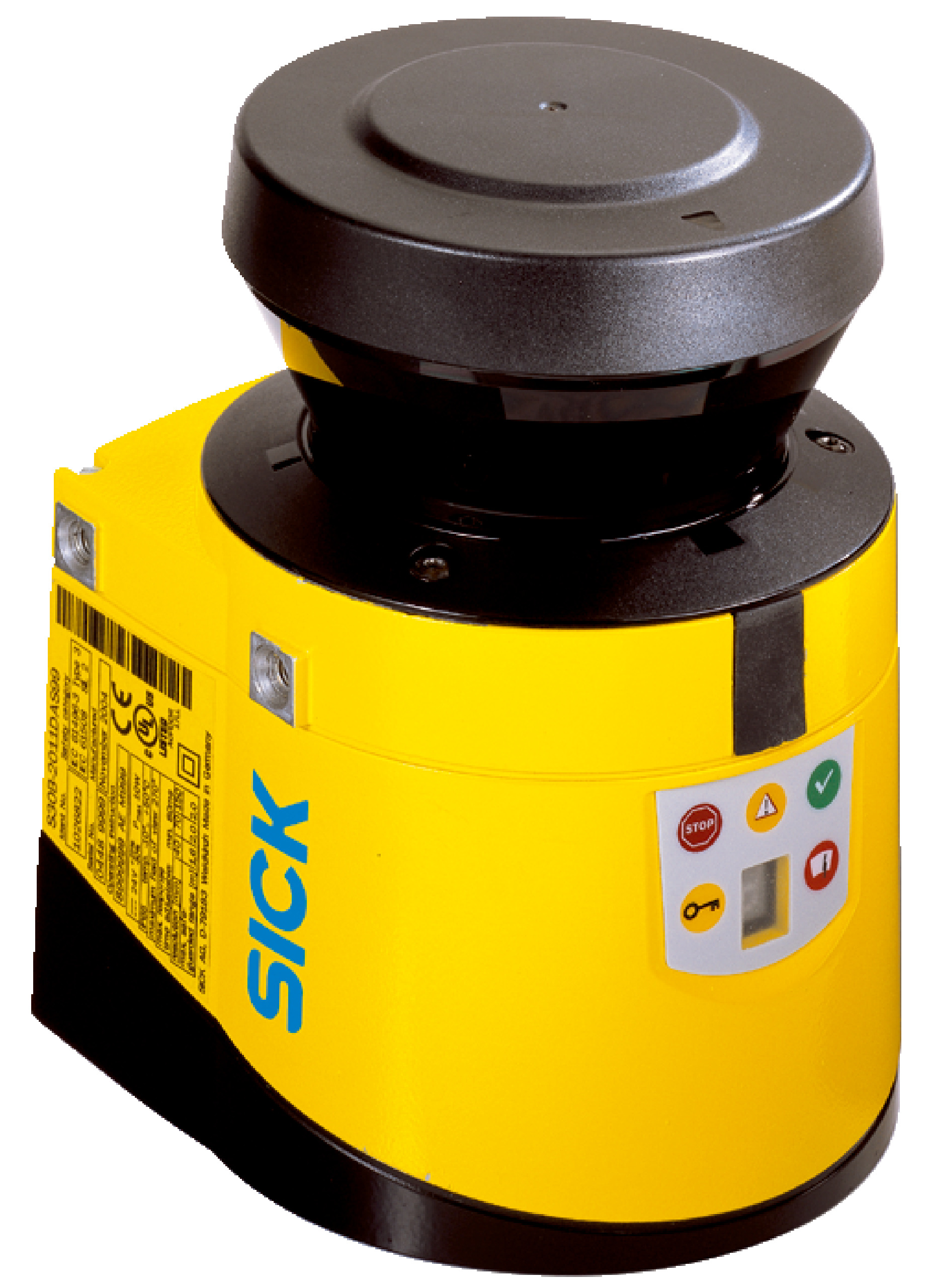

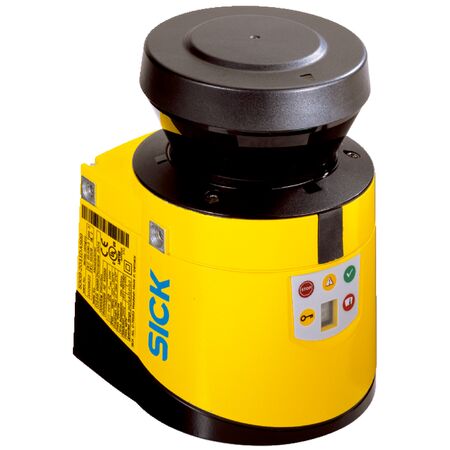

SICK S30B-3011GB Laser Safety Sensor | 3m Protective Range | 270° Scanning Angle | SIL 2 Safety Level | by SICK
The SICK S30B-3011GB Laser Safety Sensor offers a protective field range of 3 meters and a warning field range of 8 meters, making it ideal for indoor safety monitoring in industrial automation. With a 270° scanning angle and configurable resolution, this sensor ensures precise detection and safety compliance, perfect for machine and personnel protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 3 m
- Warning field range: 8 m at 15% reflectivity
- Distance measuring range: 30 m
- Scanning angle: 270°
- Resolution configurable: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
- Angular resolution: 0.5°
- Response time: 80 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 0.33 A to 1.7 A
- Outputs: 2 x 250 mA OSSD pairs, 3 x 100 mA diagnostic outputs
- Protection class: III (EN 50178, EN 60950)
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Housing material: Aluminum die cast
- Optics cover: Polycarbonate with scratch-resistant coating
- Laser type: Pulsed laser diode, wavelength 905 nm, Laser class 1
- Dimensions (H x L x W): 152mm x 106mm x 102mm
- Weight: 1.2 kg
Key Features
- Protective field range of 3 m and warning field range of 8 m at 15% reflectivity
- Distance measuring range up to 30 m
- Triple field sets with 16 field sets and 48 fields
- 270° scanning angle with configurable resolution from 30 mm to 150 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock, external device monitoring, and dynamic protective field switching
- PC configuration via CDS software with RS-232 and RS-422 interfaces
- Robust aluminum die cast housing with IP65 rating and scratch-resistant polycarbonate optics cover
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and electrical standards.
Applications
- Indoor safety monitoring
- Industrial automation safety
- Machine and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable construction reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK S30B-3011GB S300 Expert Indoor Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
