SICK Safety Controller SYS/SGD-W4100010001BX4 | Category 3 | PL d Performance Level | IP20 & IP67 Rated | by SICK
The SICK Safety Controller SYS/SGD-W4100010001BX4 is designed for industrial safety monitoring and control, featuring a Category 3 safety rating and PL d performance level. With a robust diagnostic coverage of 80% and a mean time to dangerous failure of 250 years, this system ensures reliable presence detection for machine safeguarding and automation safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety category: Category 3 (EN ISO 13849-1)
- Performance level: PL d (EN ISO 13849-1)
- Performance class: SRS/SRSS D (IEC TS 62998-1)
- PFHD: 1.0 * 10^-7
- Diagnostic coverage: 80%
- MTTFD: 250 years
- Detection zone: 30 mm to 100 mm
- Pulse frequency: 10 Hz
- Supply voltage: 24 V DC (19.2 V to 30 V)
- Connection type: Spring terminals for controller, M8 3-pin connector for sensors
- Enclosure rating: IP20 for controller, IP67 for sensors
- Operating temperature: -25 °C to 55 °C (controller), -40 °C to 60 °C (sensors)
- Response time: ≤ 160 ms overall system
- Light type: Visible red light, 650 nm wavelength
- Light spot size: Ø 7 mm at 50 mm distance
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Natural protection due to the material
- Category 3 safety-related parameters (EN ISO 13849-1)
- Performance level PL d (EN ISO 13849-1)
- Performance class SRS/SRSS D (IEC TS 62998-1)
- Mean time to dangerous failure (MTTFD) of 250 years
- Diagnostic coverage of 80%
- Mean probability of dangerous failure per hour (PFHD) 1.0 * 10^-7
- Detection zone from 30 mm to 100 mm

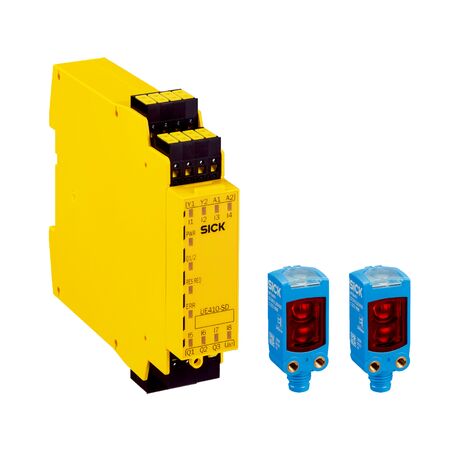

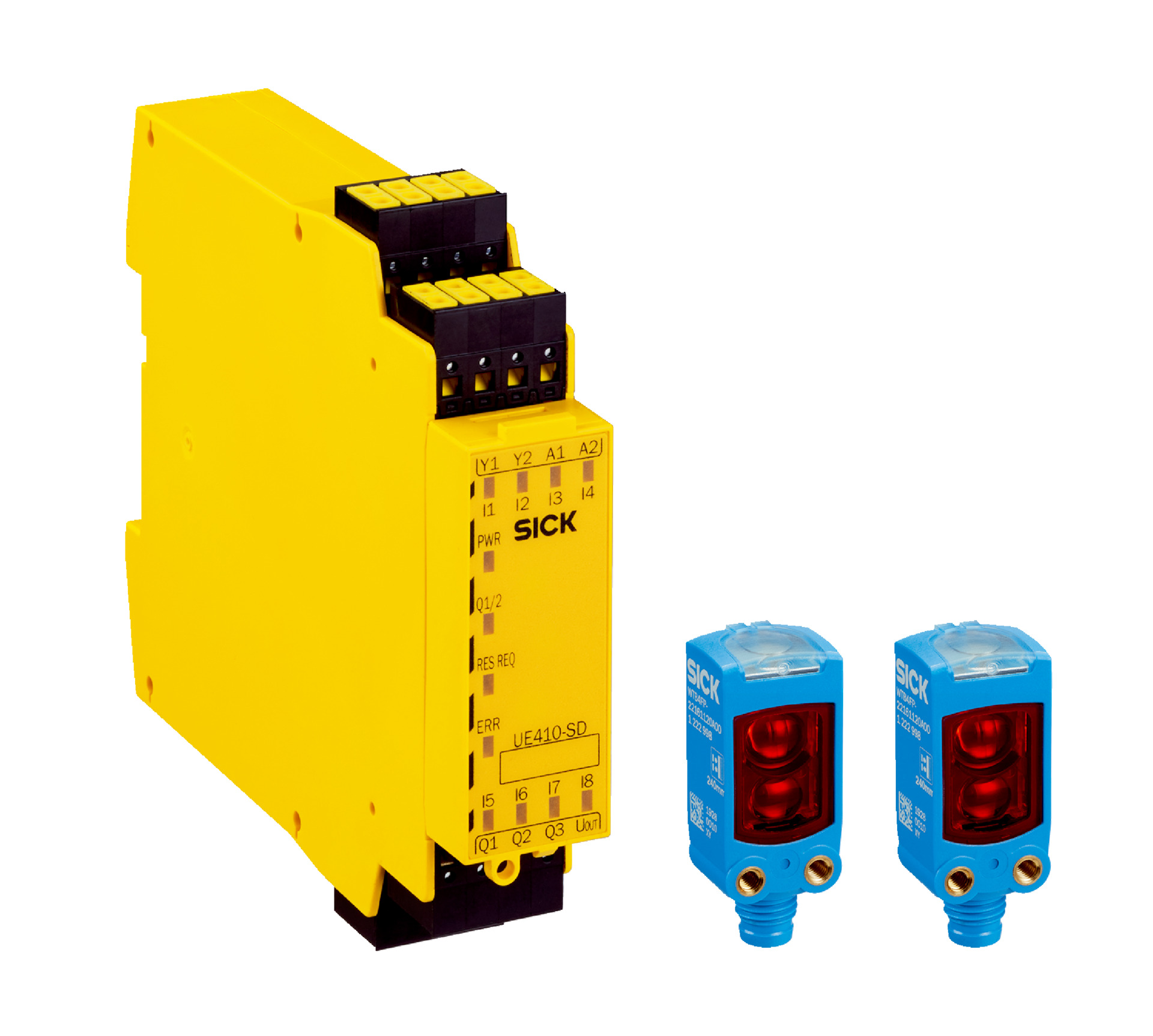

- Includes UE410-SD safety controller and two WTB4F MultiPulse sensors
- IP20 rated safety controller and IP67 rated sensors
- Operating temperature range -25 °C to 55 °C for controller, -40 °C to 60 °C for sensors
- Response time of overall safety system ≤ 160 ms
- Hard wired configuration with spring terminal connections
- TÜV and EC-Type-Examination approvals
Professional Installation Requirements
- Installation should be performed by qualified safety system professionals or certified electricians to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety monitoring and control
- Machine safeguarding in manufacturing
- Automation safety systems requiring reliable presence detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- High reliability reduces risk of system failures and associated downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SYS/SGD-W4100010001BX4 safety controller system is available for immediate purchase, ideal for industrial safety and automation applications.
