SICK Safety Controller System | Category 3 Compliance | PL d Performance Level | IP67 Rated Sensors | by SICK
The SICK Safety Controller System is designed for industrial safety monitoring and control, featuring Category 3 compliance and a PL d performance level. With a diagnostic coverage of 80% and a mean time to dangerous failure (MTTFD) of 250 years, this system ensures reliable machine safeguarding in manufacturing environments. Ideal for automation safety systems, it includes the UE410-SD safety controller and two IP67 rated MultiPulse sensors for optimal presence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety category: Category 3 (EN ISO 13849-1)
- Performance level: PL d (EN ISO 13849-1)
- Performance class: SRS/SRSS D (IEC TS 62998-1)
- PFHD: 1.0 * 10^-7
- Diagnostic coverage: 80%
- MTTFD: 250 years
- Number of connectable sensor pairs: 1 or 2
- Connection type: Screw-type terminals
- Sensor pulse rate: 10 Hz
- Supply voltage: 24 V DC (19.2 V ... 30 V)
- Protection class: III (EN 50178)
- Enclosure rating: IP20 for controller, IP67 for sensors
- Operating temperature: Controller –25 °C to 55 °C, Sensors –40 °C to +60 °C
- Response time: ≤ 160 ms overall system, ≤ 100 ms sensors
- Sensor type: Visible red light, 650 nm wavelength
- Light spot size: Ø 7 mm at 50 mm distance
- Connection type for sensors: Connector M8, 3-pin
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Natural protection due to the material
- Category 3 safety-related parameters compliant with EN ISO 13849-1
- Performance level PL d and performance class SRS/SRSS D
- Mean time to dangerous failure (MTTFD) of 250 years
- Diagnostic coverage of 80%
- Pulse rate of sensors at 10 Hz
- Response time of overall safety system ≤ 160 ms
- IP67 rated MultiPulse photoelectric proximity sensors
- Operating temperature range from –40 °C to +60 °C for sensors
- Hard wired configuration with screw-type terminals

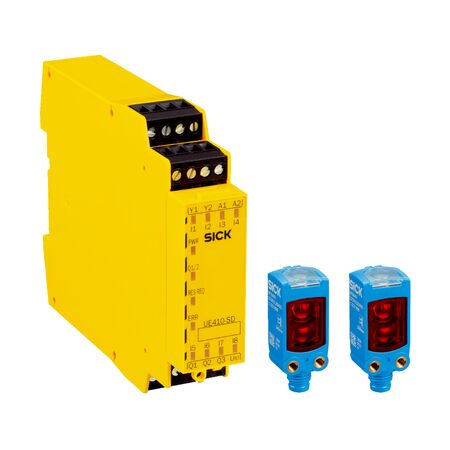

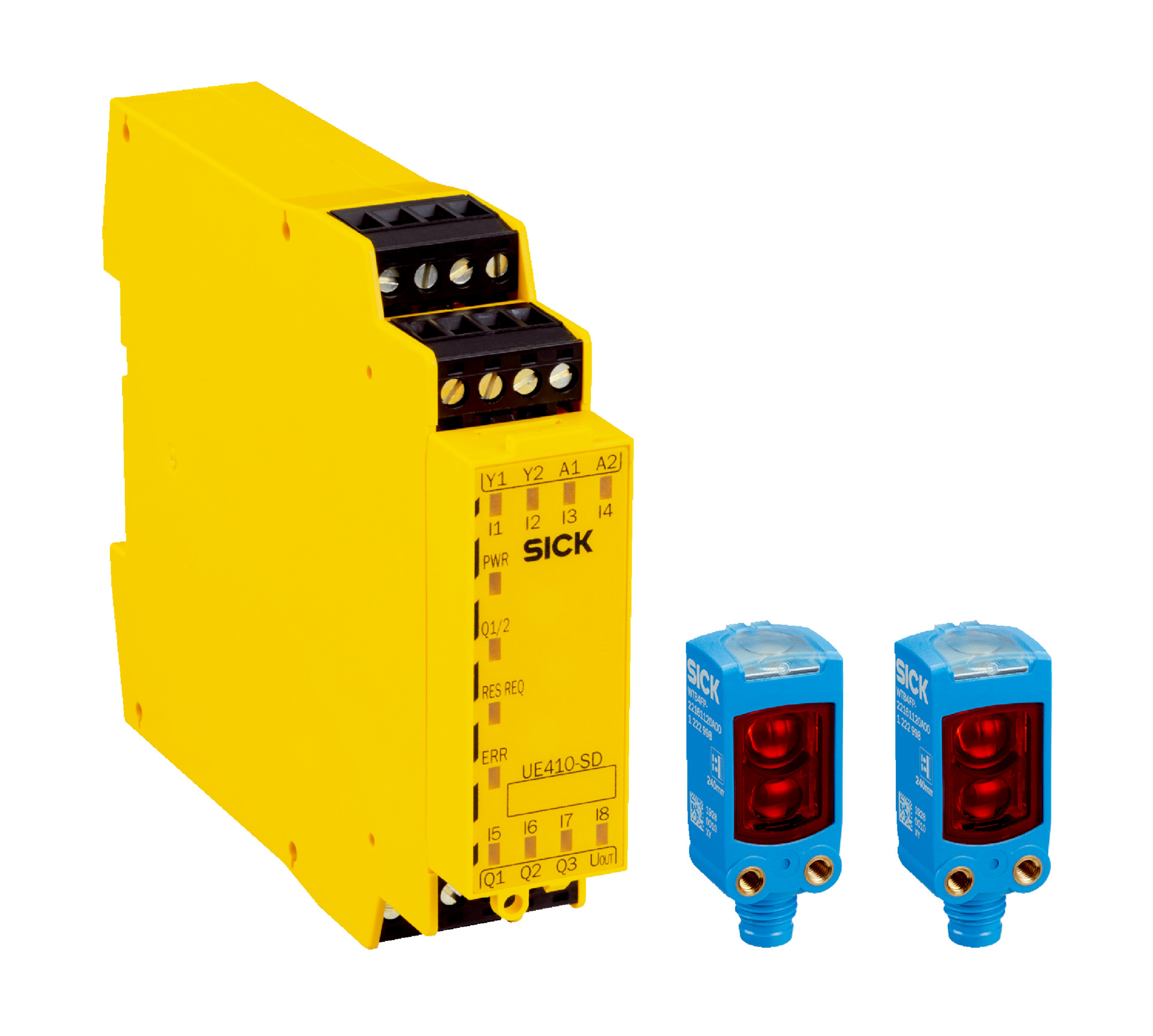

- Includes UE410-SD safety controller and two WTB4F MultiPulse sensors
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system professionals or certified electricians to ensure compliance with safety standards and optimal system performance.
Applications
- Industrial safety monitoring and control
- Machine safeguarding in manufacturing environments
- Automation safety systems requiring reliable presence detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Energy-efficient operation with low power consumption
- High reliability reduces waste from system failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SYS/SGD-W4100010001BX3 safety system is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
