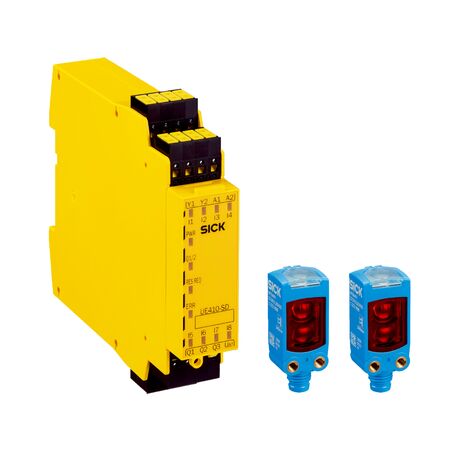

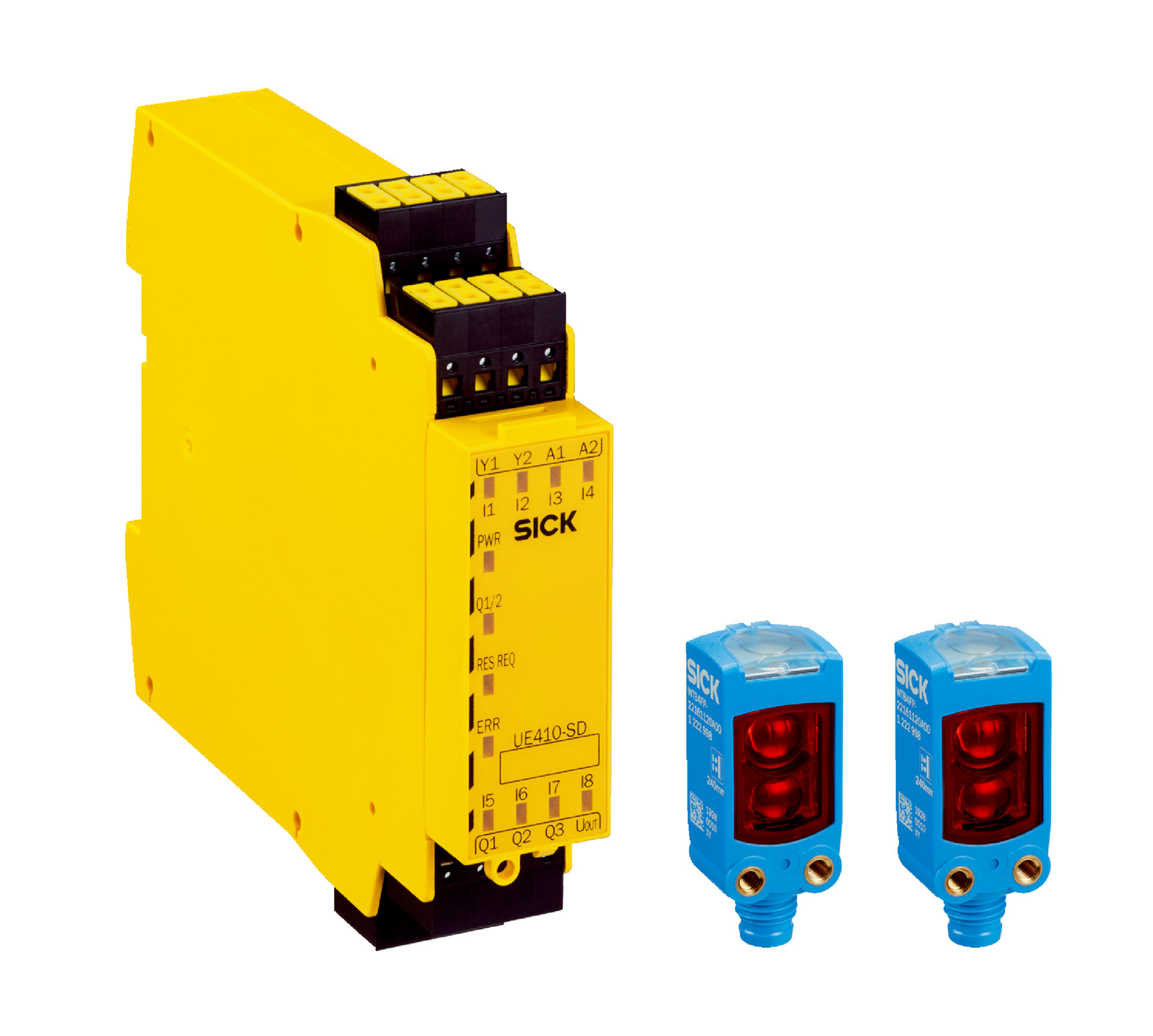

SICK Safety System SYS/SGD-W4150010002BX4 | Category 3 Safety | IP67 Rated Sensors | 250 Years MTTFD | by SICK
The SICK Safety System SYS/SGD-W4150010002BX4 is designed for industrial safety monitoring and machine safeguarding. With a Category 3 safety performance and IP67 rated sensors, it ensures reliable detection zones and a mean time to dangerous failure (MTTFD) of 250 years. Ideal for automation safety systems, this system operates efficiently in temperatures ranging from -40 °C to +60 °C, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety category: Category 3 (EN ISO 13849-1)
- Performance level: PL d (EN ISO 13849-1)
- Performance class: D (IEC TS 62998-1)
- PFHD: 1.0 * 10^-7
- Diagnostic coverage: 80%
- MTTFD: 250 years
- Supply voltage: 24 V DC (19.2 V ... 30 V)
- Sensor pulse frequency: 10 Hz
- Response time sensors: ≤ 100 ms
- Response time overall system: ≤ 160 ms
- Sensor wavelength: 650 nm visible red light
- Sensor light spot size: Ø 7 mm at 50 mm distance
- Connection type: Spring terminals for controller, M8 3-pin connector for sensors
- Protection class: III (EN 50178)
- Enclosure rating: IP20 for controller, IP67 for sensors
- Operating temperature: -25 °C to 55 °C (controller), -40 °C to +60 °C (sensors)
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Natural protection due to the material
- Box variant safeguard detector
- Detection zone from 30 mm to 150 mm
- Category 3 safety performance (EN ISO 13849-1)
- Performance level PL d with performance class D
- Mean time to dangerous failure (MTTFD) of 250 years
- Diagnostic coverage of 80%
- Response time of overall safety system ≤ 160 ms
- IP20 rated safety controller and IP67 rated sensors
- Operating temperature range from -40 °C to +60 °C for sensors
Professional Installation Requirements
- Installation should be performed by qualified safety system professionals or certified electricians to ensure compliance with safety standards and proper system configuration.
Applications
- Industrial safety monitoring and protection
- Machine safeguarding in manufacturing environments
- Automation safety systems requiring reliable detection zones
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SYS/SGD-W4150010002BX4 Safety System is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
