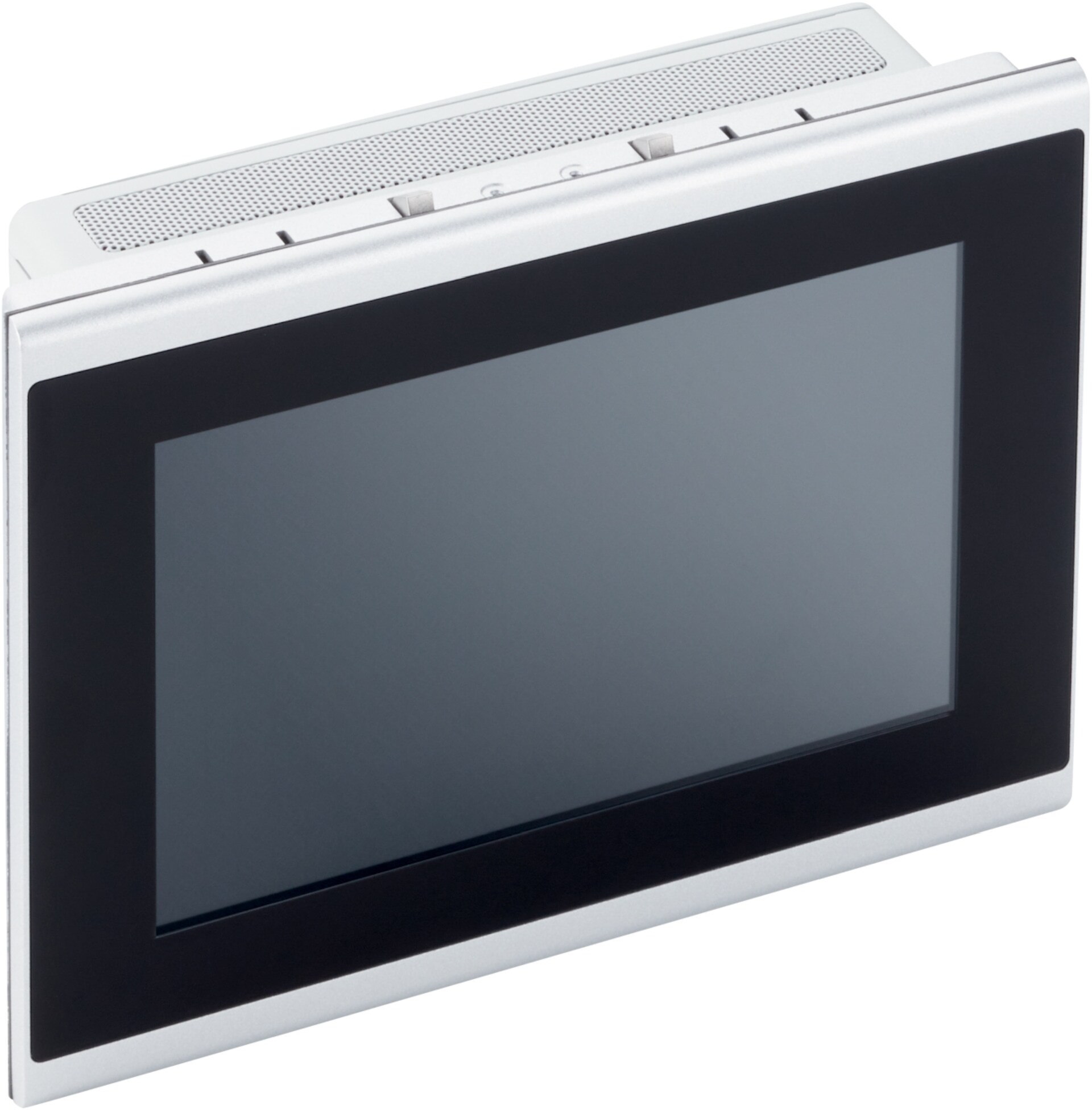

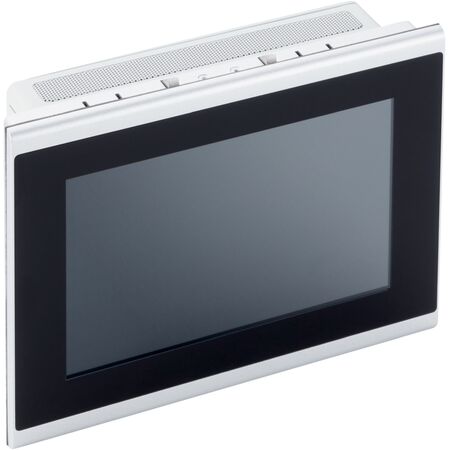

SICK SID71 Programmable Controller | Quad-core 1.6 GHz | 7-inch Multi-Touch Display | IP66 Rated | by SICK
The SICK SID71 Programmable Controller features a powerful quad-core 1.6 GHz Arm Cortex-A53 processor and a vibrant 7-inch projective capacitive multi-touch TFT display. With an impressive resolution of 800 dpi x 480 dpi and an IP66 rated front enclosure, this device is perfect for industrial automation and control applications, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: Quad-core 1.6 GHz Arm Cortex-A53
- RAM and Storage: 4 GB RAM, 8 GB eMMC Flash
- Display: 7-inch, 800 dpi x 480 dpi resolution, 24-bit color
- Brightness: Typical 500 cd/m²
- Backlight Service Life: Typical 50,000 hours
- Viewing Angle: 89° (UDRL)
- Touch Technology: Projective capacitive multi-touch TFT
- Supply Voltage: 18 V DC to 32 V DC
- Power Consumption: Maximum 14.71 W
- Enclosure Rating: Front IP66, Rear IP20
- Interfaces: 1x Ethernet RJ-45, 1x USB-C 3.0, 2x USB-A 2.0, 1x COM (RS-232/422/485), 1x microSD slot
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -25°C to +60°C
- Relative Humidity: 5% to 85% non-condensing
- Operating System: Linux Yocto
- Dimensions (H x L x W): 146mm x 51mm x 202mm
- Weight: 1.3 kg
Key Features
- Quad-core 1.6 GHz Arm Cortex-A53 processor
- 7-inch projective capacitive multi-touch TFT display
- Display resolution of 800 dpi x 480 dpi with 24-bit color depth
- Brightness typically 500 cd/m² with 50,000 hours backlight service life
- IP66 rated front enclosure for dust and water protection
- Multiple interfaces including Ethernet, USB (3 ports), Serial COM (RS-232/422/485), and microSD slot
- Operating temperature range from -20°C to +50°C
- Linux Yocto operating system
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with electrical standards and proper integration into industrial systems.
Applications
- Industrial automation and control
- Programmable device applications requiring integrated web server
- Panel and VESA mounting environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient processor and display reduce power consumption
- Durable IP66 front enclosure extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SID71 Programmable Device is available for immediate purchase, ideal for industrial automation and control applications requiring a robust multi-touch interface.
