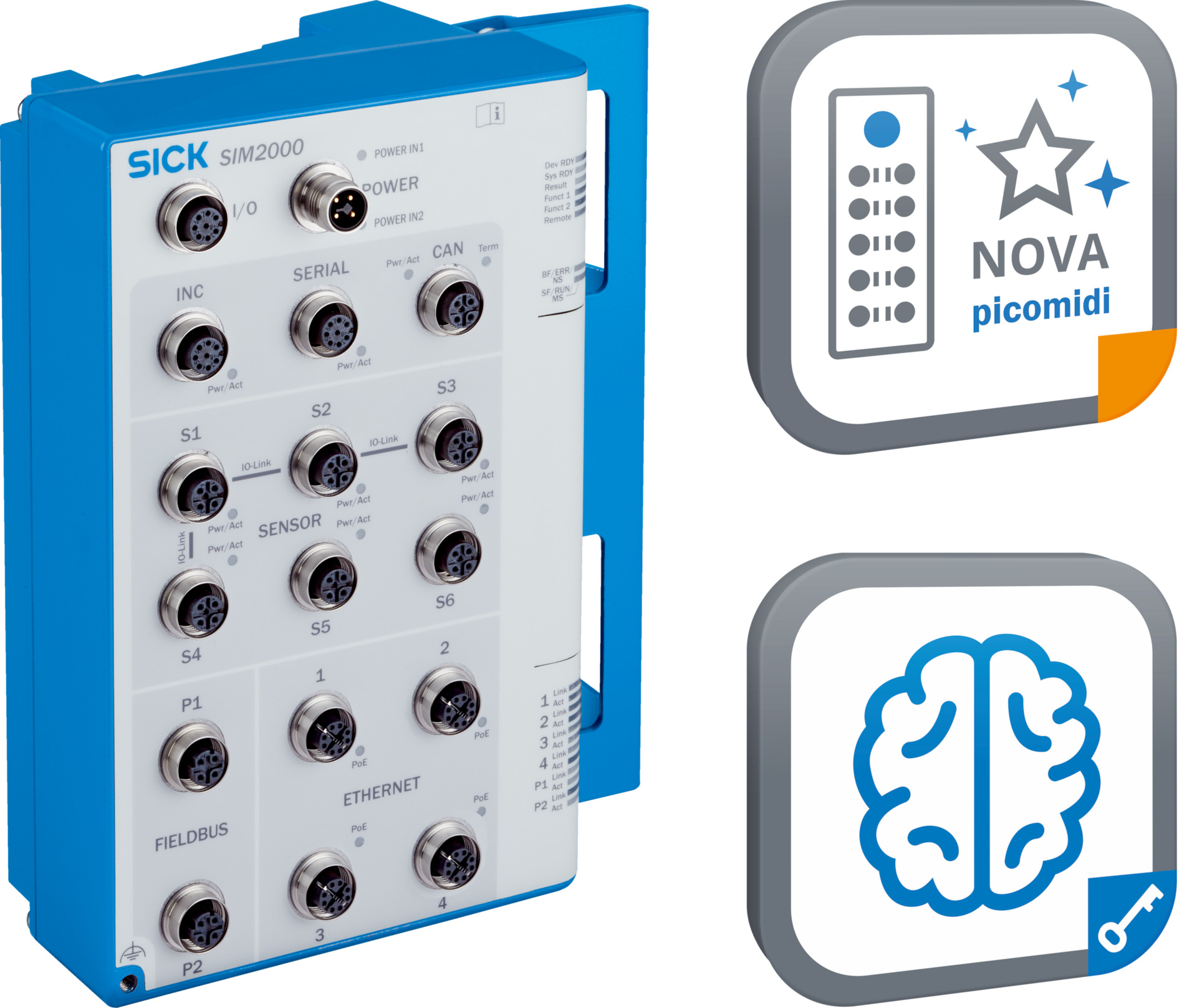

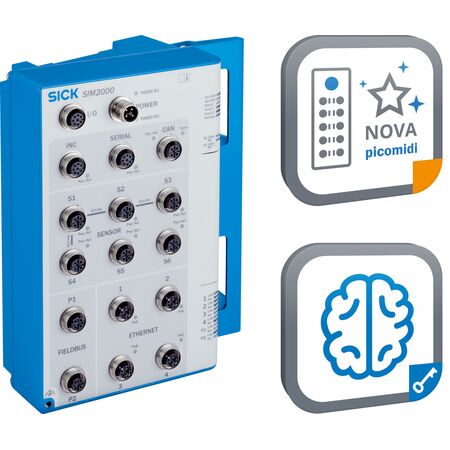

SICK SIM2000-2AX4G10 Nova picomidi II | 2D Snapshot Technology | Configurable & Programmable | Intelligent Inspection License | by SICK
The SICK SIM2000-2AX4G10 Nova picomidi II is a cutting-edge vision sensor featuring 2D snapshot technology for precise image capture. Configurable and programmable with the SICK Nova Tool, it supports picoCam2 and midiCam2 products, making it ideal for industrial automation and quality control in manufacturing. With extensive connectivity options and an Intelligent Inspection License included, this sensor enhances production accuracy and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Product category: Configurable, programmable
- Supported products: picoCam2, midiCam2
- License included: Intelligent Inspection License without time limit
- Connections: Multiple M12 connectors for I/O, Power, SERIAL, INC, Fieldbus, CAN, SENSOR, Ethernet with PoE, USB Micro-B
- Power consumption: Typically 45 W
- Power output: 140 W total across all connections
- Output current: SENSOR S1-S4 ≤ 1 A, SENSOR S5-S6 ≤ 2.5 A, CAN ≤ 3.2 A, SERIAL ≤ 1 A, INC ≤ 0.5 A, I/O ≤ 500 mA
- Electrical safety: EN 61010
- Interfaces: Ethernet (4 ports), PROFINET (2 ports), EtherNet/IP™ (2 ports), supporting TCP/IP, FTP, OPC UA, MQTT
- Data transmission rate: 10/100/1,000/2,500 Mbit/s
- EMC compliance: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Languages supported: English, German, French, Italian, Spanish, Japanese, Korean, Chinese
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2 kg
Key Features
- 2D snapshot technology for precise image capture
- Configurable and programmable with SICK Nova Tool
- Supports picoCam2 and midiCam2 products
- Includes Intelligent Inspection License with no time limit
- Multiple language support including English, German, French, Italian, Spanish, Japanese, Korean, Chinese
- Extensive connectivity options including Ethernet with PoE, USB, Fieldbus, CAN, SERIAL, and SENSOR ports
- Power consumption typically 45 W with total power output of 140 W
- Electrical safety compliant with EN 61010
- Supports GigE machine vision/GenICAM and multiple fieldbus protocols (PROFINET, EtherNet/IP™)
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Industrial automation and inspection
- Quality control in manufacturing
- Machine vision for production lines
- Customizable inspection tasks with programmable tools
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient industrial automation reducing waste and improving production accuracy
- Energy-efficient design with typical power consumption of 45 W
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SIM2000-2AX4G10 Nova picomidi II is available for immediate purchase, ideal for industrial automation and inspection applications.
