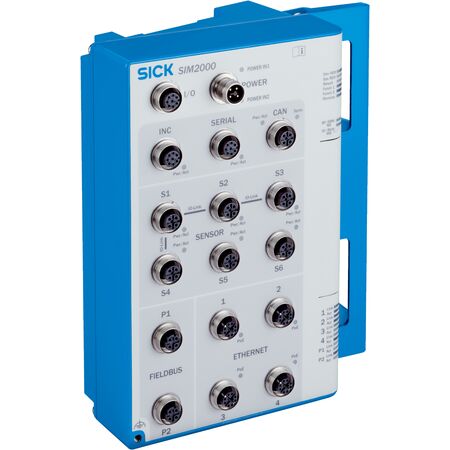

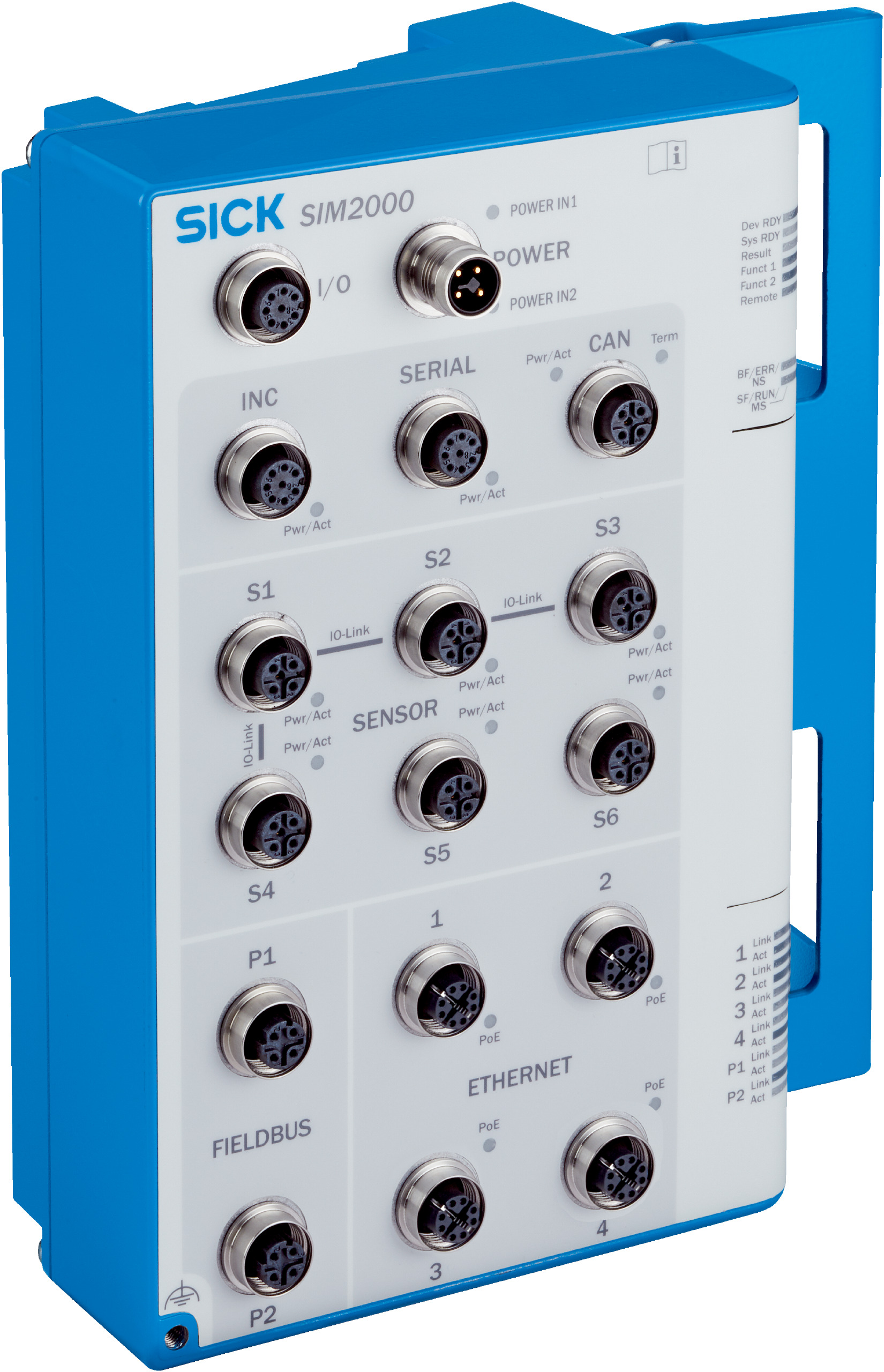

SICK SIM2000-2P04G10 Sensor Interface | 8-Core ARM CPU | IP65 Rated | by SICK
The SICK SIM2000-2P04G10 Sensor Interface features an 8-core ARM Cortex-A72 CPU and 4 GB DDR4 RAM, making it perfect for high-performance industrial automation and machine vision applications. With multiple connection options including Ethernet with PoE and USB, this robust IP65-rated device ensures reliable sensor integration and optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator
- Memory: 4 GB DDR4 RAM, 7 GB eMMC flash memory (5 GB available for applications)
- Programming Software: SICK AppStudio, programmable within SICK AppSpace environment
- I/O Handling: FPGA for I/O handling, dedicated fieldbus controller
- Connections: Multiple M12 connectors for power, serial, incremental, fieldbus, CAN, sensors, Ethernet with PoE, USB
- Power Supply: 24 V DC ±10%
- Power Consumption: Typically 45 W without connected sensors
- Power Output: 140 W total across all connections
- Enclosure Rating: IP65
- Protection Class: III
- Electrical Safety: EN 61010
- Housing Material: Aluminum die cast
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: -20 °C to +70 °C
- EMC Compliance: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Dimensions (H x L x W): 196mm x 176mm x 83mm
- Weight: 2 kg
Key Features
- 8-core ARM Cortex-A72 CPU with NEON accelerator for high processing power
- 4 GB DDR4 RAM and 7 GB eMMC flash memory (5 GB available for applications)
- Supports programming via SICK AppStudio and SICK AppSpace environment
- FPGA for I/O handling and dedicated fieldbus controller
- Multiple connection options including Ethernet with PoE, USB, CAN, Fieldbus, Serial, Incremental
- IP65 rated aluminum die cast housing for robust protection
- Wide range of digital inputs/outputs configurable up to 30 kHz
- Supports various fieldbus protocols including PROFINET, EtherNet/IP™, EtherCAT®, IO-Link
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-3
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial sensor systems and network protocols to ensure safety and optimal performance.
Applications
- Integration with 2D and 3D cameras from SICK or GigE machine vision standard
- Use with 2D and 3D LiDAR sensors
- Image-based code reading and barcode scanning
- RFID read/write device integration
- Displacement measurement and encoder interfacing
- Photoelectric sensor applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient sensor integration reducing system complexity and energy consumption
- Supports advanced machine vision and sensor technologies that can optimize industrial processes and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SIM2000-2P04G10 is available for immediate purchase, ideal for industrial automation, machine vision, and sensor integration applications.
