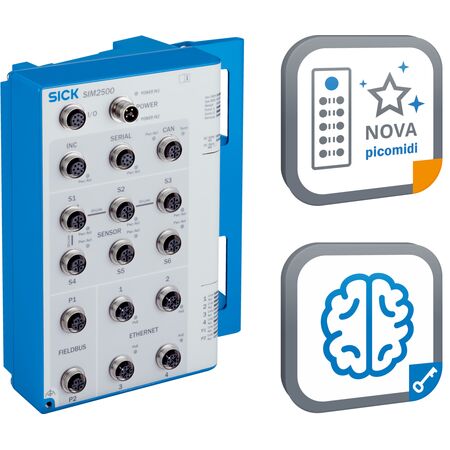

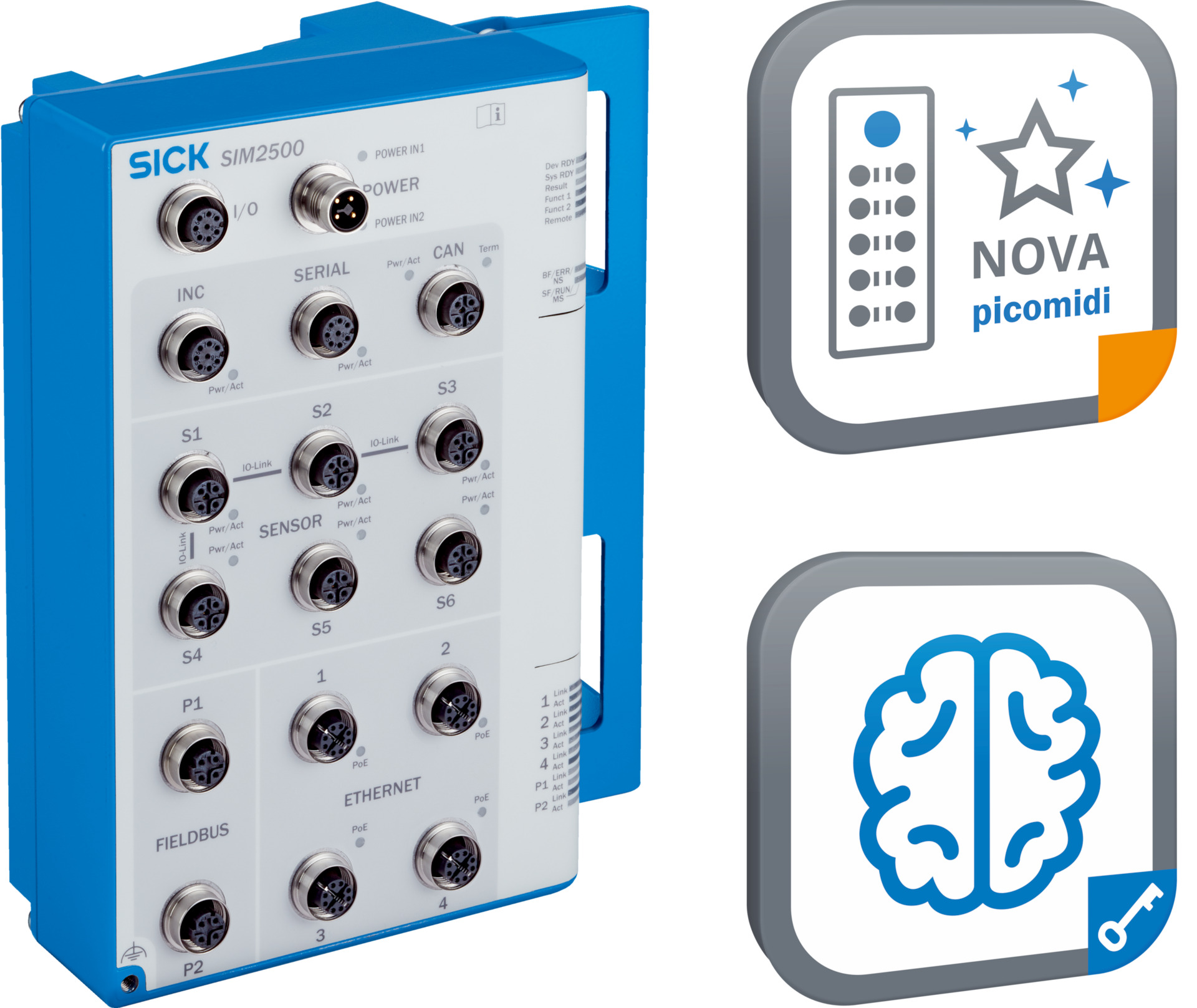

SICK SIM2500-2AX3G10 Nova picomidi II | 2D Snapshot Technology | 8-Core ARM CPU | IP65 Rated | by SICK
The SICK SIM2500-2AX3G10 Nova picomidi II is a cutting-edge vision sensor featuring 2D snapshot technology and an 8-core ARM Cortex-A72 CPU for high-quality image capture. Ideal for industrial automation and inspection, this programmable sensor supports multiple connectivity options and is designed for robust performance in demanding environments, ensuring quality control and object detection with ease.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Power supply: 24 V DC ± 10%
- Power consumption: Typically 45 W
- Power output: 140 W total across all connections
- Connectivity: 4x Ethernet with PoE (M12, 8-pin), USB Micro-B, CAN, SERIAL, Fieldbus
- Digital I/O: Configurable inputs/outputs with max frequency up to 30 kHz
- Enclosure rating: IP65
- Operating temperature: 0 °C to +50 °C
- EMC compliance: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Shock load: IEC 60068-2-27:2008
- Memory: Optional industry-grade microSD card up to 32 GB
- Dimensions (H x L x W): 196mm x 176mm x 83mm
- Weight: 2 kg
Key Features
- 2D snapshot technology for high-quality image capture
- Configurable and programmable with SICK Nova Tool plug-in
- 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor for image processing
- Supports multiple languages including English, German, French, Italian, Spanish, Japanese, Korean, and Chinese
- Multiple connectivity options including Ethernet with PoE, USB, CAN, SERIAL, and Fieldbus
- IP65 rated enclosure for robust industrial use
- Includes Intelligent Inspection License with no time limit
- Supports HALCON image processing library for customer development
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration into industrial systems.
Applications
- Industrial automation and inspection
- Quality control in manufacturing
- Object detection and identification
- Machine vision applications requiring programmable 2D snapshot technology
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient design reduces power consumption during operation
- Supports digital inspection reducing waste and improving manufacturing quality
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SIM2500-2AX3G10 Nova picomidi II is available for immediate purchase, ideal for industrial automation and inspection applications.
