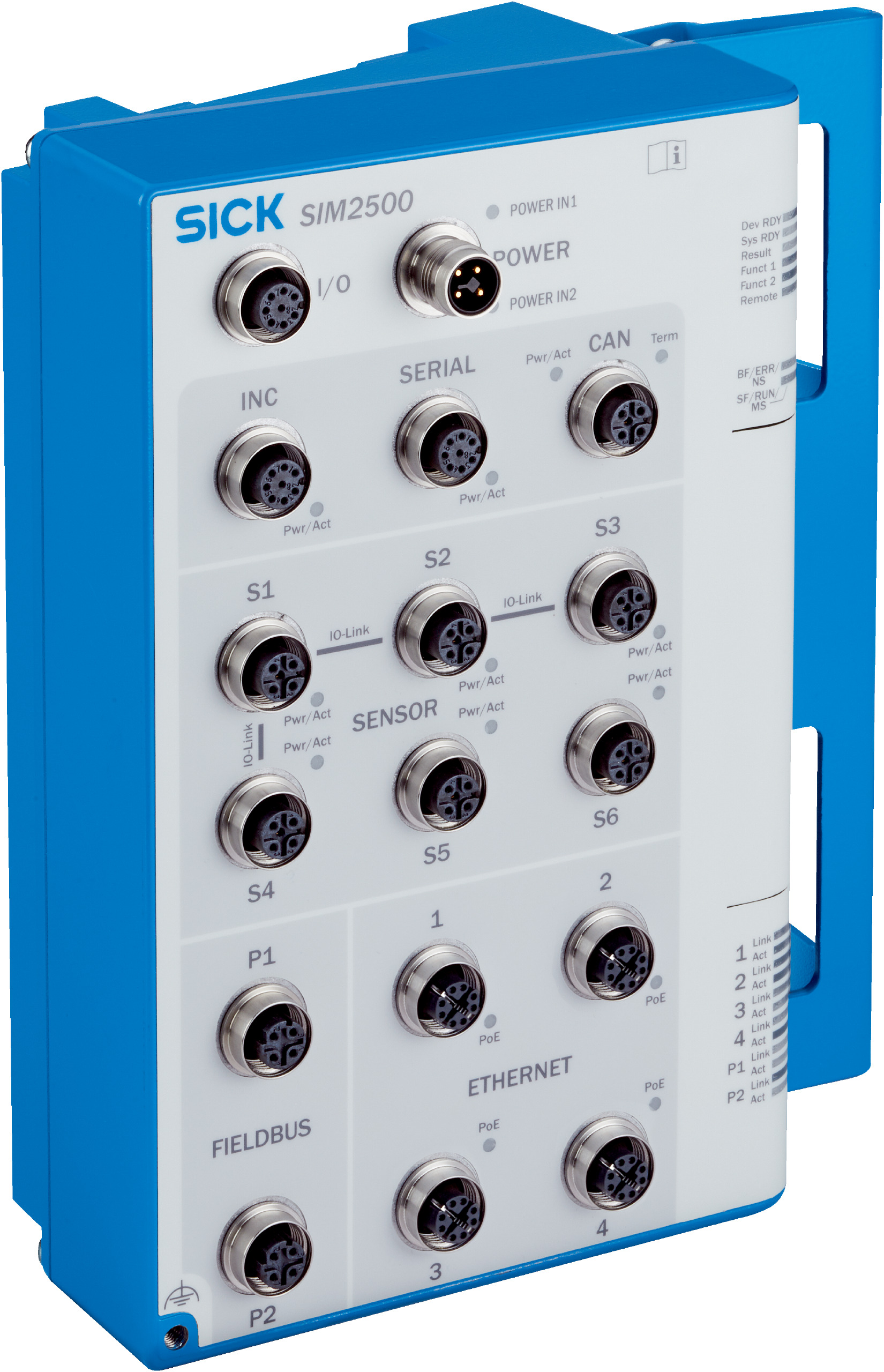

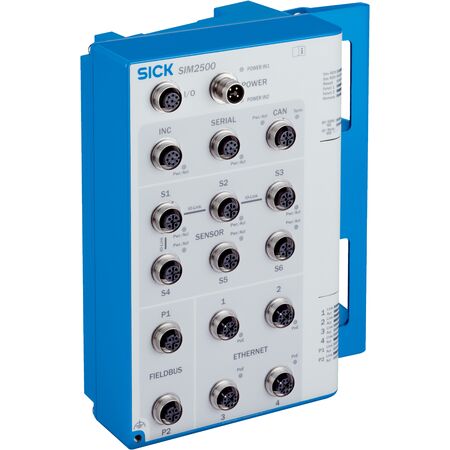

SICK SIM2500-2P03G10 Vision Interface | 8-Core ARM CPU | IP65 Enclosure | by SICK
The SICK SIM2500-2P03G10 Vision Interface features an 8-core ARM Cortex-A72 CPU, making it perfect for industrial automation and machine vision applications. With 4 GB DDR4 RAM and extensive connectivity options including Ethernet with PoE, USB, and CAN, it supports 2D and 3D camera integration, LiDAR sensors, and more. Built to withstand harsh environments with an IP65 enclosure, this device is designed for professionals seeking reliable performance in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor
- Memory: 4 GB DDR4 RAM, 7 GB eMMC flash (5 GB available for applications)
- Power supply: 24 V DC ±10%
- Power consumption: Typically 45 W without connected sensors
- Power output: 140 W total across all connections
- I/O current ratings: SENSOR S1-S4 ≤1 A, SENSOR S5-S6 ≤3.2 A (with power gate-API), CAN ≤1 A, SERIAL ≤0.5 A, INC ≤500 mA, I/O ≤500 mA
- Connectivity: 4x Ethernet with PoE (M12, 8-pin), USB 2.0 Micro-B, CAN, Serial RS-232/422/485, PROFINET, EtherNet/IP, EtherCAT, IO-Link
- Enclosure rating: IP65
- Housing: Aluminum die cast, light blue (RAL 5012)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC compliance: IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 / IEC 61000-6-3:2020
- Electrical safety: EN 61010
- Dimensions (H x L x W): 196mm x 176mm x 83mm
- Weight: 2 kg
Key Features
- 8-core ARM Cortex-A72 CPU with NEON accelerator and FPGA co-processor for image processing
- Supports 2D and 3D cameras, LiDAR sensors, barcode scanners, RFID devices, and encoders
- 4 GB DDR4 RAM and 7 GB eMMC flash memory (5 GB available for applications)
- Programmable via SICK AppStudio within the SICK AppSpace environment
- Includes SICK algorithm API and HALCON image processing library
- FPGA for I/O handling and dedicated fieldbus controller
- Multiple I/O and communication interfaces including Ethernet with PoE, USB, CAN, Serial, PROFINET, EtherNet/IP, EtherCAT, and IO-Link
- Enclosure rated IP65 with aluminum die cast housing
- Electrical safety compliant with EN 61010
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial automation and electrical safety standards.
Applications
- Industrial automation and machine vision
- 2D and 3D camera integration
- LiDAR sensor data processing
- Barcode and image-based code reading
- RFID read/write operations
- Displacement measurement and encoder interfacing
- Photoelectric sensor integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient machine vision and sensor integration to optimize industrial processes and reduce waste
- Enables precise automation reducing energy consumption and material usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SIM2500-2P03G10 is available for immediate purchase, ideal for industrial automation and machine vision applications.
