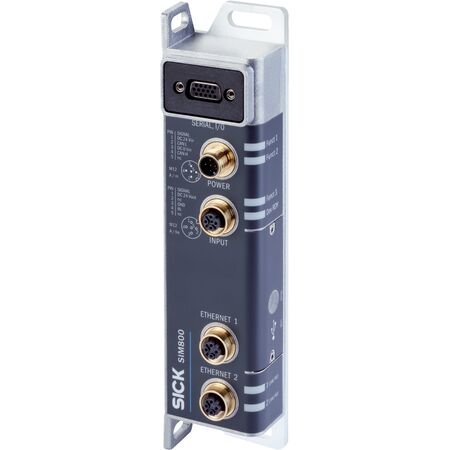

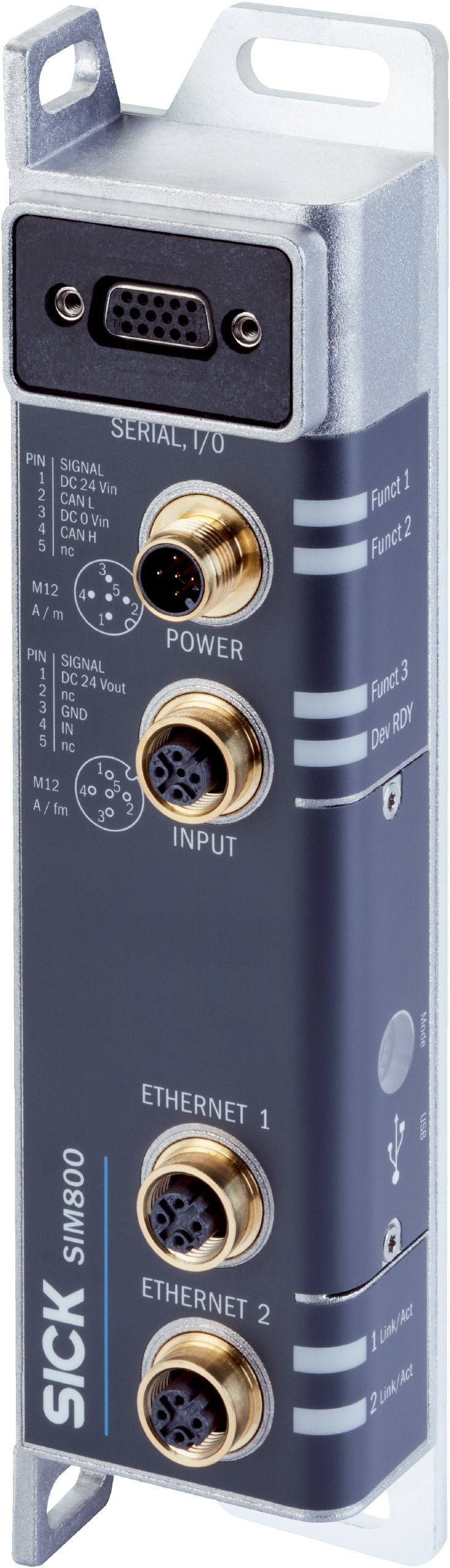

SICK SIM800-000 Programmable Data Recorder | IP65 Rated | Dual-core Arm® Cortex® Processors | 512 MB RAM & 5 GB Flash | by SICK
The SICK SIM800-000 programmable data recorder is designed for industrial applications, featuring dual-core Arm® Cortex® processors, 512 MB RAM, and 5 GB flash memory. With an IP65 rated aluminum housing, it ensures durability in harsh environments. Ideal for data recording, evaluation, and archiving, this device supports multiple connection options including Ethernet and RS-232, making it perfect for integration with various sensors and devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: Single-core 64-bit Arm® Cortex®-A53 and Dual-core Arm® Cortex®-R5F
- Memory: 512 MB RAM, 5 GB flash memory
- Power supply: 10 V DC to 30 V DC
- Power consumption: 5 W without connected sensor
- Output current: Up to 2 A for voltage supply, 100 mA for digital outputs
- Connections: M12 5-pin plug (power), 15-pin D-Sub HD socket (serial I/O), M12 4-pin female connectors (Ethernet)
- Enclosure rating: IP65
- Housing material: Aluminum
- Operating temperature: -35 °C to +50 °C
- Data transmission: Ethernet TCP/IP, RS-232 serial, USB 2.0
- Digital I/O: 2 digital inputs and 2 digital outputs on SERIAL, I/O connection; 1 digital input on INPUT connection
- Electromagnetic compatibility: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Shock load: IEC 60068-2-27:2008-02
- Vibration resistance: IEC 60068-2-6:2007-12
- Dimensions (H x L x W): 40.7mm x 207mm x 49.5mm
- Weight: 0.36 kg
Key Features
- Single-core 64-bit Arm® Cortex®-A53 and Dual-core Arm® Cortex®-R5F processors
- 512 MB RAM and 5 GB flash memory
- Programmable within the SICK AppSpace environment using SICK AppStudio
- SICK algorithm API toolkit
- Multiple connection options including M12 plugs, D-Sub HD socket, Ethernet, and serial interfaces
- Power consumption of 5 W without connected sensor
- Enclosure rated IP65 with aluminum housing
- Supports Ethernet TCP/IP, RS-232 serial, and USB 2.0 interfaces
- Digital inputs and outputs for flexible integration
- Web server GUI and app management tools for configuration and firmware updates
- Operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial programmable devices and electrical safety standards.
Applications
- Data recording, evaluation, and archiving
- Integration with bar code scanners, photoelectric sensors, image-based code readers, and RFID read/write devices
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable IP65 rated aluminum housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK SIM800-000 programmable device is available for immediate purchase, ideal for industrial data recording, evaluation, and archiving applications.
