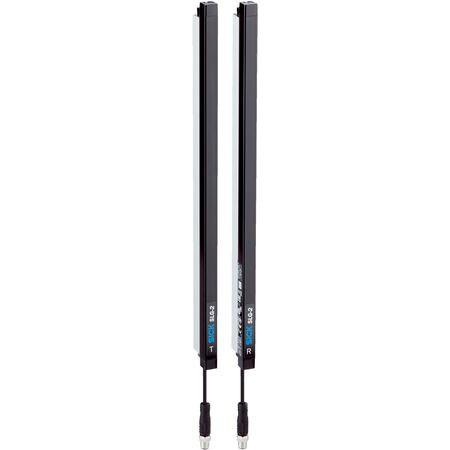

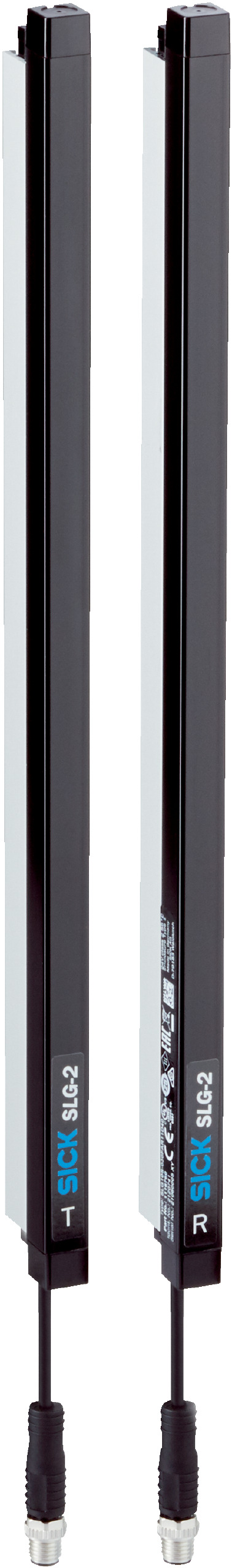

SICK SLG25S-240FAR21A00 Optical Sensor | 440mm to 4900mm Sensing Range | IP65 & IP67 Rated | by SICK
The SICK SLG25S-240FAR21A00 optical sensor is designed for industrial automation, featuring a sensing range from 440 mm to 4,900 mm and a detection height of 2,400 mm with 96 infrared LED beams. Ideal for safety monitoring and object detection in manufacturing processes, this robust sensor includes an IO-Link V1.1 interface for easy configuration and diagnostics, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 2400mm x 24mm x 12mm
- Weight: 2.96 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Functional sender/receiver principle
- Sensing range from 440 mm to 4,900 mm
- Detection height of 2,400 mm with 96 infrared LED beams
- Minimum detectable object size: 30 mm (parallel beam), ≥16.5 mm (3x cross beam)
- Optical synchronization with 2 beams
- IO-Link V1.1 interface for sensor configuration and Smart Task functions
- High protection rating IP65 and IP67
- Robust aluminum and plastic housing with PMMA front screen
- Fast response and scan times with auto teach-in feature
- Comprehensive diagnostics including hardware error, temperature warning, and communication status
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and measurement
- Safety and monitoring in manufacturing processes
- Material handling and logistics systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with an average service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with environmental regulations including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SLG25S-240FAR21A00 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
