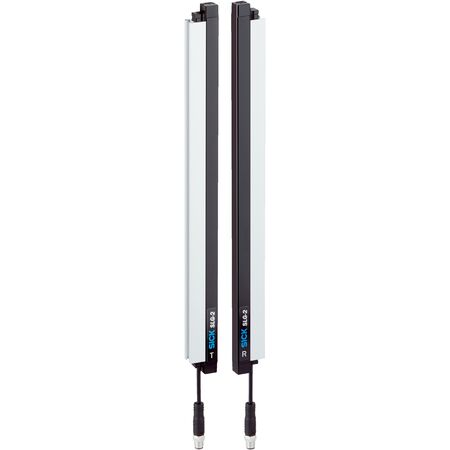

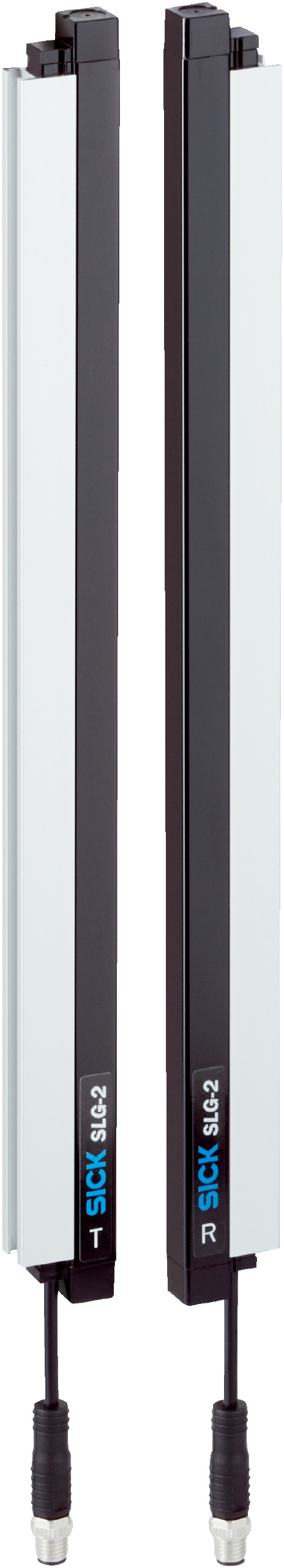

SICK SLG50S-020SDR11A00 Optical Sensor | 4 Infrared LED Beams | 500mm to 3800mm Sensing Range | IP65/IP67 Rated | by SICK
The SICK SLG50S-020SDR11A00 optical sensor features a sender/receiver functional principle with 4 infrared LED beams, providing a sensing range from 500 mm to 3,800 mm. Ideal for industrial automation and safety monitoring, this robust sensor is designed for harsh environments with an IP65/IP67 rating, ensuring reliable performance in manufacturing processes and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 199mm x 24mm x 12mm
- Weight: 0.76 kg
Key Features
- Sender/receiver functional principle with 4 infrared LED beams
- Sensing range from 500 mm to 3,800 mm depending on beam configuration
- Minimum detectable object size down to 29 mm² with 3 cross beams
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High ambient light immunity up to 150,000 lx indirect
- IP65 and IP67 rated enclosure for harsh environments
- Fast response times with max. 9.8 ms for parallel beam and 19.6 ms for cross beam
- Diagnostic functions including hardware error, temperature warning, and communication status
- Overcurrent, short-circuit, and reverse polarity protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact by lowering maintenance and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SLG50S-020SDR11A00 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
