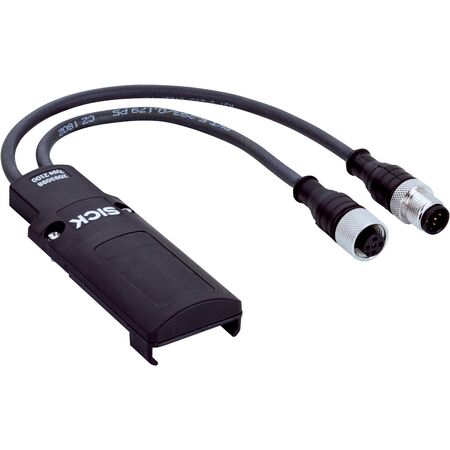

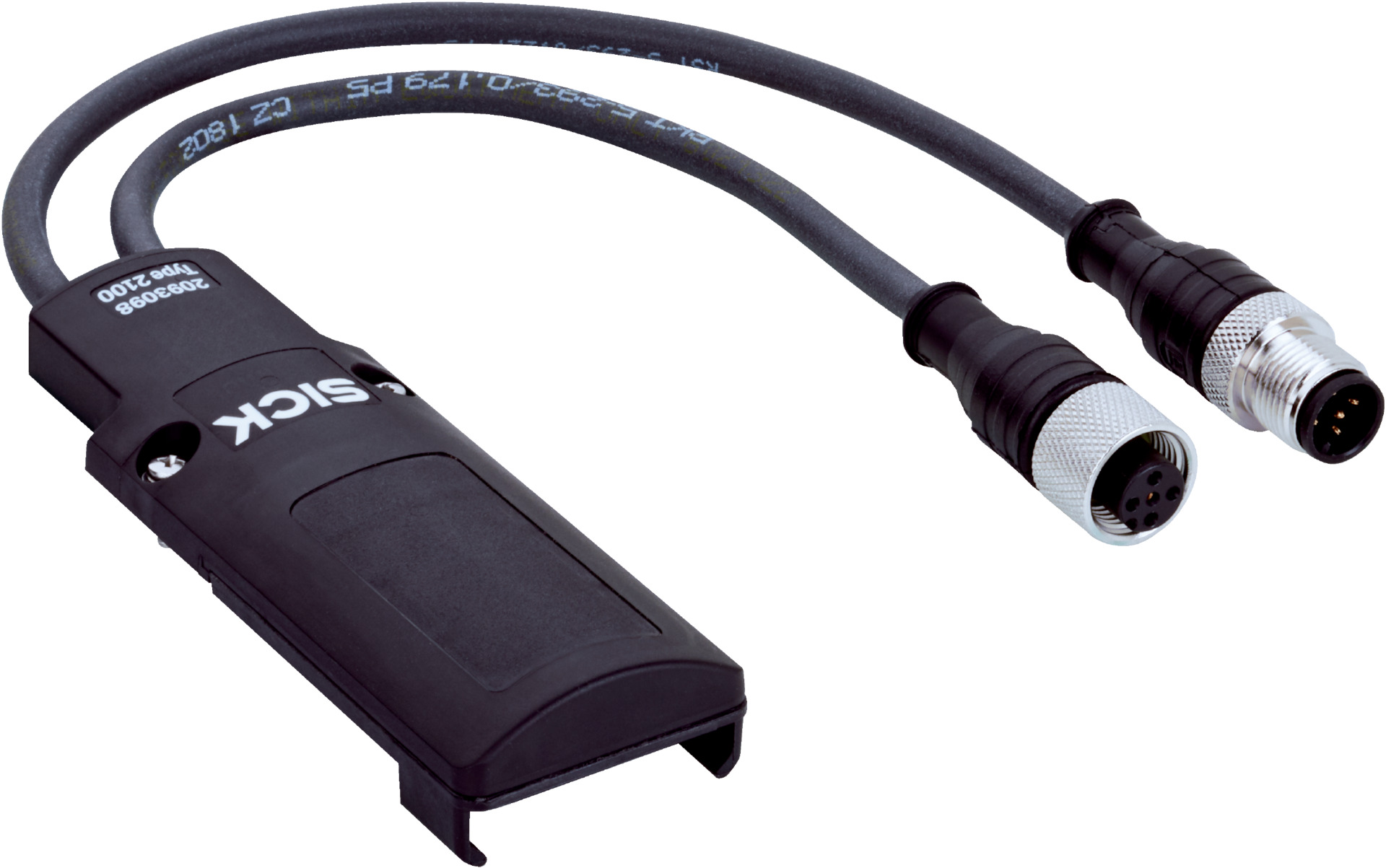

SICK SP2-2100 Safety Sensor Connector | M12 5-Pin | Smart Presence Detection | Automatic Calibration | by SICK
The SICK SP2-2100 safety sensor connector is designed for industrial automation safety systems, featuring a robust M12 5-pin connection and smart presence detection capabilities. Ideal for machine protection and monitoring, this connector ensures reliable operation with automatic calibration of protective field width, making it perfect for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Cable length system connection: 150 mm
- Cable diameter: 5 mm
- Dimensions (H x L x W): 30mm x 150mm x 50mm
- Weight: 0.3 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- System connection via Plug, M12, 5-pin
- Extension connection with Female connector M12, 5-pin
- IO-Link possible on the extension connection
- DIP switch configuration method
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading capability
- Smart presence detection and reduced resolution
- Dynamic protective field width during operation
- Sender with reduced scanning range
- Differentiation between person and material
- 2-signal muting and Smart Box Detection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical connections.
Applications
- Industrial automation safety systems
- Machine protection and monitoring
- Presence detection in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient operation through smart presence detection
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SP2-2100 safety sensor system plug is available for immediate purchase, ideal for industrial safety and automation applications.
